Cluster and Correspondence Analysis in R

Introduction

This tutorial introduces cluster analysis and correspondence analysis using R. Both methods belong to the broad family of unsupervised learning — techniques that discover structure in data without using a pre-defined outcome variable or group label. This distinguishes them from supervised methods such as regression or decision trees, which learn from labelled examples.

For linguists, unsupervised classification is relevant across many subfields: in historical linguistics, cluster analyses reveal genealogical relationships among languages or dialects based on shared features; in sociolinguistics, they identify groups of speakers with similar repertoires; in lexicology and semantics, they group words or constructions by distributional similarity; in corpus linguistics, they organise texts or registers by co-occurrence patterns.

The tutorial is aimed at intermediate users of R. It showcases how to perform and visualise the results of hierarchical cluster analysis, k-means clustering, and correspondence analysis, and how to validate and interpret the results. The aim is not to provide an exhaustive theoretical treatment but to give practical guidance grounded in linguistic examples. For deeper theoretical coverage, see Kassambara (2017) (highly recommended), King (2015), Kettenring (2006), Romesburg (2004), and Blashfield and Aldenderfer (1988).

Prerequisite Tutorials

Before working through this tutorial, you should be familiar with:

• Getting Started with R — R objects, basic syntax, RStudio
• Basic Concepts in Quantitative Research — data types, distributions, hypothesis testing
• Loading, Saving, and Generating Data in R — data import, file paths
• Handling Tables in R — data frames, dplyr, pipes

Learning Objectives

By the end of this tutorial you will be able to:

1. Explain what cluster analysis and correspondence analysis are, when they are appropriate, and how they differ from supervised methods
2. Choose an appropriate distance measure for numeric, ordinal, and nominal data
3. Assess whether a dataset is sufficiently structured to warrant clustering (Hopkins statistic)
4. Perform hierarchical cluster analysis, select a linkage method, and read a dendrogram

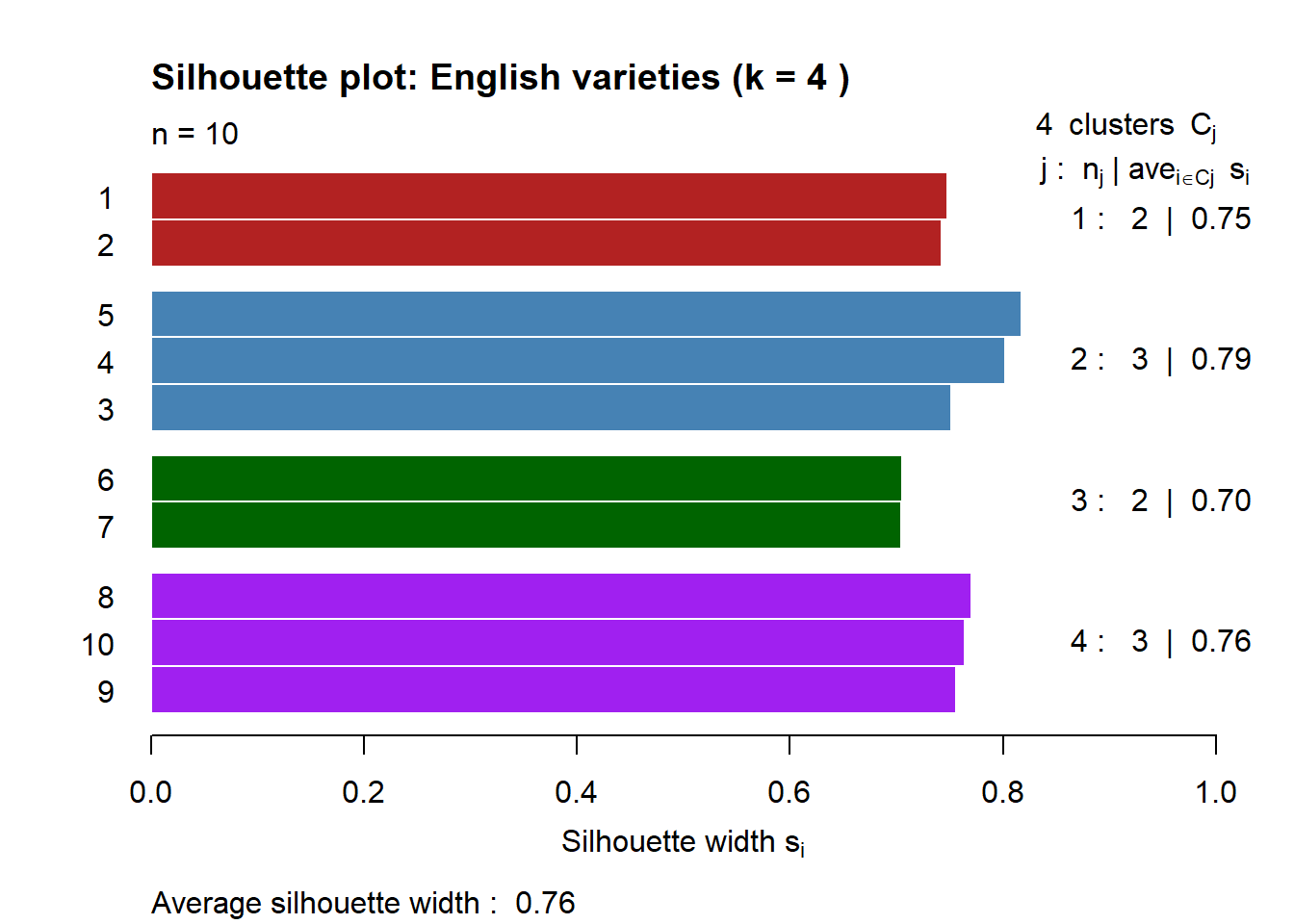

5. Determine the optimal number of clusters using silhouette widths and the elbow method
6. Validate a cluster solution using bootstrap resampling with pvclust
7. Perform k-means clustering and compare it with hierarchical clustering

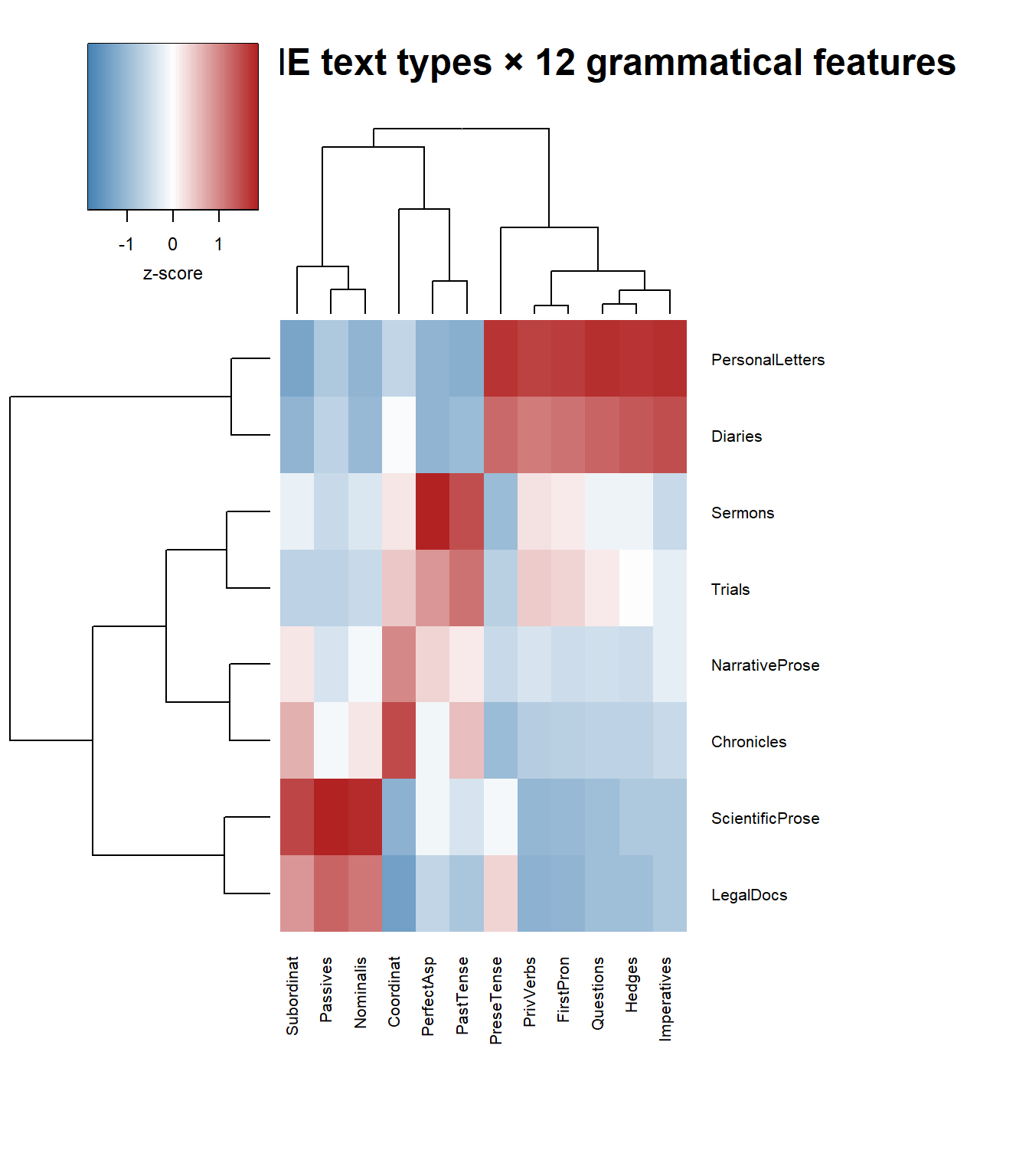

8. Visualise clustering results as dendrograms, heat maps, and silhouette plots
9. Perform correspondence analysis on a contingency table

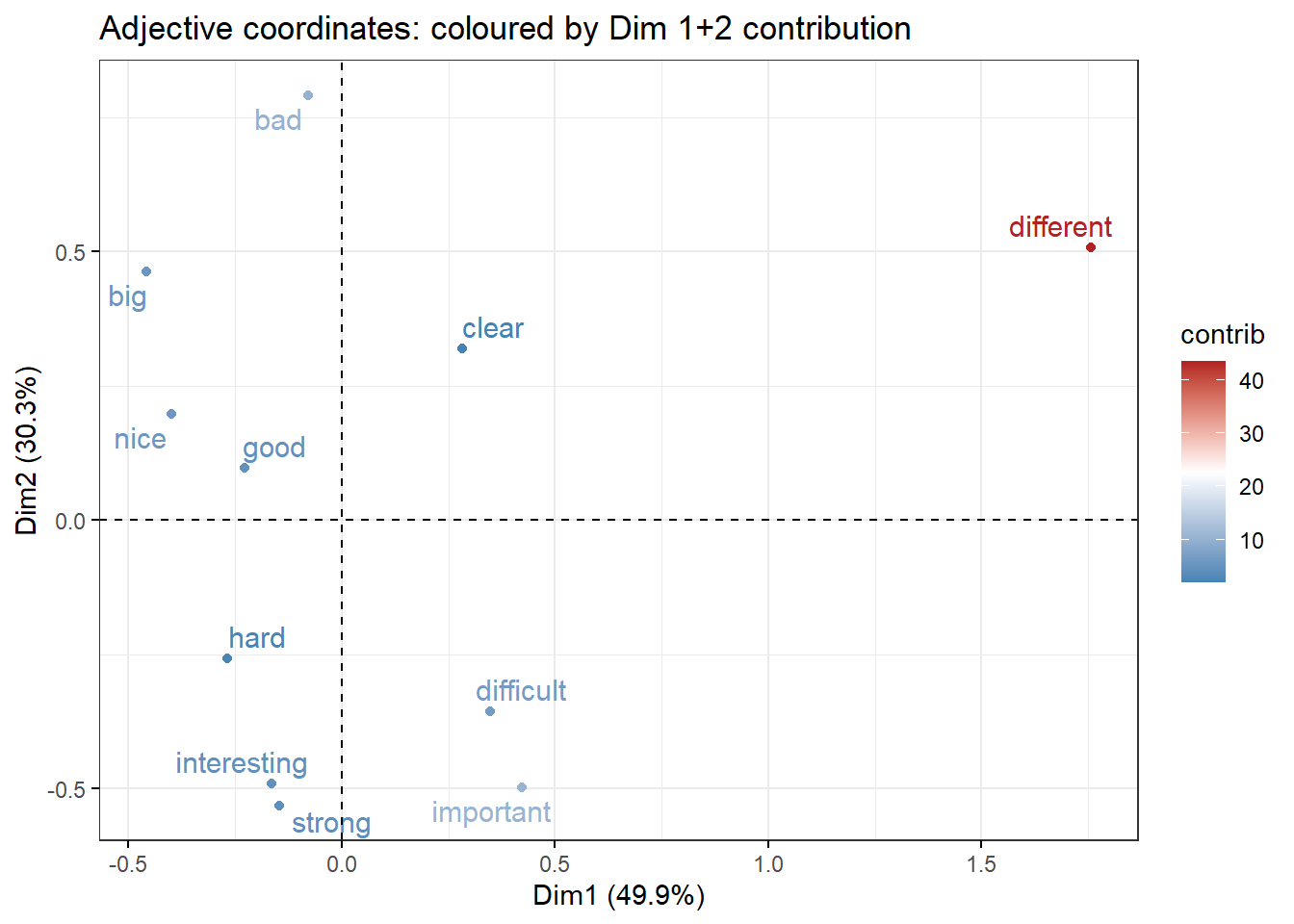

10. Interpret a CA biplot in terms of row–column associations

Citation

Schweinberger, Martin. 2026. Cluster and Correspondence Analysis in R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/clust/clust.html (Version 2026.02.24).

---

Clustering: Concepts and Context

Section Overview

What you will learn: What cluster analysis is; how it differs from regression and tree-based methods; what the key concepts of distance, linkage, and amalgamation mean; and when clustering is the right tool for a linguistic research question

What Is Cluster Analysis?

Cluster analysis groups objects (speakers, languages, words, texts) so that objects within the same group are more similar to each other than to objects in other groups. The input is a distance matrix — a pairwise measure of dissimilarity between all objects — and the output is a grouping or dendrogram showing how objects have been merged.

The central intuition is something we do naturally every day. Confronted with a set of tree species — pine, fir, oak, beech, phoenix palm, nikau palm — most people would group them as conifers, broad-leaf trees, and palms based on visible similarities. Cluster analysis formalises this intuition: it finds groupings based on quantitative similarity across multiple variables simultaneously.

Clustering vs. Supervised Classification

Cluster analysis is unsupervised: it finds groups without being told what the groups should be. This distinguishes it from supervised methods:

Clustering vs. supervised methods

Feature	Cluster analysis	Regression / decision trees
Outcome variable	Not required	Required
Group labels	Discovered by algorithm	Provided by researcher
Goal	Find natural groupings	Predict or explain outcome
Validation	Internal (silhouette, Hopkins)	External (accuracy, AUC)
Output	Group membership, dendrogram	Coefficients, predictions

When to Use Clustering in Linguistics

Clustering is appropriate when:

• You want to discover groups rather than test whether pre-defined groups differ
• You have multivariate data across many variables and want to find which objects pattern together
• You are exploring a new dataset and want to identify structure before hypothesis testing
• You want a visual representation of relationships among many items (e.g. a dendrogram of language varieties)

Clustering is not appropriate when:

• You have a specific hypothesis about group differences (use regression or MANOVA)
• Your groups are already defined and you want to predict membership (use logistic regression or CIT)
• You have very few variables — patterns are easier to see in a simple cross-tabulation

The Three Methods Covered

Method	Data type	Output	Typical use in linguistics
Hierarchical clustering	Numeric, ordinal, or binary	Dendrogram; group membership	Language variety classification; dialect typology; historical relationships
k-means clustering	Numeric (continuous)	Group membership; cluster centres	Speaker segmentation; large-scale text clustering
Correspondence analysis	Categorical (contingency table)	Biplot of row-column associations	Collocation and co-occurrence patterns; register × feature associations

---

Setup

Installing Packages

# Run once — comment out after installation
install.packages("ape")
install.packages("cluster")
install.packages("factoextra")
install.packages("FactoMineR")
install.packages("flextable")
install.packages("gplots")
install.packages("pvclust")
install.packages("seriation")
install.packages("tibble")
install.packages("tidyverse")
install.packages("vcd")
install.packages("exact2x2")
install.packages("checkdown")
install.packages("remotes")
remotes::install_github("rlesur/klippy")

Loading Packages

library(ape)
library(cluster)
library(factoextra)
library(FactoMineR)
library(flextable)
library(gplots)
library(pvclust)
library(seriation)
library(tibble)
library(tidyverse)
library(vcd)
library(exact2x2)
library(checkdown)
klippy::klippy()

---

---

Distance and Similarity Measures

Section Overview

What you will learn: What a distance matrix is; how Euclidean, Manhattan, and binary (Jaccard) distances differ geometrically and mathematically; how to choose the right measure for your data type; how to scale variables before clustering; and how to compute and inspect a distance matrix in R

What Is a Distance Matrix?

A distance matrix records the pairwise dissimilarity between all objects to be clustered. A value of 0 means two objects are identical across all variables; larger values mean greater dissimilarity. Every clustering algorithm takes a distance matrix as input — the choice of distance measure encodes your theory of what it means for two objects to be “alike,” and can substantially change the clusters that emerge.

Three Key Distance Measures

Euclidean distance is the straight-line distance between two points in multivariate space — the generalisation of Pythagoras’s theorem to \(p\) dimensions. It is the most intuitive measure and works well when variables are continuous and on comparable scales:

\[d_{\text{Euclidean}}(A, B) = \sqrt{\sum_{i=1}^{p}(a_i - b_i)^2}\]

Manhattan distance (city-block, taxicab) is the sum of absolute differences along each dimension — as if you could only travel along the grid axes. It is more robust to outliers than Euclidean distance and is often preferred for linguistic data (Kassambara 2017):

\[d_{\text{Manhattan}}(A, B) = \sum_{i=1}^{p}|a_i - b_i|\]

Binary (Jaccard) distance is designed for 0/1 presence–absence data. It ignores shared absences — pairs where both objects lack a feature — because in linguistics, the absence of a rare feature tells us little about similarity. With \(a\) = shared presences, \(b\) = in A only, \(c\) = in B only:

\[d_{\text{Binary}}(A, B) = \frac{b + c}{a + b + c}\]

Choosing a Distance Measure

Data type	Recommended measure	Notes
Continuous numeric (scaled)	Euclidean or Manhattan	Always standardise first with `scale()`
Count / frequency data	Manhattan or Canberra	Canberra emphasises small differences and down-weights large ones
Binary presence / absence	Binary (Jaccard)	Shared absences are ignored — appropriate for sparse feature data
Mixed types (numeric + nominal)	Gower — `daisy(metric='gower')`	Handles numeric, ordinal, and nominal simultaneously
Ordinal	Manhattan on ranks	Convert to integer ranks, then treat as numeric
Texts (TF-IDF vectors)	Cosine (via `proxy::dist(method='cosine')`	Standard for document similarity in text mining

Worked Example 1: Student Grades (Numeric)

students <- data.frame(
  Math    = c(2, 1, 1, 2, 4),
  Music   = c(3, 3, 2, 4, 4),
  Biology = c(2, 2, 1, 3, 3),
  row.names = paste0("Student", LETTERS[1:5])
)
students |> tibble::rownames_to_column("Student") |>
  flextable() |> flextable::set_table_properties(width=.45, layout="autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size=12) |>
  flextable::set_caption("Student grades (1=best, 6=worst)")

Student	Math	Music	Biology
StudentA	2	3	2
StudentB	1	3	2
StudentC	1	2	1
StudentD	2	4	3
StudentE	4	4	3

dist_students <- dist(students, method = "manhattan")
round(as.matrix(dist_students), 1) |> as.data.frame() |>
  tibble::rownames_to_column("Student") |>
  flextable() |> flextable::set_table_properties(width=.55, layout="autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size=12) |>
  flextable::set_caption("Manhattan distance matrix: student grades")

Student	StudentA	StudentB	StudentC	StudentD	StudentE
StudentA	0	1	3	2	4
StudentB	1	0	2	3	5
StudentC	3	2	0	5	7
StudentD	2	3	5	0	2
StudentE	4	5	7	2	0

Students A and B differ by only 1 grade point across three subjects and will be merged first by the algorithm.

Worked Example 2: English Dialect Features (Mixed)

Imagine classifying 6 dialects described by both continuous (mean vowel duration in ms) and binary (morphosyntactic feature present/absent) variables. With mixed types, Gower distance is appropriate:

dialects <- data.frame(
  VowelDur   = c(112, 108, 95, 91, 130, 125),   # continuous (ms)
  AspH       = factor(c(1,1,1,0,0,0)),           # h-aspiration (binary)
  TDeletion  = factor(c(0,0,1,1,0,0)),           # T/D deletion (binary)
  row.names  = c("RP","EastMidlands","Cockney",
                 "NewYork","Dublin","Glasgow")
)
# Gower distance handles mixed types automatically
dist_gower <- cluster::daisy(dialects, metric = "gower")
round(as.matrix(dist_gower), 3) |> as.data.frame() |>
  tibble::rownames_to_column("Dialect") |>
  flextable() |> flextable::set_table_properties(width=.7, layout="autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size=10) |>
  flextable::set_caption("Gower distance matrix: mixed-type dialect features")

Dialect	RP	EastMidlands	Cockney	NewYork	Dublin	Glasgow
RP	0.000	0.034	0.479	0.846	0.487	0.444
EastMidlands	0.034	0.000	0.444	0.812	0.521	0.479
Cockney	0.479	0.444	0.000	0.368	0.966	0.923
NewYork	0.846	0.812	0.368	0.000	0.667	0.624
Dublin	0.487	0.521	0.966	0.667	0.000	0.043
Glasgow	0.444	0.479	0.923	0.624	0.043	0.000

Scaling Variables

When continuous variables differ in scale, those with larger values dominate the distance calculation. Standardising to mean = 0, SD = 1 ensures all variables contribute equally:

# Before scaling — unequal SDs
apply(students, 2, sd)

   Math   Music Biology
 1.2247  0.8367  0.8367

# After scaling — all SDs = 1
students_sc <- scale(students)
apply(students_sc, 2, sd)

   Math   Music Biology
      1       1       1

Always Scale Before Clustering Numeric Data

Failing to standardise means that variables with larger ranges dominate the distance matrix — a raw frequency variable in the thousands will overwhelm a binary 0/1 variable. Apply scale() to all continuous predictors before clustering unless they are already on the same scale (e.g. all proportions between 0 and 1, or all binary).

Exercise: Distance Measures

Q1. You are clustering 15 English dialects on: (a) raw token frequency of discourse markers per 1,000 words (range 5–85), (b) mean vowel duration in ms (range 80–140), and (c) binary presence of five morphosyntactic features (0/1). Which is the most appropriate approach before computing a distance matrix?

Use only the binary features (c) — continuous variables cannot be used in cluster analysis
Convert (a) and (b) to binary by thresholding, then use binary (Jaccard) distance on all variables
Compute Euclidean distance directly — no preprocessing is needed
Standardise (a) and (b) to mean=0 SD=1; use Gower distance for the mixed continuous+binary data

---

Hierarchical Cluster Analysis

Section Overview

What you will learn: How hierarchical clustering builds a dendrogram through successive merging; how to select and compare linkage methods; how to read a dendrogram; how to assess clusterability with the Hopkins statistic; how to measure dendrogram quality with cophenetic correlation; and how to perform a complete hierarchical cluster analysis on two linguistic datasets

How Hierarchical Clustering Works

Hierarchical cluster analysis (HCA) builds a dendrogram by merging objects bottom-up:

1. Start with each object in its own cluster
2. Find the two clusters with the smallest distance
3. Merge them into one; recompute distances to remaining clusters
4. Repeat until all objects are in one cluster

The height at which two branches join in the dendrogram corresponds to the distance at which those clusters were merged. Low joins = similar objects; high joins = dissimilar objects.

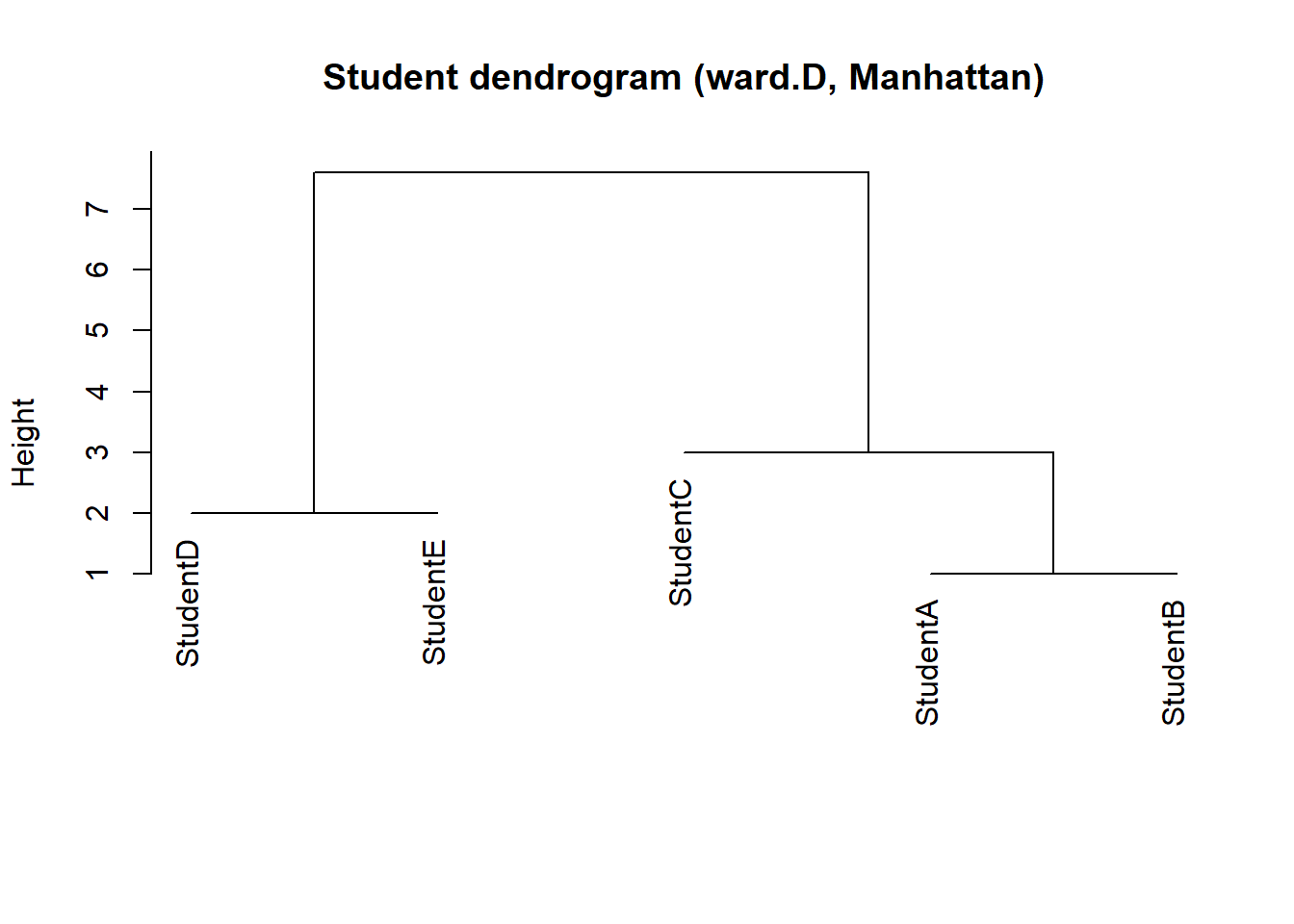

hc_students <- hclust(dist_students, method = "ward.D")
plot(hc_students, hang = 0, main = "Student dendrogram (ward.D, Manhattan)",
     xlab = "", sub = "")

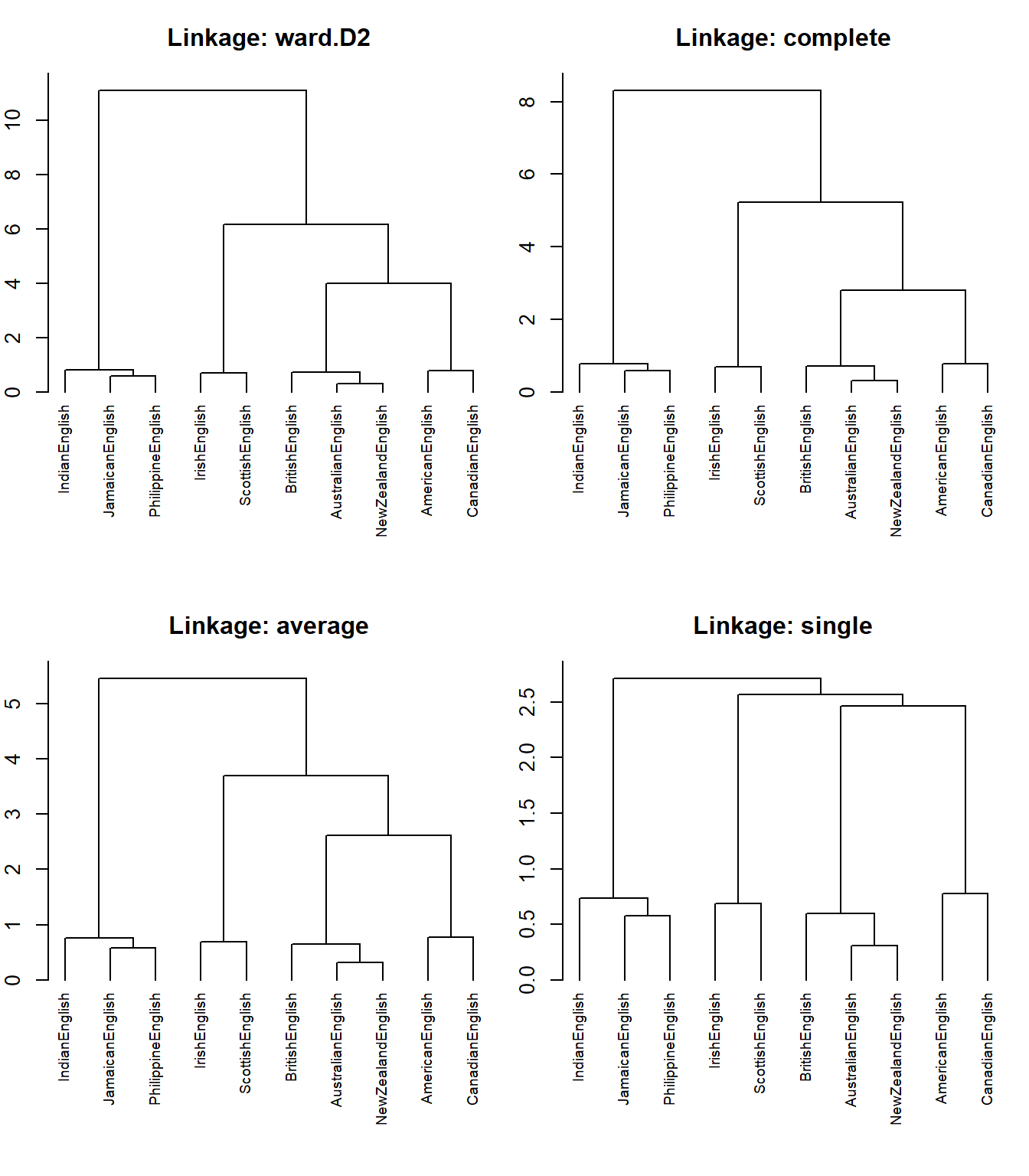

Linkage Methods

The linkage method determines how the distance between a new merged cluster and remaining clusters is computed. This choice can substantially change the shape of the dendrogram:

Method	Description	Best for
ward.D2 ✓	Minimises total within-cluster variance — corrected Ward criterion	Most linguistic data — compact, well-separated clusters (default)
complete	Distance = maximum pairwise distance between the two clusters	When clusters should have similar diameters
average (UPGMA)	Distance = average of all pairwise distances (unweighted)	Phylogenetics and genealogical classification
single	Distance = minimum pairwise distance — prone to chaining	Detecting elongated or chain-like structures (avoid otherwise)
centroid	Distance between cluster centroids (means)	When cluster shape matters less than position
median	Distance between cluster medians	Robust to outliers
mcquitty	McQuitty's weighted average (WPGMA)	Balanced cluster sizes

Choosing a Linkage Method

ward.D2 is the recommended default for most linguistic datasets because it produces compact, well-separated clusters. ward.D2 is the corrected version of ward.D (uses squared distances consistently) and should be preferred in new analyses. Use average linkage for phylogenetic-style analyses — it is equivalent to the UPGMA algorithm widely used in historical linguistics. Avoid single linkage unless you expect chained structures — it tends to produce one long chain rather than distinct groups.

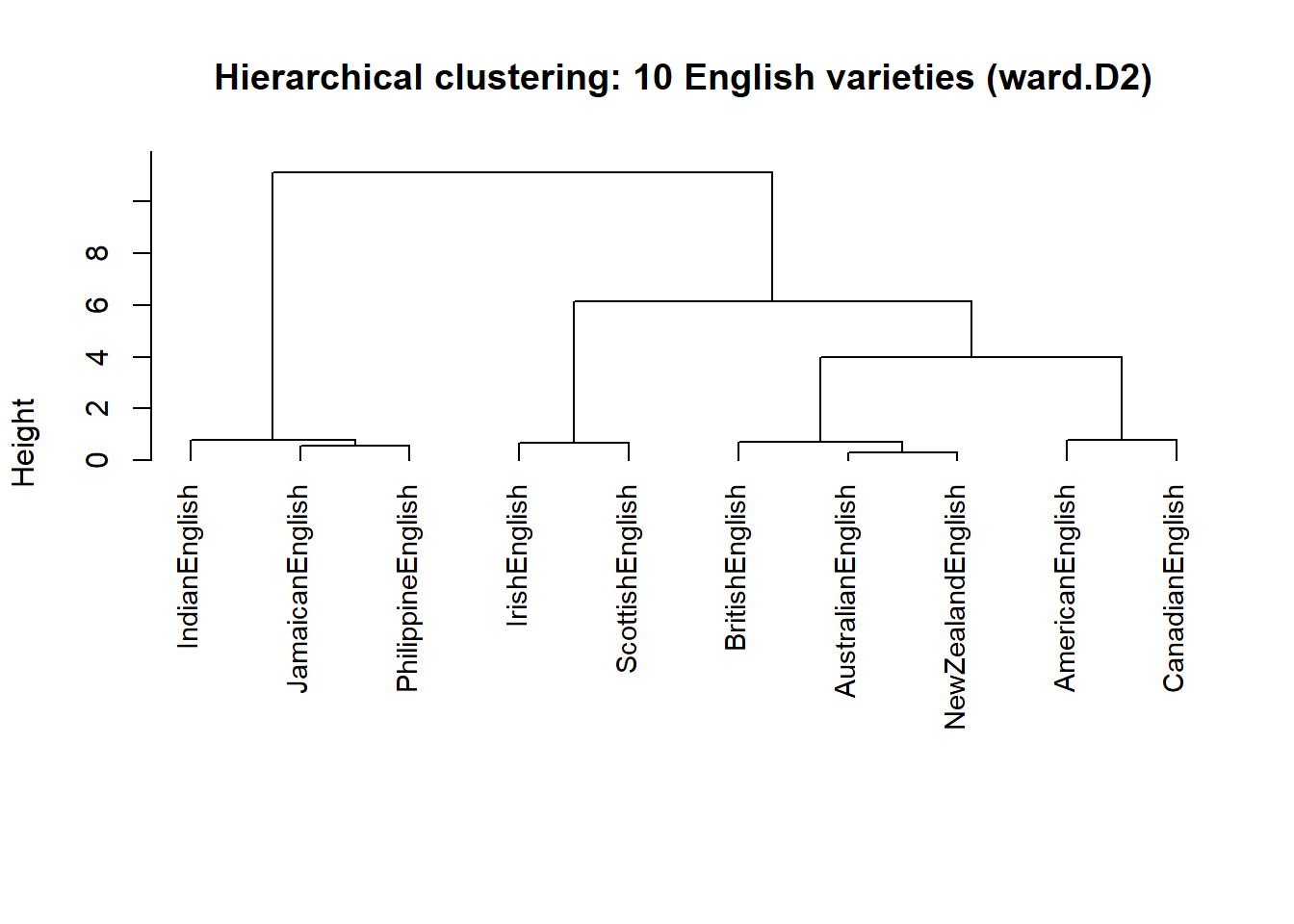

Dataset 1: Varieties of English

Generating the Data

set.seed(2026)
IrishEnglish      <- round(sqrt((rnorm(10, 9.5, .5))^2), 3)
ScottishEnglish   <- round(sqrt((rnorm(10, 9.3, .4))^2), 3)
BritishEnglish    <- round(sqrt((rnorm(10, 6.4, .7))^2), 3)
AustralianEnglish <- round(sqrt((rnorm(10, 6.6, .5))^2), 3)
NewZealandEnglish <- round(sqrt((rnorm(10, 6.5, .4))^2), 3)
AmericanEnglish   <- round(sqrt((rnorm(10, 4.6, .8))^2), 3)
CanadianEnglish   <- round(sqrt((rnorm(10, 4.5, .7))^2), 3)
JamaicanEnglish   <- round(sqrt((rnorm(10, 1.4, .2))^2), 3)
PhilippineEnglish <- round(sqrt((rnorm(10, 1.5, .4))^2), 3)
IndianEnglish     <- round(sqrt((rnorm(10, 1.3, .5))^2), 3)

clus <- data.frame(
  IrishEnglish, ScottishEnglish, BritishEnglish,
  AustralianEnglish, NewZealandEnglish, AmericanEnglish,
  CanadianEnglish, JamaicanEnglish, PhilippineEnglish, IndianEnglish,
  row.names = c("nae_neg","like","clefts","tags","youse",
                "soitwas","dt","nsr","invartag","wh_cleft")
)

Feature	IrishEnglish	ScottishEnglish	BritishEnglish	AustralianEnglish	NewZealandEnglish	AmericanEnglish	CanadianEnglish	JamaicanEnglish	PhilippineEnglish	IndianEnglish
nae_neg	9.760	9.137	6.170	6.336	6.037	3.664	4.401	1.504	1.038	0.321
like	8.960	9.008	6.285	6.683	6.811	4.435	4.617	1.401	2.104	2.037
clefts	9.570	9.211	5.426	6.473	6.018	3.856	4.361	1.669	1.038	1.063
tags	9.458	9.210	7.426	6.766	6.623	4.960	4.296	1.231	0.877	1.791
youse	9.167	8.281	6.434	6.691	6.167	4.084	3.286	1.489	1.478	0.388
soitwas	8.242	9.839	7.736	7.182	7.067	4.415	4.309	1.205	1.840	1.170
dt	9.132	9.547	7.612	6.897	6.785	3.611	3.240	1.825	1.496	0.821
nsr	8.990	9.387	6.441	6.154	6.339	3.831	5.307	1.538	1.196	1.055
invartag	9.557	8.978	6.852	6.889	6.820	4.707	3.798	1.331	1.970	0.761
wh_cleft	9.263	9.576	7.608	6.188	6.671	3.801	4.604	1.557	2.466	1.485

Preparing the Data

clust  <- t(clus)           # varieties as rows
clust  <- na.omit(clust)
clusts <- scale(clust)      # standardise features

cat("Matrix dimensions:", nrow(clusts), "varieties ×", ncol(clusts), "features\n")

Matrix dimensions: 10 varieties × 10 features

Hopkins Statistic

set.seed(2026)
clust_tend <- factoextra::get_clust_tendency(
  clusts, n = nrow(clusts) - 1,
  gradient = list(low = "steelblue", high = "white")
)
cat("Hopkins statistic:", round(clust_tend$hopkins_stat, 3), "\n")

Hopkins statistic: 0.809

cat("Interpretation:",
    ifelse(clust_tend$hopkins_stat > 0.7, "Data is well-clusterable (H > 0.7)",
    ifelse(clust_tend$hopkins_stat > 0.5, "Some structure present (H > 0.5)",
           "Data appears random — clustering may not be meaningful")), "\n")

Interpretation: Data is well-clusterable (H > 0.7)

Distance Matrix and Dissimilarity Plot

clustd <- dist(clusts, method = "euclidean")

# Dissimilarity plot
seriation::dissplot(clustd, main = "Dissimilarity plot: 10 English varieties")

Distinct dark blocks along the diagonal confirm genuine cluster structure in the data.

Fitting and Comparing Linkage Methods

par(mfrow = c(2, 2), mar = c(2, 2, 3, 1))
for (m in c("ward.D2", "complete", "average", "single")) {
  plot(hclust(clustd, method = m), hang = -1, cex = 0.7,
       main = paste("Linkage:", m), xlab = "", sub = "")
}

par(mfrow = c(1, 1), mar = c(5.1, 4.1, 4.1, 2.1))

Cophenetic Correlation

The cophenetic correlation measures how well the dendrogram preserves the original pairwise distances:

link_methods <- c("ward.D2","complete","average","single","mcquitty")
coph_vals <- sapply(link_methods, function(m) {
  hc <- hclust(clustd, method = m)
  cor(clustd, cophenetic(hc))
})

data.frame(Linkage = link_methods, Cophenetic = round(coph_vals, 3)) |>
  dplyr::arrange(desc(Cophenetic)) |>
  flextable() |>
  flextable::set_table_properties(width = .4, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::bold(i = 1) |>
  flextable::set_caption("Cophenetic correlation by linkage (higher = better)")

Linkage	Cophenetic
average	0.781
mcquitty	0.780
complete	0.777
ward.D2	0.775
single	0.689

# Fit final model with ward.D2
cd <- hclust(clustd, method = "ward.D2")
plot(cd, hang = -1, cex = 0.9,
     main = "Hierarchical clustering: 10 English varieties (ward.D2)",
     xlab = "", sub = "")

How to Read a Dendrogram

• Leaves (bottom) = individual objects (here: varieties)
• Branch height = distance at which the merge occurred — lower = more similar
• Clusters = everything below a horizontal cut line in the same subtree
• The left-right order of leaves is arbitrary and can be permuted without changing the dendrogram’s meaning; only the vertical heights matter
• Look for large vertical gaps between successive merges — these mark natural cluster boundaries

---

Dataset 2: Early Modern English Text Types

For a second worked example, we cluster 8 Early Modern English text types based on 12 grammatical features that are known to vary by genre/register (Biber 1995). This illustrates how the same workflow applies to a different linguistic domain.

set.seed(2026)
# 8 EME text types × 12 grammatical features (simulated rates per 1000 words)
# Features: past tense, perfect aspect, passives, nominalisation,
#   present tense, first-person pronouns, private verbs,
#   questions, imperatives, hedges, subordination, coordination

eme_data <- data.frame(
  PastTense    = c(42, 38, 18, 12,  8, 10, 25, 30),
  PerfectAsp   = c( 8,  6,  4,  3,  2,  2,  5,  4),
  Passives     = c( 5,  4, 22, 18,  3,  4,  6,  8),
  Nominalis    = c(12, 10, 35, 28,  4,  5, 15, 18),
  PreseTense   = c(15, 18, 25, 30, 45, 40, 20, 15),
  FirstPron    = c(18, 20,  4,  3, 35, 30, 10,  8),
  PrivVerbs    = c(22, 24,  6,  5, 38, 32, 14, 10),
  Questions    = c( 6,  8,  1,  1, 18, 15,  4,  3),
  Imperatives  = c( 2,  3,  1,  1, 10,  9,  3,  2),
  Hedges       = c( 8,  9,  4,  3, 20, 18,  6,  5),
  Subordinat   = c(20, 18, 28, 25, 15, 16, 22, 24),
  Coordinat    = c(15, 16, 10,  9, 12, 14, 18, 20),
  row.names    = c("Sermons","Trials","ScientificProse","LegalDocs",
                   "PersonalLetters","Diaries","NarrativeProse","Chronicles")
)

eme_data |> tibble::rownames_to_column("TextType") |>
  flextable() |>
  flextable::set_table_properties(width = 1, layout = "autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size = 9) |>
  flextable::set_caption("Grammatical feature rates (per 1,000 words): Early Modern English text types")

TextType	PastTense	PerfectAsp	Passives	Nominalis	PreseTense	FirstPron	PrivVerbs	Questions	Imperatives	Hedges	Subordinat	Coordinat
Sermons	42	8	5	12	15	18	22	6	2	8	20	15
Trials	38	6	4	10	18	20	24	8	3	9	18	16
ScientificProse	18	4	22	35	25	4	6	1	1	4	28	10
LegalDocs	12	3	18	28	30	3	5	1	1	3	25	9
PersonalLetters	8	2	3	4	45	35	38	18	10	20	15	12
Diaries	10	2	4	5	40	30	32	15	9	18	16	14
NarrativeProse	25	5	6	15	20	10	14	4	3	6	22	18
Chronicles	30	4	8	18	15	8	10	3	2	5	24	20

# Standardise and compute distance
eme_sc    <- scale(eme_data)
eme_dist  <- dist(eme_sc, method = "euclidean")

# Hopkins statistic
set.seed(2026)
eme_tend <- factoextra::get_clust_tendency(eme_sc, n = 6,
              gradient = list(low = "steelblue", high = "white"))
cat("Hopkins (EME data):", round(eme_tend$hopkins_stat, 3), "\n")

Hopkins (EME data): 0.745

# Fit with ward.D2

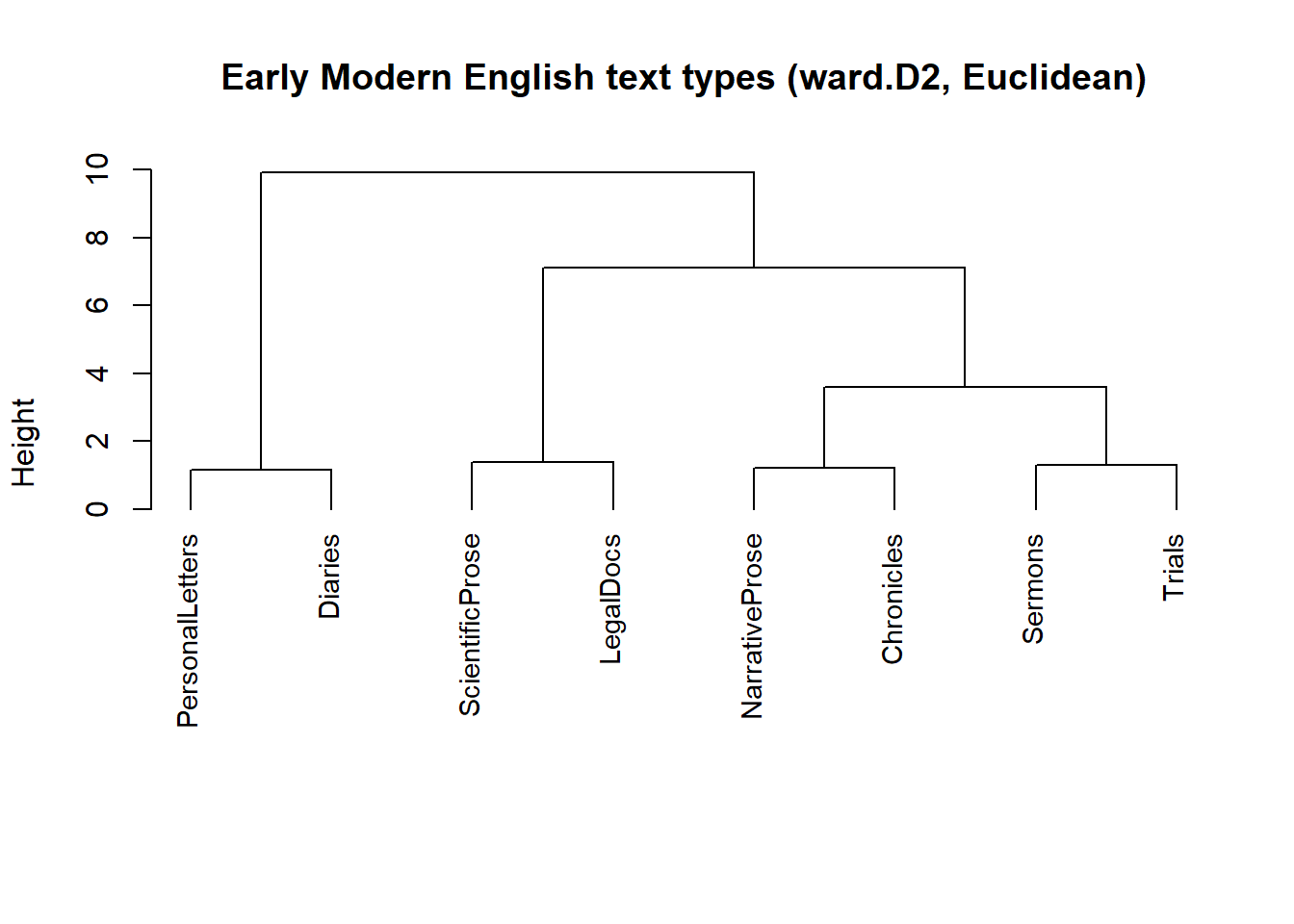

cd_eme <- hclust(eme_dist, method = "ward.D2")

plot(cd_eme, hang = -1, cex = 0.9,
     main = "Early Modern English text types (ward.D2, Euclidean)",
     xlab = "", sub = "")

The dendrogram reveals a broad grouping between formal/written registers (Scientific Prose, Legal Docs, Sermons, Trials) and informal/speech-related text types (Personal Letters, Diaries) with narrative texts forming a middle ground.

Exercise: Linkage Methods

Q2. A hierarchical cluster analysis of 12 dialect varieties produces dendrograms with cophenetic correlations: ward.D2 = 0.71, complete = 0.78, average = 0.84, single = 0.62. A colleague says you must use average linkage because it has the highest cophenetic correlation. Should you follow this advice?

No — single linkage always produces the best clusters because it uses the minimum distance
Cophenetic correlation is one criterion for choosing linkage, but not the only one. Average linkage (0.84) preserves pairwise distances most faithfully, but ward.D2 (0.71) tends to produce more compact, interpretable clusters for linguistic data. You should consider both the cophenetic correlation AND the interpretability of the resulting clusters given your research question.
Yes — the highest cophenetic correlation always determines the best linkage choice
No — cophenetic correlation is irrelevant; always use ward.D2 regardless

---

Choosing the Number of Clusters

Section Overview

What you will learn: Three complementary approaches to deciding how many clusters to extract — the silhouette criterion, the elbow method, and the gap statistic — and how to apply them to both the English varieties and EME text-type datasets

The Silhouette Width Criterion

The silhouette width measures how well each object fits its assigned cluster relative to the nearest alternative cluster. For object \(i\) in cluster \(C_i\):

\[s(i) = \frac{b(i) - a(i)}{\max(a(i),\; b(i))}\]

• \(a(i)\) = average distance from \(i\) to all other objects in its own cluster (cohesion)
• \(b(i)\) = average distance from \(i\) to all objects in the nearest other cluster (separation)
• \(s(i) \in [-1, +1]\): values close to +1 = well-clustered; close to 0 = borderline; negative = possibly misassigned

Average silhouette width across all objects provides a single summary of the cluster solution. Levshina (2015, 311) recommends that values below .20 indicate clustering is inappropriate.

# Silhouette criterion: English varieties
sil_eng <- sapply(2:(nrow(clusts)-1), function(k) {
  grps <- cutree(cd, k = k)
  summary(silhouette(grps, clustd))$avg.width
})

# Silhouette criterion: EME text types
sil_eme <- sapply(2:(nrow(eme_sc)-1), function(k) {
  grps <- cutree(cd_eme, k = k)
  summary(silhouette(grps, eme_dist))$avg.width
})

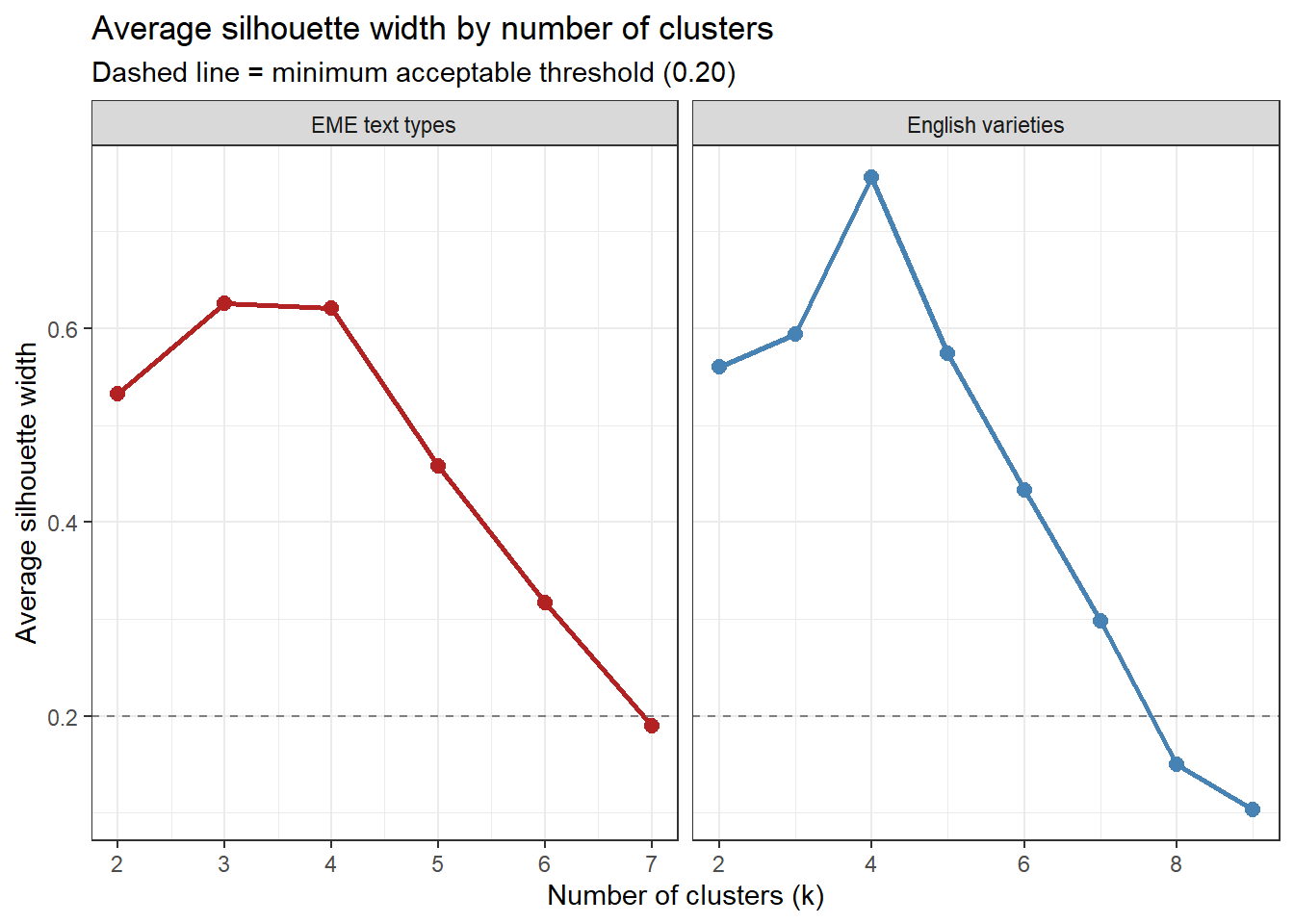

# Combined plot
tibble::tibble(
  k         = c(2:(nrow(clusts)-1), 2:(nrow(eme_sc)-1)),
  Silhouette = c(sil_eng, sil_eme),
  Dataset   = c(rep("English varieties", length(sil_eng)),
                rep("EME text types",   length(sil_eme)))
) |>
  ggplot(aes(x = k, y = Silhouette, color = Dataset, group = Dataset)) +
  geom_line(linewidth = 1) +
  geom_point(size = 2.5) +
  geom_hline(yintercept = 0.20, linetype = "dashed", color = "grey50") +
  facet_wrap(~ Dataset, scales = "free_x") +
  scale_color_manual(values = c("English varieties" = "steelblue",
                                "EME text types"    = "firebrick")) +
  theme_bw() +
  theme(legend.position = "none") +
  labs(title    = "Average silhouette width by number of clusters",
       subtitle = "Dashed line = minimum acceptable threshold (0.20)",
       x = "Number of clusters (k)", y = "Average silhouette width")

opt_k_eng <- which.max(sil_eng) + 1
opt_k_eme <- which.max(sil_eme) + 1
cat("Optimal k (English varieties):", opt_k_eng,
    "| silhouette:", round(max(sil_eng), 3), "\n")

Optimal k (English varieties): 4 | silhouette: 0.756

cat("Optimal k (EME text types):",    opt_k_eme,
    "| silhouette:", round(max(sil_eme), 3), "\n")

Optimal k (EME text types): 3 | silhouette: 0.626

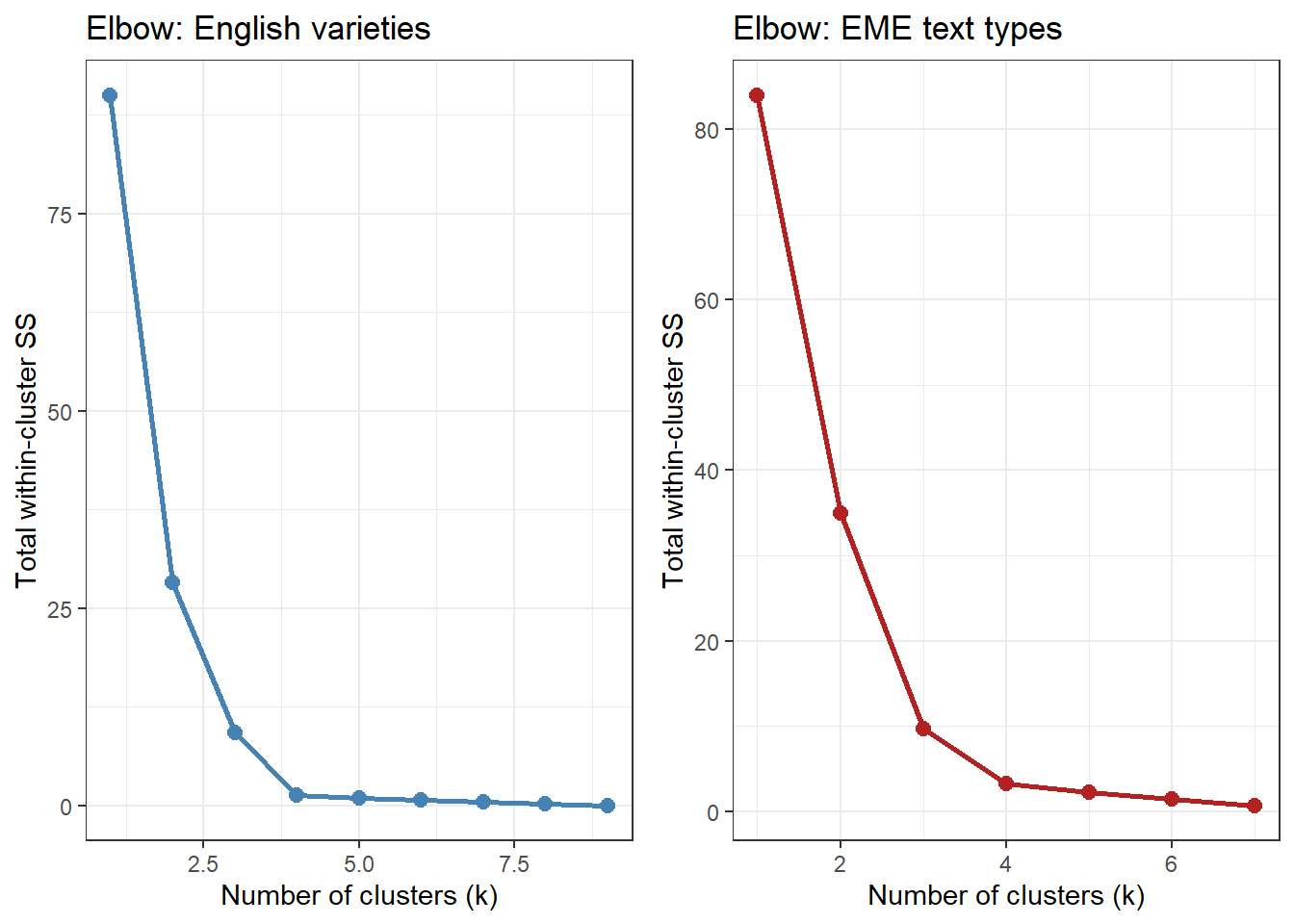

The Elbow Method

The elbow method plots the total within-cluster sum of squares (WSS) against k. The “elbow” — where the rate of decrease in WSS flattens — suggests a natural choice:

# Elbow method: manual WSS calculation (avoids fviz_nbclust/hcut bug on square matrices)
wss_eng <- sapply(1:(nrow(clusts) - 1), function(k) {
  grps <- cutree(cd, k = k)
  sum(sapply(unique(grps), function(g) {
    members <- clusts[grps == g, , drop = FALSE]
    if (nrow(members) == 1) return(0)
    sum(apply(members, 2, var) * (nrow(members) - 1))
  }))
})

wss_eme <- sapply(1:(nrow(eme_sc) - 1), function(k) {
  grps <- cutree(cd_eme, k = k)
  sum(sapply(unique(grps), function(g) {
    members <- eme_sc[grps == g, , drop = FALSE]
    if (nrow(members) == 1) return(0)
    sum(apply(members, 2, var) * (nrow(members) - 1))
  }))
})

p1 <- data.frame(k = 1:(nrow(clusts)  - 1), wss = wss_eng) |>
  ggplot(aes(x = k, y = wss)) +
  geom_line(color = "steelblue", linewidth = 1) +
  geom_point(color = "steelblue", size = 2.5) +
  theme_bw() +
  labs(title = "Elbow: English varieties",
       x = "Number of clusters (k)", y = "Total within-cluster SS")

p2 <- data.frame(k = 1:(nrow(eme_sc) - 1), wss = wss_eme) |>
  ggplot(aes(x = k, y = wss)) +
  geom_line(color = "firebrick", linewidth = 1) +
  geom_point(color = "firebrick", size = 2.5) +
  theme_bw() +
  labs(title = "Elbow: EME text types",
       x = "Number of clusters (k)", y = "Total within-cluster SS")

gridExtra::grid.arrange(p1, p2, ncol = 2)

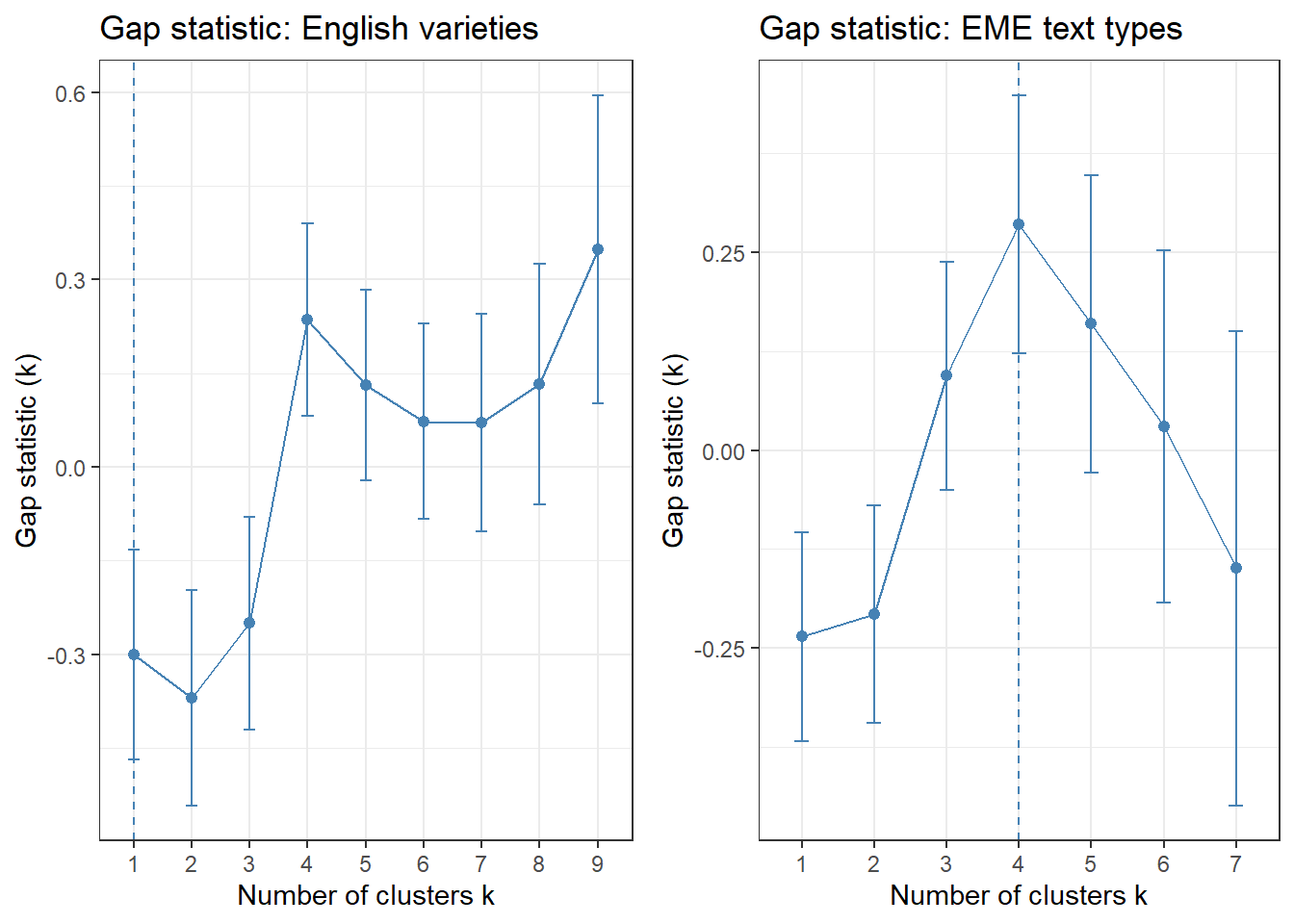

Gap Statistic

The gap statistic compares the observed WSS to the WSS expected from a reference null distribution (randomly sampled data). The optimal k is the smallest k where the gap is within 1 SE of the maximum:

set.seed(2026)
gap_eng <- cluster::clusGap(
  clusts,
  FUNcluster = function(x, k) list(cluster = cutree(hclust(dist(x), "ward.D2"), k)),
  K.max = nrow(clusts) - 1,
  B     = 200
)

gap_eme <- cluster::clusGap(
  eme_sc,
  FUNcluster = function(x, k) list(cluster = cutree(hclust(dist(x), "ward.D2"), k)),
  K.max = nrow(eme_sc) - 1,
  B     = 200
)

p_gap1 <- factoextra::fviz_gap_stat(gap_eng) +
  theme_bw() + labs(title = "Gap statistic: English varieties")

p_gap2 <- factoextra::fviz_gap_stat(gap_eme) +
  theme_bw() + labs(title = "Gap statistic: EME text types")

gridExtra::grid.arrange(p_gap1, p_gap2, ncol = 2)

Visualising the Optimal Solutions

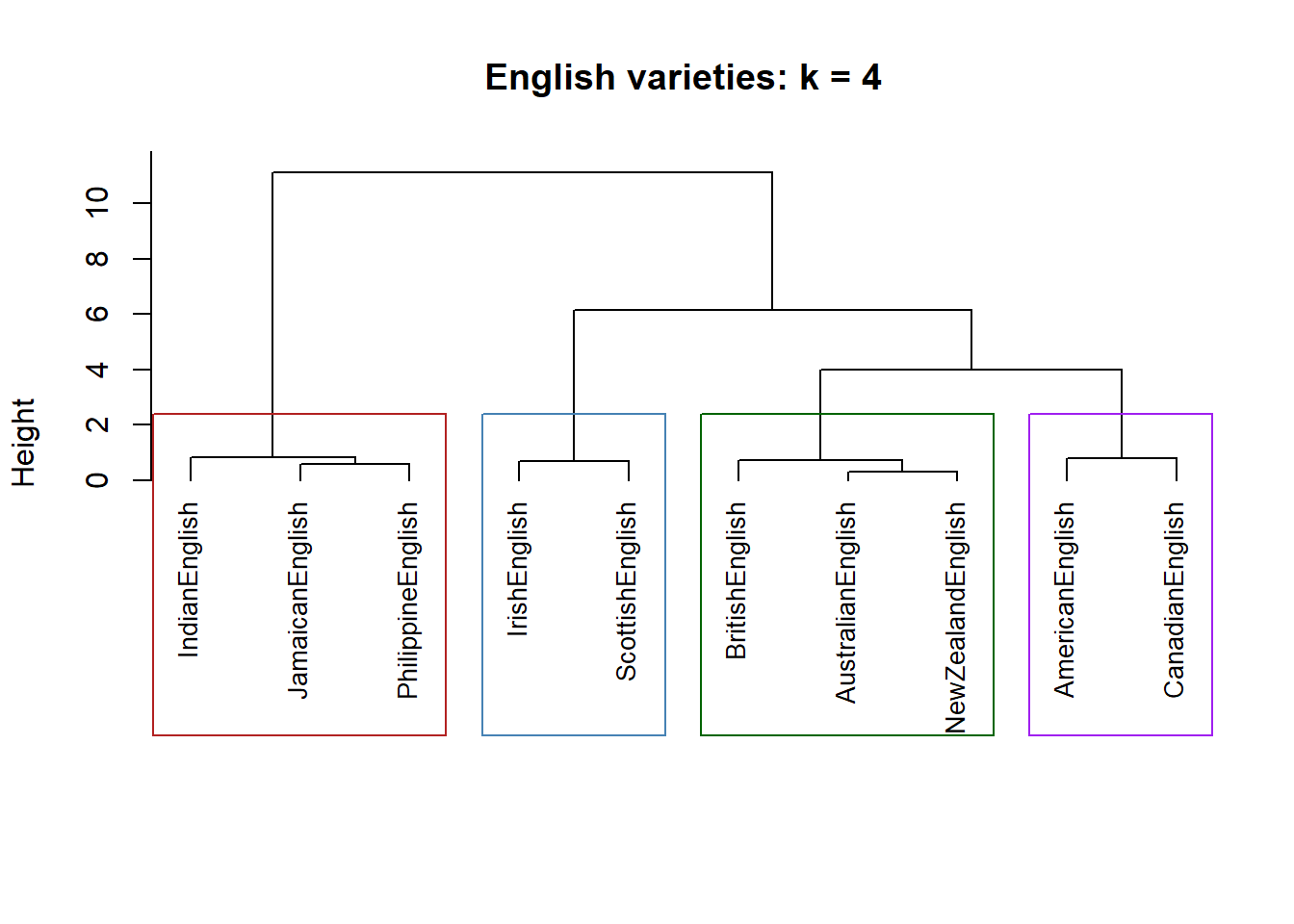

groups_eng <- cutree(cd, k = opt_k_eng)

# Dendrogram with borders
plot(cd, hang = -1, cex = 0.85,
     main = paste("English varieties: k =", opt_k_eng), xlab = "", sub = "")
rect.hclust(cd, k = opt_k_eng,
            border = c("firebrick","steelblue","darkgreen","purple")[1:opt_k_eng])

# Silhouette plot
sil_opt_eng <- silhouette(groups_eng, clustd)
plot(sil_opt_eng,
     col  = c("firebrick","steelblue","darkgreen","purple")[1:opt_k_eng],
     main = paste("Silhouette plot: English varieties (k =", opt_k_eng, ")"))

groups_eme <- cutree(cd_eme, k = opt_k_eme)

plot(cd_eme, hang = -1, cex = 0.85,
     main = paste("EME text types: k =", opt_k_eme), xlab = "", sub = "")
rect.hclust(cd_eme, k = opt_k_eme,
            border = c("firebrick","steelblue","darkgreen")[1:opt_k_eme])

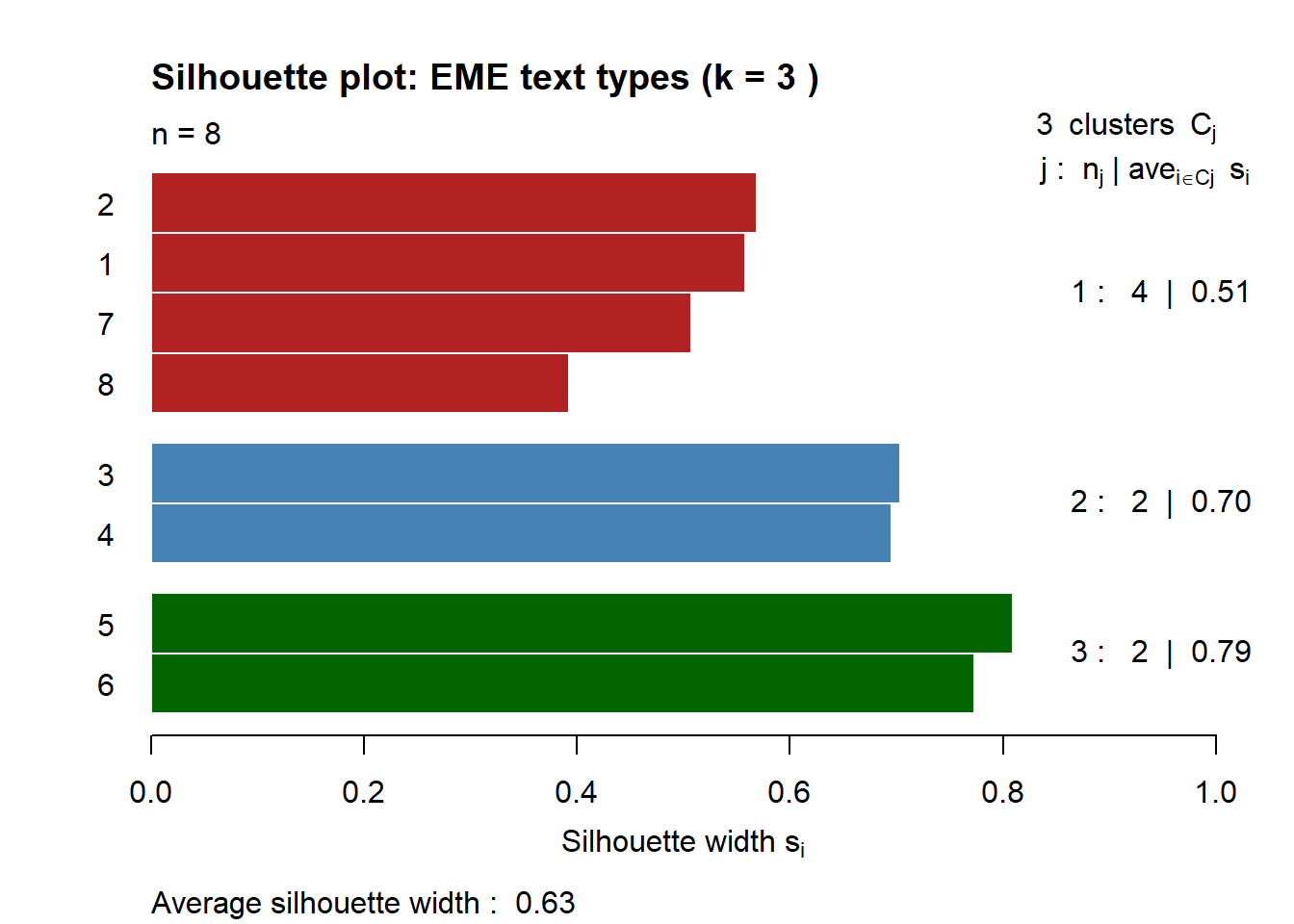

sil_opt_eme <- silhouette(groups_eme, eme_dist)
plot(sil_opt_eme,
     col  = c("firebrick","steelblue","darkgreen")[1:opt_k_eme],
     main = paste("Silhouette plot: EME text types (k =", opt_k_eme, ")"))

# Membership summary for both datasets
rbind(
  data.frame(Dataset = "English varieties",
             Object  = names(groups_eng),
             Cluster = paste0("Cluster ", groups_eng)),
  data.frame(Dataset = "EME text types",
             Object  = names(groups_eme),
             Cluster = paste0("Cluster ", groups_eme))
) |>
  dplyr::arrange(Dataset, Cluster) |>
  flextable() |>
  flextable::set_table_properties(width = .65, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Cluster membership: both datasets")

Dataset	Object	Cluster
EME text types	Sermons	Cluster 1
EME text types	Trials	Cluster 1
EME text types	NarrativeProse	Cluster 1
EME text types	Chronicles	Cluster 1
EME text types	ScientificProse	Cluster 2
EME text types	LegalDocs	Cluster 2
EME text types	PersonalLetters	Cluster 3
EME text types	Diaries	Cluster 3
English varieties	IrishEnglish	Cluster 1
English varieties	ScottishEnglish	Cluster 1
English varieties	BritishEnglish	Cluster 2
English varieties	AustralianEnglish	Cluster 2
English varieties	NewZealandEnglish	Cluster 2
English varieties	AmericanEnglish	Cluster 3
English varieties	CanadianEnglish	Cluster 3
English varieties	JamaicanEnglish	Cluster 4
English varieties	PhilippineEnglish	Cluster 4
English varieties	IndianEnglish	Cluster 4

Exercise: Choosing the Number of Clusters

Q3. For the English varieties data, the silhouette criterion suggests k=3 (avg silhouette = 0.48), while the elbow method is ambiguous between k=2 and k=3, and the gap statistic favours k=2. How should the researcher proceed?

Always use the gap statistic — it is the gold standard and k=2 must be chosen
Report all three criteria, note the convergence on k=2 or k=3, inspect both solutions substantively, and choose the one that is both statistically supported and theoretically interpretable. Transparent reporting of the disagreement is essential.
Rerun the analysis until all three criteria agree
Always use the silhouette criterion — it is the most reliable and k=3 must be chosen

---

Cluster Validation

Section Overview

What you will learn: Why cluster solutions need external validation beyond internal metrics; how bootstrap resampling with pvclust provides approximately unbiased p-values for dendrogram branches; how to interpret AU and BP values; and how to visualise validated clusters with ape

Why Bootstrap Validation?

Internal criteria (silhouette, Hopkins) assess how well the algorithm has organised the current data. They do not tell you whether the clusters would replicate in a new sample — a critical question for any linguistic generalisation. Bootstrap validation answers this by repeatedly resampling the data and asking: how consistently does each dendrogram branch appear?

pvclust: AU and BP Values

pvclust computes two values per branch:

• AU (Approximately Unbiased p-value): Multi-scale bootstrap estimate corrected for sampling bias. Branches with AU ≥ 95 are statistically supported.
• BP (Bootstrap Probability): Simple proportion of replicates containing the branch — biased for small samples; use AU in preference.

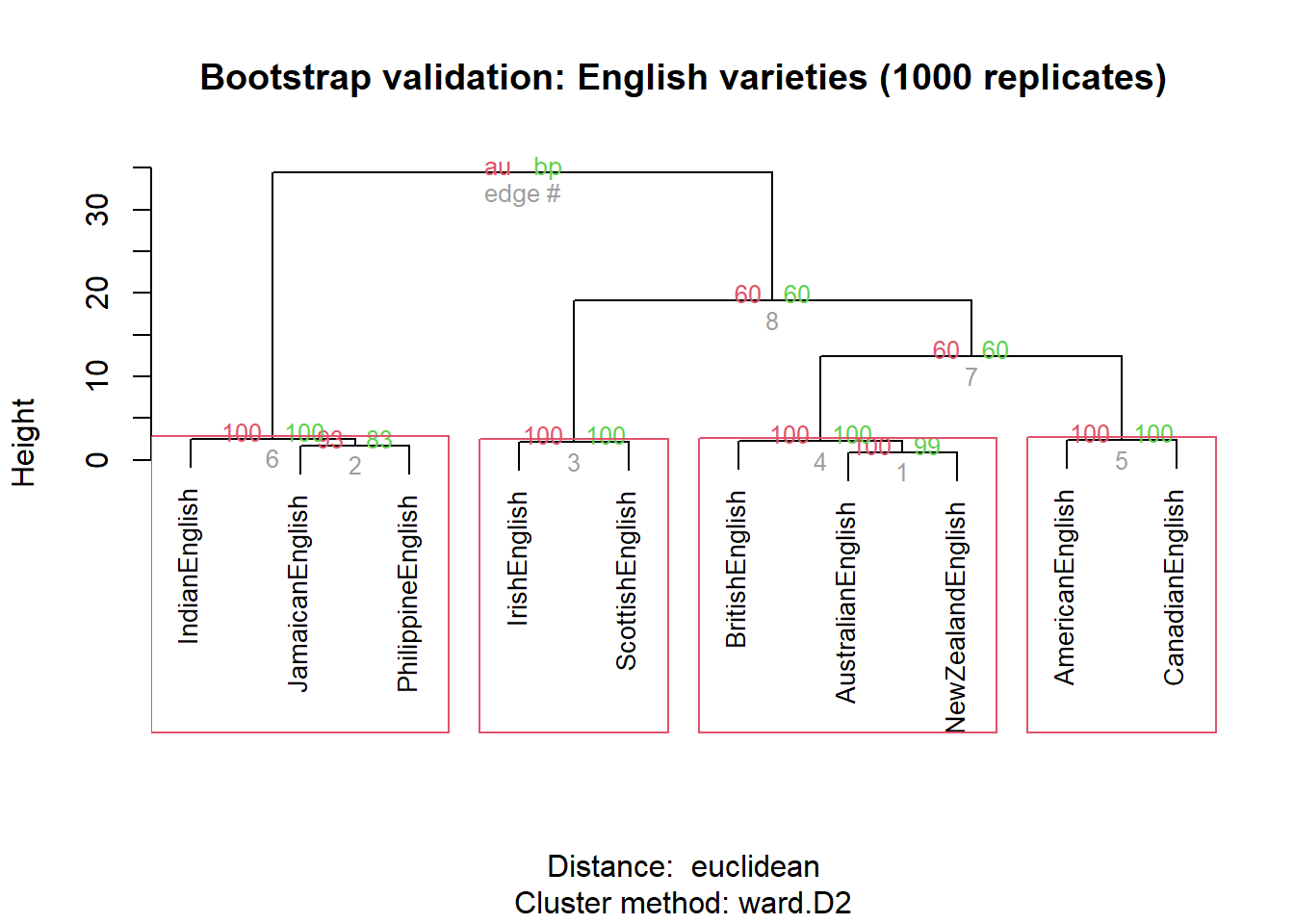

set.seed(2026)
pv_eng <- pvclust::pvclust(
  clus, method.dist = "euclidean", method.hclust = "ward.D2",
  nboot = 1000, quiet = TRUE
)
plot(pv_eng, cex = 0.85,
     main = "Bootstrap validation: English varieties (1000 replicates)")
pvclust::pvrect(pv_eng, alpha = 0.95)

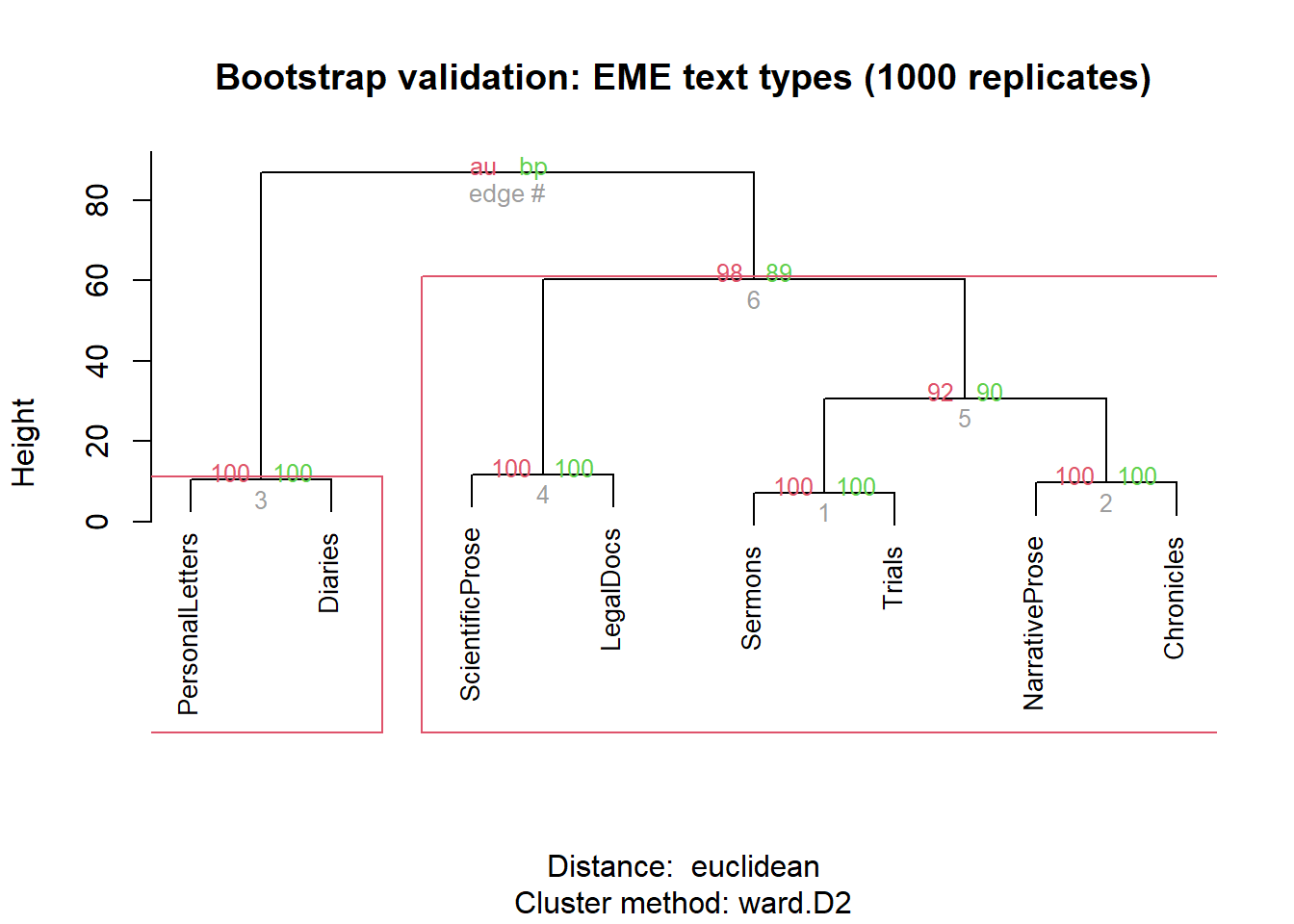

set.seed(2026)
pv_eme <- pvclust::pvclust(
  t(eme_data), method.dist = "euclidean", method.hclust = "ward.D2",
  nboot = 1000, quiet = TRUE
)
plot(pv_eme, cex = 0.85,
     main = "Bootstrap validation: EME text types (1000 replicates)")
pvclust::pvrect(pv_eme, alpha = 0.95)

cat("=== English varieties: branches with AU >= 95 ===\n")

=== English varieties: branches with AU >= 95 ===

pvclust::pvpick(pv_eng, alpha = 0.95)

$clusters
$clusters[[1]]
[1] "IrishEnglish"    "ScottishEnglish"

$clusters[[2]]
[1] "BritishEnglish"    "AustralianEnglish" "NewZealandEnglish"

$clusters[[3]]
[1] "AmericanEnglish" "CanadianEnglish"

$clusters[[4]]
[1] "JamaicanEnglish"   "PhilippineEnglish" "IndianEnglish"


$edges
[1] 3 4 5 6

cat("\n=== EME text types: branches with AU >= 95 ===\n")

=== EME text types: branches with AU >= 95 ===

pvclust::pvpick(pv_eme, alpha = 0.95)

$clusters
$clusters[[1]]
[1] "PersonalLetters" "Diaries"

$clusters[[2]]
[1] "Sermons"         "Trials"          "ScientificProse" "LegalDocs"
[5] "NarrativeProse"  "Chronicles"


$edges
[1] 3 6

Reporting Bootstrap Validation

In a published linguistic study, report bootstrap results as follows:

• List branches that are statistically supported (AU ≥ 95) and those that are not
• Interpret AU < 80 branches as unstable — do not over-interpret the membership of varieties in these groups
• Note the number of bootstrap replicates used (standard minimum: 1000)
• Example: “The Celtic cluster (Irish + Scottish English) was strongly supported (AU = 98), confirming the robustness of this grouping. The split between Australian and New Zealand English had only moderate support (AU = 72) and should be interpreted cautiously.”

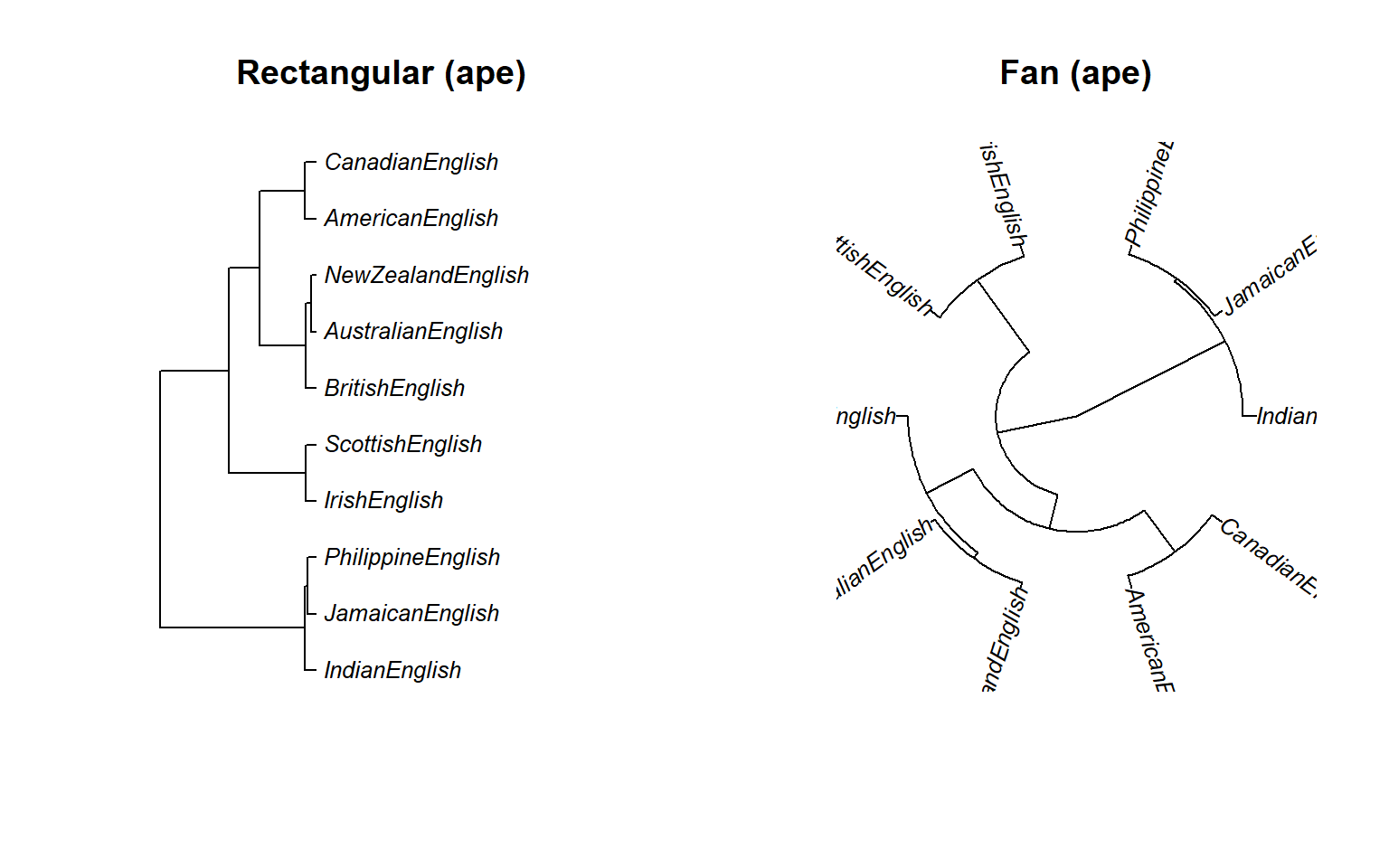

Publication-Quality Dendrograms with ape

par(mfrow = c(1, 2))

# Rectangular phylo dendrogram
plot(ape::as.phylo(cd), cex = 0.8, label.offset = 0.3,
     main = "Rectangular (ape)")

# Fan dendrogram — useful when many leaves
plot(ape::as.phylo(cd), type = "fan", cex = 0.8,
     main = "Fan (ape)")

par(mfrow = c(1, 1))

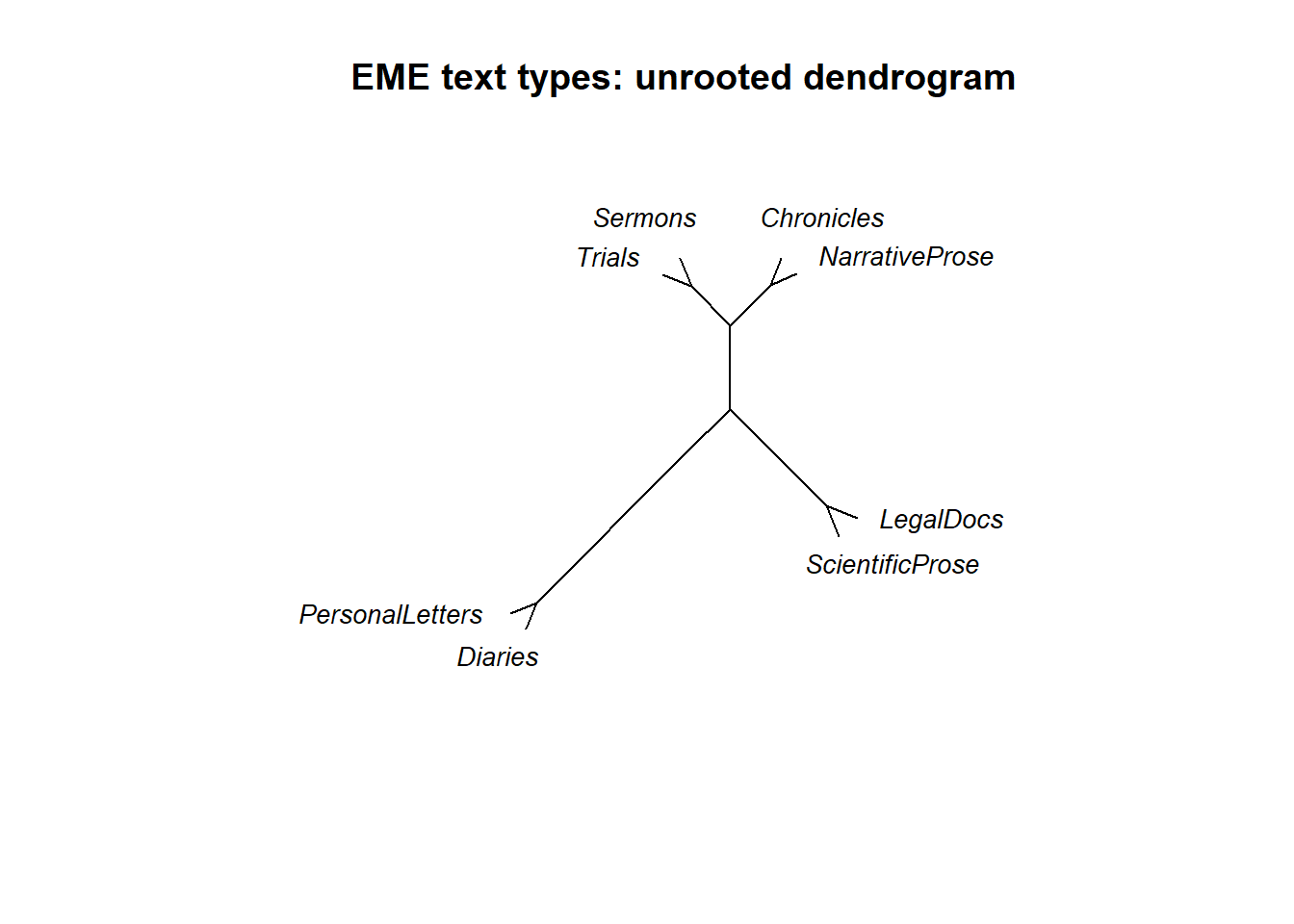

# Unrooted tree for EME data
plot(ape::as.phylo(cd_eme), type = "unrooted", cex = 0.85,
     label.offset = 0.5,
     main = "EME text types: unrooted dendrogram")

---

Identifying Distinctive Features

Section Overview

What you will learn: How to identify which features most distinguish one cluster from others; how to visualise feature importance as a sorted barplot; and how to test the statistical significance of feature differences between clusters using Fisher’s exact test

Mean Feature Differences

After identifying clusters, the natural next question is: what makes each cluster distinctive? Comparing mean feature values between clusters — on the standardised scale — reveals which features drive the separation.

English Varieties: Celtic vs. Non-Celtic

celtic <- clusts[c("IrishEnglish","ScottishEnglish"), ]
others <- clusts[!rownames(clusts) %in% c("IrishEnglish","ScottishEnglish"), ]

diff_celtic <- colMeans(celtic) - colMeans(others)

data.frame(
  Feature   = names(sort(diff_celtic)),
  Difference = round(sort(diff_celtic), 3),
  Direction  = ifelse(sort(diff_celtic) > 0, "More Celtic", "More non-Celtic")
) |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ Direction == "More Celtic",     color = "steelblue") |>
  flextable::color(i = ~ Direction == "More non-Celtic", color = "firebrick") |>
  flextable::set_caption("Feature differences: Celtic vs. non-Celtic (standardised)")

Feature	Difference	Direction
soitwas	1.483	More Celtic
tags	1.604	More Celtic
dt	1.623	More Celtic
youse	1.632	More Celtic
invartag	1.632	More Celtic
like	1.686	More Celtic
wh_cleft	1.704	More Celtic
nsr	1.706	More Celtic
nae_neg	1.768	More Celtic
clefts	1.830	More Celtic

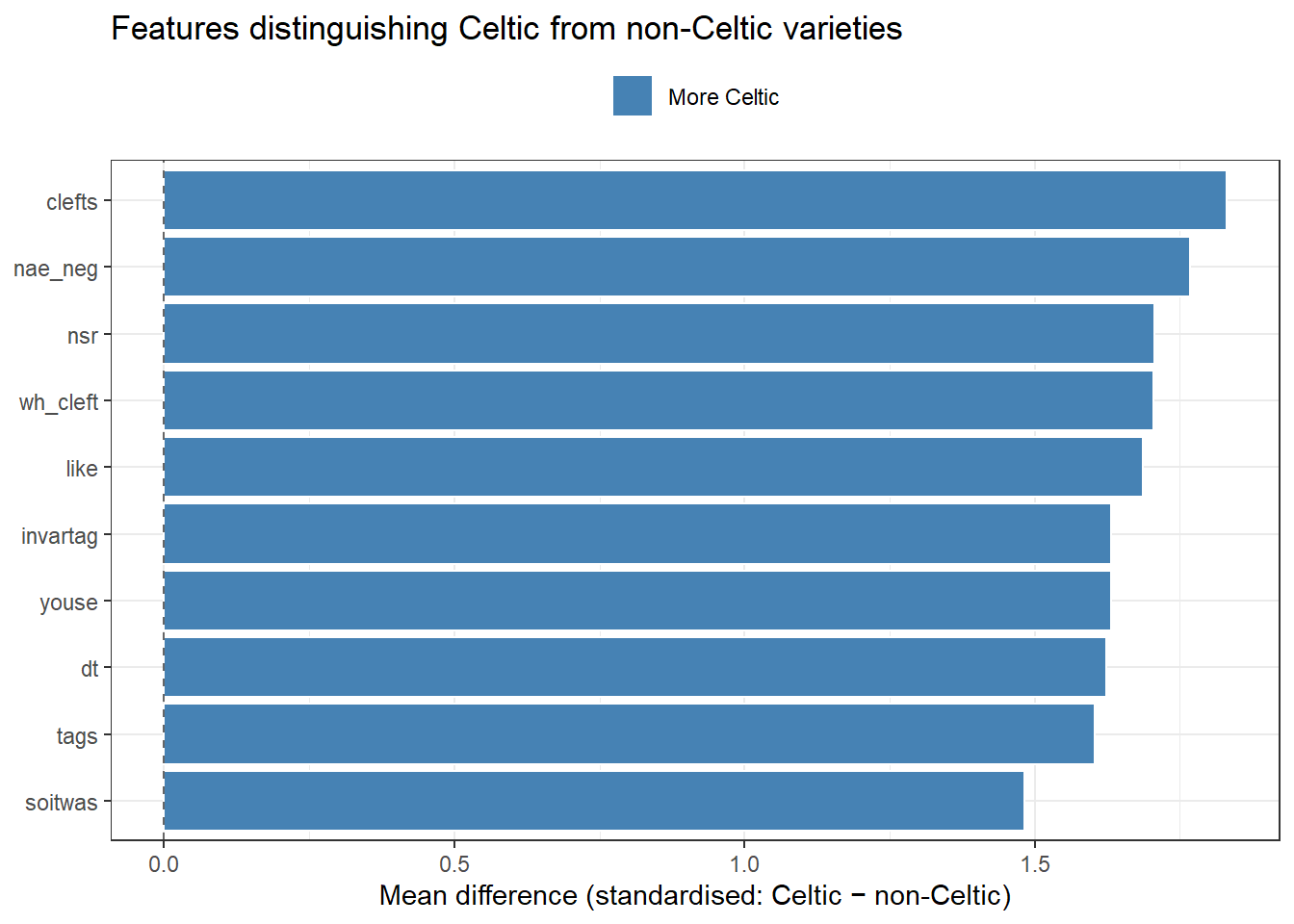

data.frame(Feature = names(sort(diff_celtic)), Diff = sort(diff_celtic)) |>
  ggplot(aes(x = Diff,
             y = reorder(Feature, Diff),
             fill = ifelse(Diff > 0, "More Celtic", "More non-Celtic"))) +
  geom_col(color = "white") +
  geom_vline(xintercept = 0, linetype = "dashed", color = "grey40") +
  scale_fill_manual(values = c("More Celtic"      = "steelblue",
                               "More non-Celtic"  = "firebrick")) +
  theme_bw() + theme(legend.position = "top") +
  labs(title  = "Features distinguishing Celtic from non-Celtic varieties",
       x = "Mean difference (standardised: Celtic − non-Celtic)",
       y = NULL, fill = NULL)

EME Text Types: Formal vs. Informal

# Identify formal (Scientific + Legal) vs informal (Letters + Diaries) clusters
formal   <- eme_sc[c("ScientificProse","LegalDocs"), ]
informal <- eme_sc[c("PersonalLetters","Diaries"), ]

diff_eme <- colMeans(formal) - colMeans(informal)

data.frame(
  Feature   = names(sort(diff_eme)),
  Difference = round(sort(diff_eme), 3),
  Direction  = ifelse(sort(diff_eme) > 0, "More formal", "More informal")
) |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ Direction == "More formal",   color = "steelblue") |>
  flextable::color(i = ~ Direction == "More informal", color = "firebrick") |>
  flextable::set_caption("Feature differences: formal vs. informal EME text types (standardised)")

Feature	Difference	Direction
FirstPron	-2.439	More informal
Questions	-2.433	More informal
PrivVerbs	-2.426	More informal
Hedges	-2.413	More informal
Imperatives	-2.385	More informal
PreseTense	-1.311	More informal
Coordinat	-0.919	More informal
PastTense	0.462	More formal
PerfectAsp	0.731	More formal
Passives	2.296	More formal
Subordinat	2.409	More formal
Nominalis	2.484	More formal

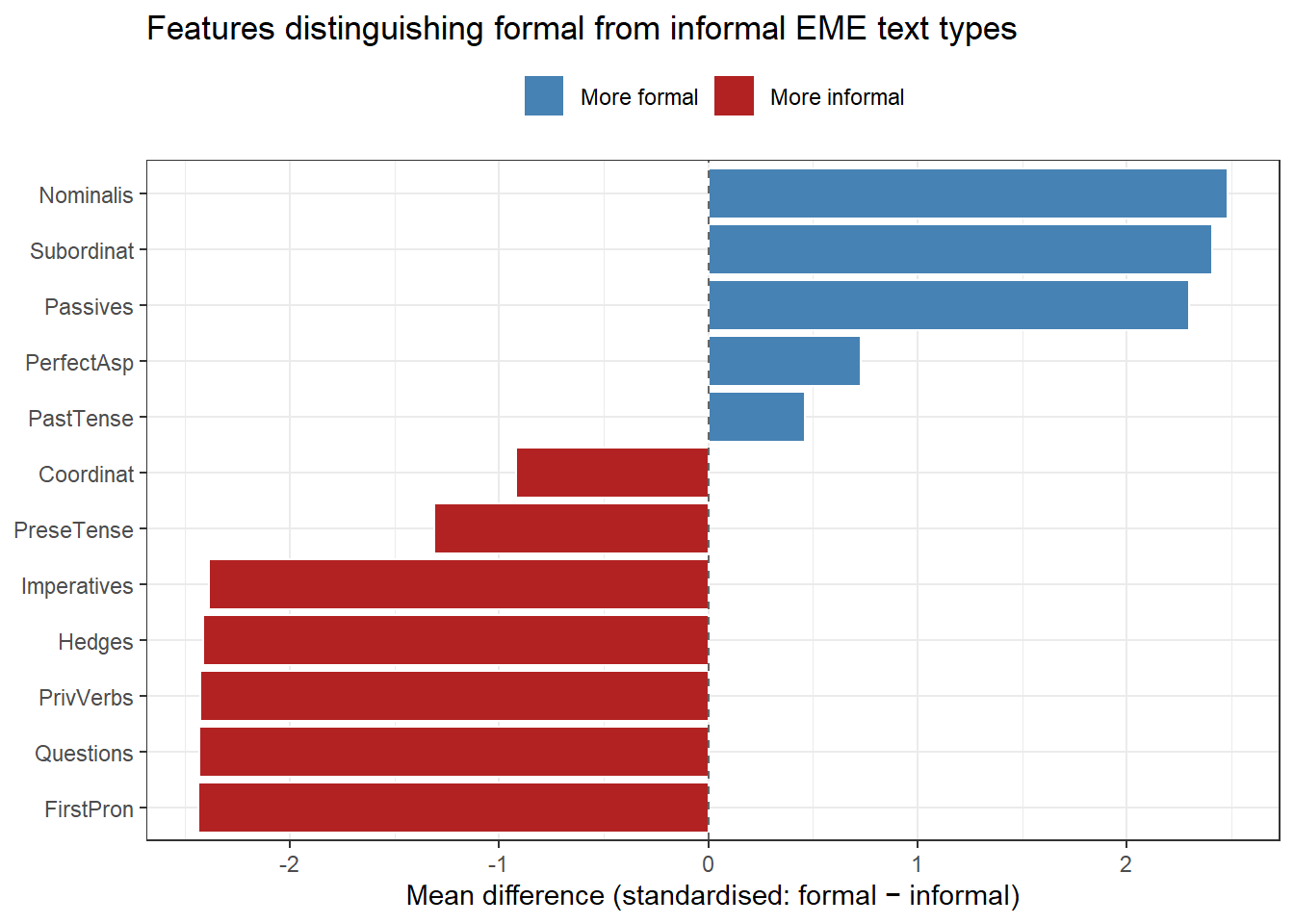

data.frame(Feature = names(sort(diff_eme)), Diff = sort(diff_eme)) |>
  ggplot(aes(x = Diff,
             y = reorder(Feature, Diff),
             fill = ifelse(Diff > 0, "More formal", "More informal"))) +
  geom_col(color = "white") +
  geom_vline(xintercept = 0, linetype = "dashed", color = "grey40") +
  scale_fill_manual(values = c("More formal"   = "steelblue",
                               "More informal" = "firebrick")) +
  theme_bw() + theme(legend.position = "top") +
  labs(title = "Features distinguishing formal from informal EME text types",
       x = "Mean difference (standardised: formal − informal)",
       y = NULL, fill = NULL)

Nominalisation and passives are strongly associated with formal written registers, while first-person pronouns, private verbs, and imperatives characterise informal personal writing — a pattern consistent with Biber’s Dimension 1 (Involved vs. Informational Production) (Biber 1995).

Fisher’s Exact Test for Nominal Features

For binary presence/absence data we can test statistically which features most strongly distinguish clusters:

# Binary data for varieties
clus_bin_names <- c("nae_neg","like","clefts","tags","youse",
                    "soitwas","dt","nsr","invartag","wh_cleft")

clus_bin <- data.frame(
  IrishEnglish      = c(1,1,1,1,1,1,1,1,1,1),
  ScottishEnglish   = c(1,1,1,1,1,1,1,1,1,1),
  BritishEnglish    = c(0,1,1,1,0,0,1,0,1,1),
  AustralianEnglish = c(0,1,1,1,0,0,1,0,1,1),
  NewZealandEnglish = c(0,1,1,1,0,0,1,0,1,1),
  AmericanEnglish   = c(0,1,1,1,0,0,0,0,1,0),
  CanadianEnglish   = c(0,1,1,1,0,0,0,0,1,0),
  JamaicanEnglish   = c(0,0,1,0,0,0,0,0,1,0),
  PhilippineEnglish = c(0,0,1,0,0,0,0,0,1,0),
  IndianEnglish     = c(0,0,1,0,0,0,0,0,1,0),
  row.names = clus_bin_names
)

clusts_bin     <- t(as.matrix(clus_bin))
cluster_factor <- as.factor(
  ifelse(rownames(clusts_bin) %in% c("IrishEnglish","ScottishEnglish"),
         "Celtic", "Other")
)
clus_df <- as.data.frame(clusts_bin)

fisher_res <- lapply(names(clus_df), function(feat) {
  tbl <- table(cluster_factor, clus_df[[feat]])
  if (all(dim(tbl) == c(2,2))) {
    ft <- fisher.test(tbl)
    data.frame(Feature = feat,
               p_value  = round(ft$p.value, 4),
               OddsRatio = round(unname(ft$estimate), 2))
  } else {
    data.frame(Feature = feat, p_value = NA_real_, OddsRatio = NA_real_)
  }
}) |>
  dplyr::bind_rows() |>
  dplyr::arrange(p_value)

fisher_res |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ !is.na(p_value) & p_value < .05, color = "steelblue") |>
  flextable::bold(i  = ~ !is.na(p_value) & p_value < .05) |>
  flextable::set_caption("Fisher's exact test: features distinguishing Celtic varieties (blue = p < .05)")

Feature	p_value	OddsRatio
nae_neg	0.0222	0
youse	0.0222	0
soitwas	0.0222	0
nsr	0.0222	0
dt	0.4444	0
wh_cleft	0.4444	0
like	1.0000	0
tags	1.0000	0
clefts
invartag

---

Heat Maps

Section Overview

What you will learn: What a clustered heat map is; how to produce one that combines hierarchical clustering on both rows and columns; how to read colour, dendrograms, and block patterns; and how to produce heat maps for both the English varieties and EME datasets

What Is a Clustered Heat Map?

A heat map displays a data matrix as a colour grid: each cell’s colour encodes the value of one variable (feature) for one object (variety/text type). When hierarchical clustering is applied to both rows and columns, the matrix is rearranged so that similar objects and similar features are adjacent — revealing block patterns that are invisible in the raw data table.

Heat maps are particularly effective when: - The dataset has many objects (N > 8) and many features (p > 6) - You want to communicate both cluster structure and which features drive each cluster - You are preparing a figure for publication that needs to stand alone without a separate dendrogram

Heat Map: English Varieties

gplots::heatmap.2(
  clusts,
  scale        = "none",
  dendrogram   = "both",
  trace        = "none",
  col          = colorRampPalette(c("steelblue","white","firebrick"))(100),
  margins      = c(10, 12),
  cexRow       = 0.85,
  cexCol       = 0.85,
  main         = "Heat map: 10 English varieties × 10 features",
  key.title    = "",
  key.xlab     = "z-score",
  density.info = "none"
)

Reading a Clustered Heat Map

• Rows = features; columns = varieties (or vice versa — check axis labels)
• Cell colour: red = feature more frequent than average (high z-score); blue = less frequent; white = average
• Column dendrogram (top): clusters of varieties with similar feature profiles — this is the same hierarchy as our main dendrogram
• Row dendrogram (left): clusters of features that co-vary across varieties — features that are both red (or both blue) in the same varieties cluster together
• Rectangular blocks: a red block in the upper-left means those features are notably high in those varieties — they are diagnostic of that cluster. A blue block means the features are notably absent.
• The colour scale is centred at z = 0 (the grand mean) — white cells are at the average, not at zero frequency

Heat Map: EME Text Types

gplots::heatmap.2(
  eme_sc,
  scale        = "none",
  dendrogram   = "both",
  trace        = "none",
  col          = colorRampPalette(c("steelblue","white","firebrick"))(100),
  margins      = c(10, 14),
  cexRow       = 0.80,
  cexCol       = 0.80,
  main         = "Heat map: 8 EME text types × 12 grammatical features",
  key.title    = "",
  key.xlab     = "z-score",
  density.info = "none"
)

The heat map reveals two major column-clusters (formal and informal registers) and at least two row-clusters: features associated with formal written prose (passives, nominalisation, subordination) appear as a red block in the formal varieties, while features associated with informal spoken-like language (first-person pronouns, private verbs, imperatives) appear as a red block in the informal varieties.

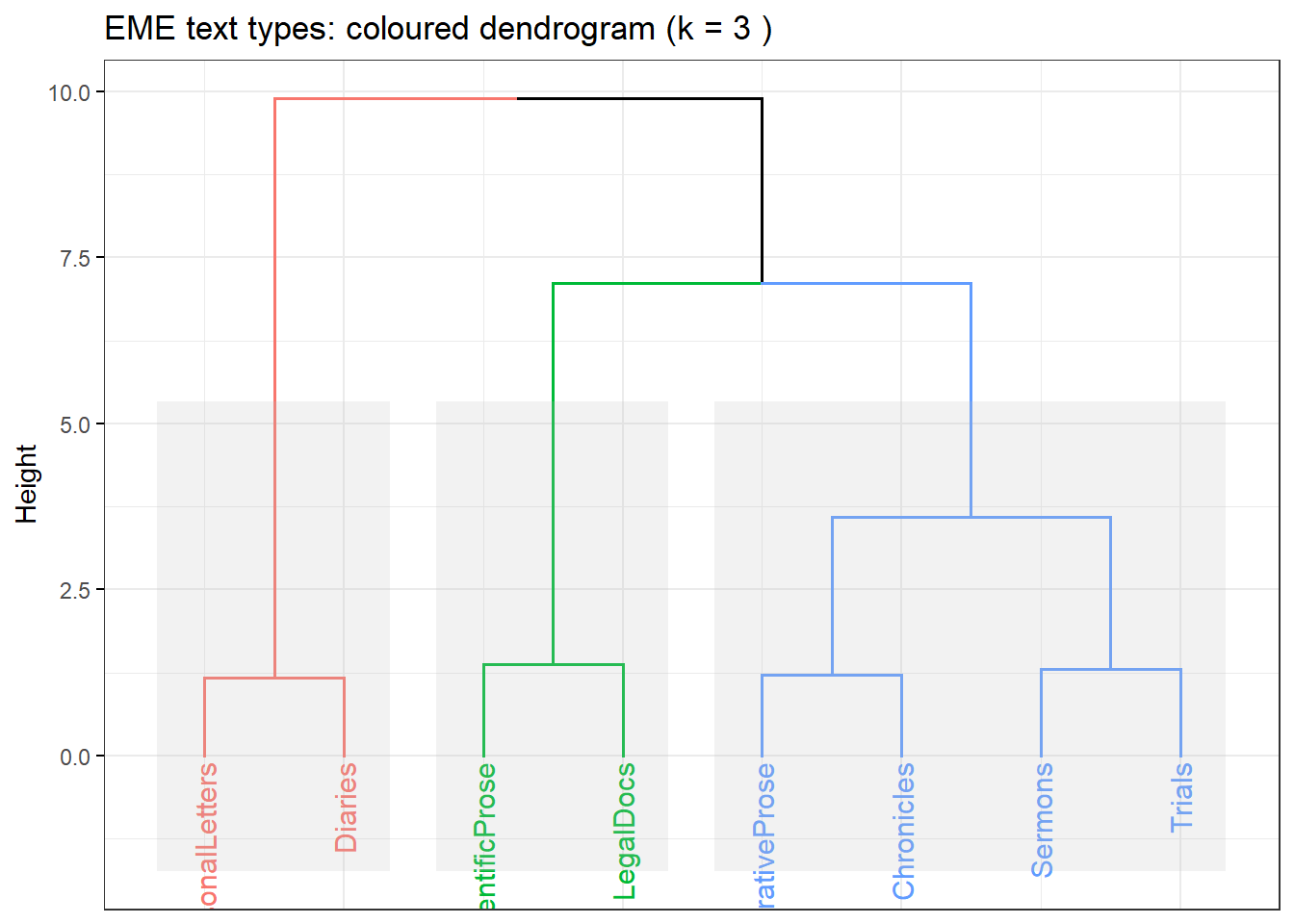

Coloured Dendrogram with factoextra

factoextra::fviz_dend(
  cd_eme,
  k                 = opt_k_eme,
  color_labels_by_k = TRUE,
  rect              = TRUE,
  rect_fill         = TRUE,
  ggtheme           = theme_bw(),
  main              = paste("EME text types: coloured dendrogram (k =", opt_k_eme, ")")
)

Exercise: Heat Maps

Q4. In a heat map of 15 dialect varieties × 20 phonological features, one dialect appears as an entirely white column (all cells near white/grey). What does this tell you about that dialect?

The dialect has an average profile across all features — it does not stand out as either high or low on any feature. It would likely appear near the centre of a cluster plot, close to the origin in a PCA or CA biplot.
The dialect is missing data — white cells always indicate NA values
The clustering algorithm failed to assign it to a cluster
The dialect is the most frequent overall — white means maximum frequency

---

Cluster Analysis on Nominal Data

Section Overview

What you will learn: How to cluster objects when data is binary (presence/absence); which distance measure to use and why; how to identify statistically significant distinguishing features; and a worked example using the binary English varieties dataset

Binary Data and the Jaccard Distance

When variables record whether a feature is present (1) or absent (0), the appropriate distance is the binary (Jaccard) distance. It ignores shared absences because in linguistics, two dialects both lacking a rare feature (e.g. neither has stigmatised youse) tells us less about their similarity than if both possess it.

clus_bin |>
  as.data.frame() |>
  tibble::rownames_to_column("Feature") |>
  flextable() |>
  flextable::set_table_properties(width = 1, layout = "autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size = 10) |>
  flextable::set_caption("Presence (1) / absence (0) of non-standard features")

Feature	IrishEnglish	ScottishEnglish	BritishEnglish	AustralianEnglish	NewZealandEnglish	AmericanEnglish	CanadianEnglish	JamaicanEnglish	PhilippineEnglish	IndianEnglish
nae_neg	1	1	0	0	0	0	0	0	0	0
like	1	1	1	1	1	1	1	0	0	0
clefts	1	1	1	1	1	1	1	1	1	1
tags	1	1	1	1	1	1	1	0	0	0
youse	1	1	0	0	0	0	0	0	0	0
soitwas	1	1	0	0	0	0	0	0	0	0
dt	1	1	1	1	1	0	0	0	0	0
nsr	1	1	0	0	0	0	0	0	0	0
invartag	1	1	1	1	1	1	1	1	1	1
wh_cleft	1	1	1	1	1	0	0	0	0	0

clustd_bin <- dist(t(as.matrix(clus_bin)), method = "binary")

round(as.matrix(clustd_bin), 2) |> as.data.frame() |>
  tibble::rownames_to_column("Variety") |>
  flextable() |>
  flextable::set_table_properties(width = 1, layout = "autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size = 9) |>
  flextable::set_caption("Binary (Jaccard) distance matrix")

Variety	IrishEnglish	ScottishEnglish	BritishEnglish	AustralianEnglish	NewZealandEnglish	AmericanEnglish	CanadianEnglish	JamaicanEnglish	PhilippineEnglish	IndianEnglish
IrishEnglish	0.0	0.0	0.40	0.40	0.40	0.60	0.60	0.80	0.80	0.80
ScottishEnglish	0.0	0.0	0.40	0.40	0.40	0.60	0.60	0.80	0.80	0.80
BritishEnglish	0.4	0.4	0.00	0.00	0.00	0.33	0.33	0.67	0.67	0.67
AustralianEnglish	0.4	0.4	0.00	0.00	0.00	0.33	0.33	0.67	0.67	0.67
NewZealandEnglish	0.4	0.4	0.00	0.00	0.00	0.33	0.33	0.67	0.67	0.67
AmericanEnglish	0.6	0.6	0.33	0.33	0.33	0.00	0.00	0.50	0.50	0.50
CanadianEnglish	0.6	0.6	0.33	0.33	0.33	0.00	0.00	0.50	0.50	0.50
JamaicanEnglish	0.8	0.8	0.67	0.67	0.67	0.50	0.50	0.00	0.00	0.00
PhilippineEnglish	0.8	0.8	0.67	0.67	0.67	0.50	0.50	0.00	0.00	0.00
IndianEnglish	0.8	0.8	0.67	0.67	0.67	0.50	0.50	0.00	0.00	0.00

cd_bin <- hclust(clustd_bin, method = "ward.D2")

# Silhouette to choose k
sil_bin <- sapply(2:(nrow(clusts_bin)-1), function(k) {
  summary(silhouette(cutree(cd_bin, k=k), clustd_bin))$avg.width
})
opt_k_bin <- which.max(sil_bin) + 1
cat("Optimal k (nominal data):", opt_k_bin, "\n")

Optimal k (nominal data): 4

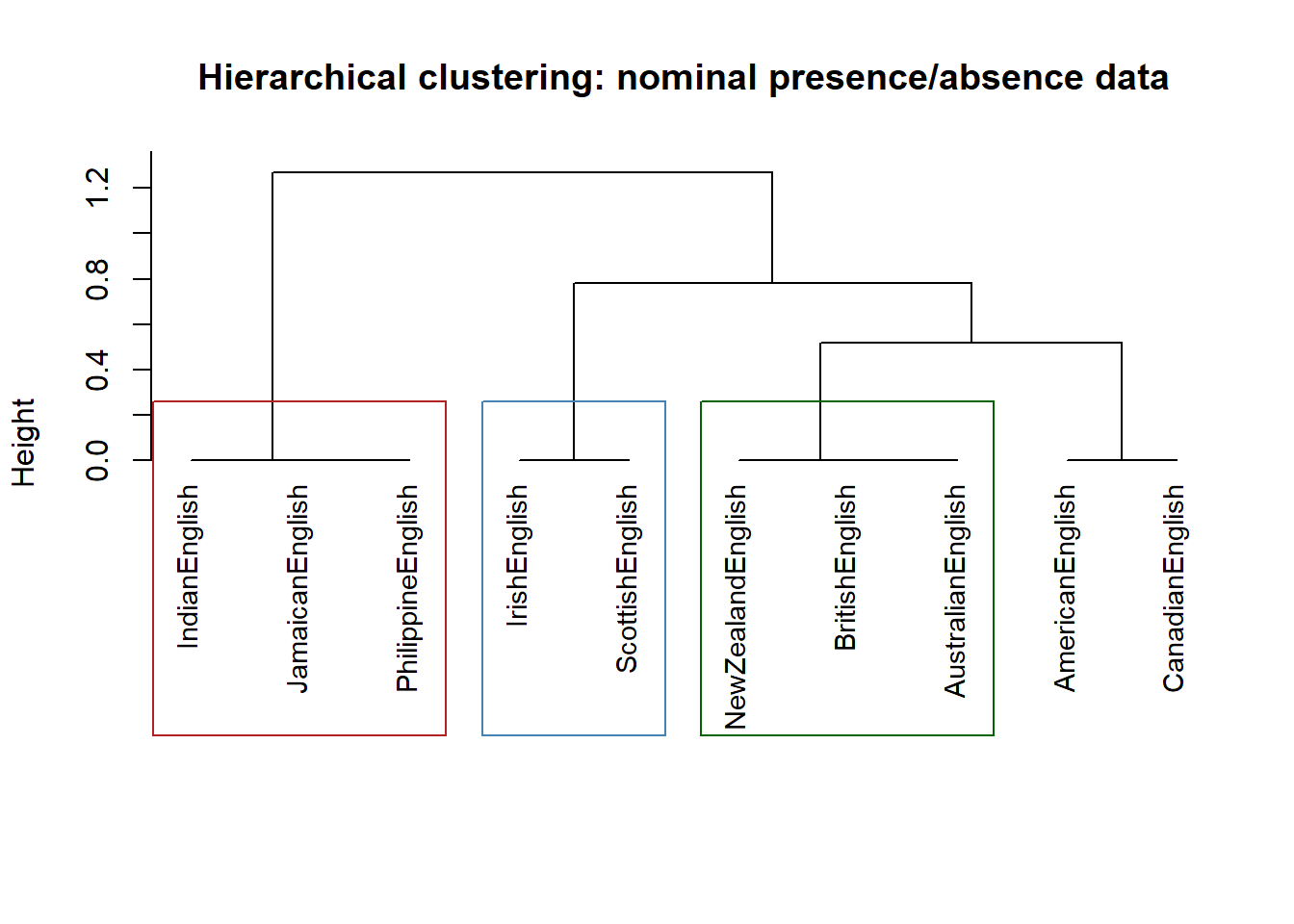

plot(cd_bin, hang = -1, cex = 0.9,
     main = "Hierarchical clustering: nominal presence/absence data",
     xlab = "", sub = "")
rect.hclust(cd_bin, k = opt_k_bin,
            border = c("firebrick","steelblue","darkgreen")[1:opt_k_bin])

Exercise: Nominal Data and Distance Measures

Q5. You cluster 10 English dialects on 20 binary phonological features using Euclidean distance on the 0/1 matrix. Your colleague says Jaccard distance would have been more appropriate. What is the key difference, and does it matter here?

Euclidean distance treats shared absences (0,0) the same as shared presences (1,1) when computing similarity. Jaccard ignores shared absences, giving more weight to shared presences. For sparse binary linguistic data (many features absent in most dialects), Jaccard is more appropriate because shared absences are less linguistically informative than shared presences.
Jaccard distance is only appropriate for text data — for dialect features, Euclidean is always preferred
Euclidean distance cannot be computed on binary data — it is only valid for continuous variables
There is no difference — Euclidean and Jaccard distance produce identical results for binary data

---

k-Means Clustering

Section Overview

What you will learn: How k-means clustering works and how it differs from hierarchical clustering; how to choose k; how to fit stable k-means models with multiple random starts; how to visualise results with cluster plots and silhouette plots; how to compare k-means and hierarchical solutions; and worked examples on both the English varieties and EME text-type datasets

How k-Means Works

k-means partitions the data into exactly \(k\) non-overlapping groups by minimising the total within-cluster sum of squares (TWSS):

\[\text{TWSS} = \sum_{j=1}^{k} \sum_{x_i \in C_j} \|x_i - \mu_j\|^2\]

where \(\mu_j\) is the centroid (mean vector) of cluster \(j\). The algorithm works iteratively:

1. Initialise: Randomly place \(k\) centroids (or use the improved kmeans++ initialisation)
2. Assign: Each object joins the cluster with the nearest centroid
3. Update: Recompute each centroid as the mean of its current members
4. Repeat steps 2–3 until assignments do not change (convergence)

Because the algorithm can converge to different local minima depending on the starting configuration, always use nstart > 1 (typically 25) to run multiple random starts and keep the best solution.

Feature	k-Means	Hierarchical
Requires specifying k?	Yes — before fitting	No — decided after fitting
Output	Flat partition + centroids	Full dendrogram + membership
Data type requirement	Continuous numeric only	Numeric, binary, or mixed (Gower)
Scalability	High (millions of rows)	Moderate (< ~1,000 objects)
Reproducibility	Sensitive to initialisation — use nstart=25	Deterministic given same data + linkage
Visualisation	Cluster plot, silhouette	Dendrogram, heat map, ape phylo
Bootstrap validation?	Not built-in	pvclust
Detects non-spherical clusters?	No — assumes spherical, equal-size clusters	Yes (especially with single linkage)

Choosing k for k-Means

p1 <- factoextra::fviz_nbclust(clusts, kmeans, method = "silhouette",
                                k.max  = nrow(clusts) - 1,
                                nstart = 25) +
  theme_bw() + labs(title = "Silhouette: English varieties")

p2 <- factoextra::fviz_nbclust(clusts, kmeans, method = "wss",
                                k.max  = nrow(clusts) - 1,
                                nstart = 25) +
  theme_bw() + labs(title = "Elbow (WSS): English varieties")

gridExtra::grid.arrange(p1, p2, ncol = 2)

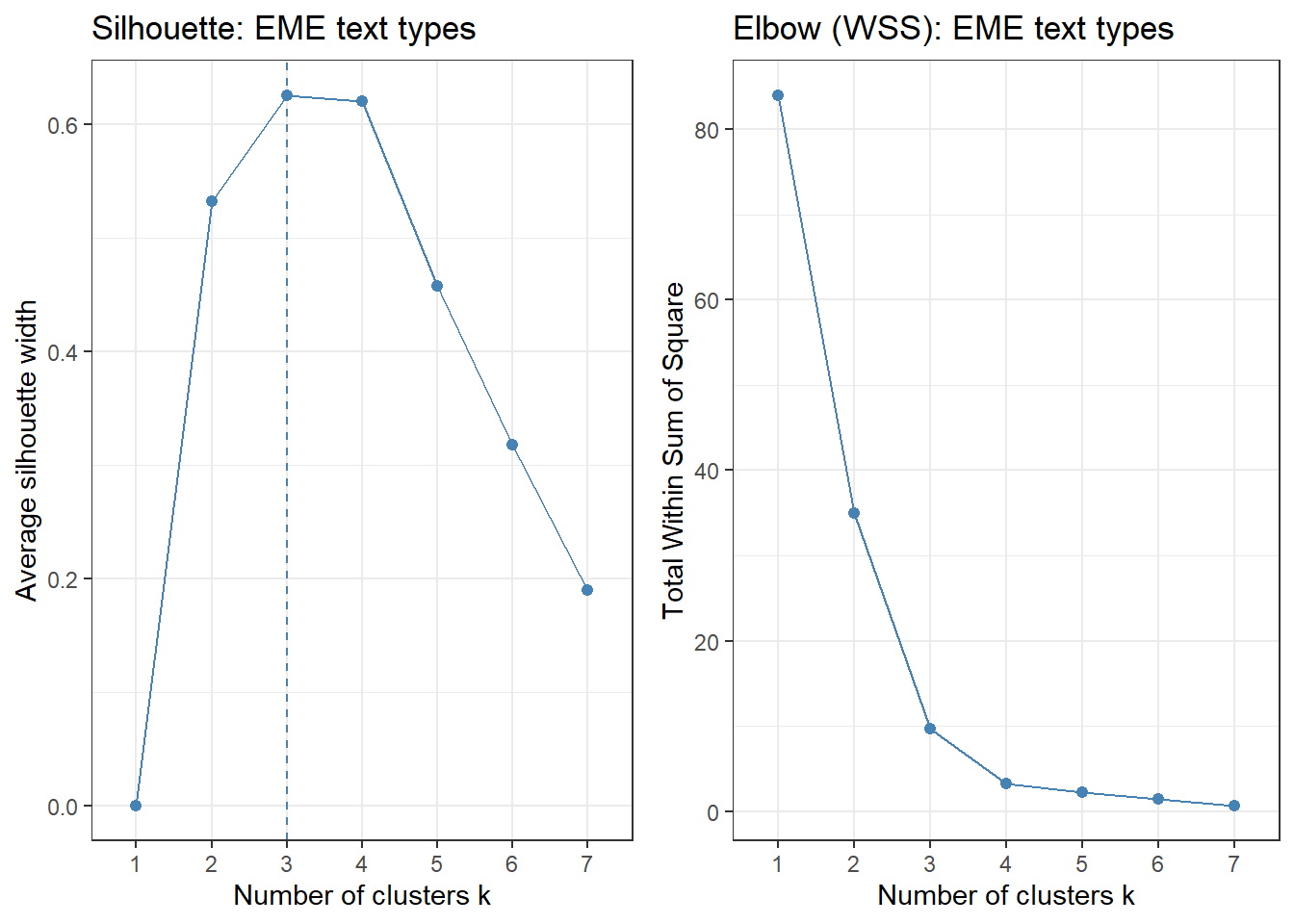

p3 <- factoextra::fviz_nbclust(eme_sc, kmeans, method = "silhouette",
                                k.max  = nrow(eme_sc) - 1,
                                nstart = 25) +
  theme_bw() + labs(title = "Silhouette: EME text types")

p4 <- factoextra::fviz_nbclust(eme_sc, kmeans, method = "wss",
                                k.max  = nrow(eme_sc) - 1,
                                nstart = 25) +
  theme_bw() + labs(title = "Elbow (WSS): EME text types")

gridExtra::grid.arrange(p3, p4, ncol = 2)

Fitting k-Means: English Varieties

set.seed(2026)
km_eng <- kmeans(clusts,
                 centers  = opt_k_eng,
                 nstart   = 25,
                 iter.max = 100)
km_eng

K-means clustering with 4 clusters of sizes 3, 2, 2, 3

Cluster means:
  nae_neg    like  clefts    tags   youse soitwas      dt     nsr invartag
1 -1.1907 -1.2183 -1.1695 -1.2498 -1.1908 -1.2359 -1.1371 -1.2322  -1.2139
2  1.4143  1.3490  1.4642  1.2833  1.3055  1.1865  1.2984  1.3645   1.3059
3 -0.2467 -0.2547 -0.2461 -0.2005 -0.3484 -0.2977 -0.5114 -0.1490  -0.2910
4  0.4122  0.4888  0.3574  0.5280  0.5528  0.6433  0.6124  0.4218   0.5373
  wh_cleft
1  -1.1598
2   1.3633
3  -0.3724
4   0.4992

Clustering vector:
     IrishEnglish   ScottishEnglish    BritishEnglish AustralianEnglish
                2                 2                 4                 4
NewZealandEnglish   AmericanEnglish   CanadianEnglish   JamaicanEnglish
                4                 3                 3                 1
PhilippineEnglish     IndianEnglish
                1                 1

Within cluster sum of squares by cluster:
[1] 0.4923 0.2378 0.2988 0.3164
 (between_SS / total_SS =  98.5 %)

Available components:

[1] "cluster"      "centers"      "totss"        "withinss"     "tot.withinss"
[6] "betweenss"    "size"         "iter"         "ifault"

The printed output shows: - Cluster sizes: number of objects per cluster - Cluster means: centroid coordinates on each feature (standardised) - Within-cluster SS: sum of squared distances from objects to their centroid - Between-SS / Total-SS: proportion of total variance captured by the cluster structure — higher = better-separated clusters

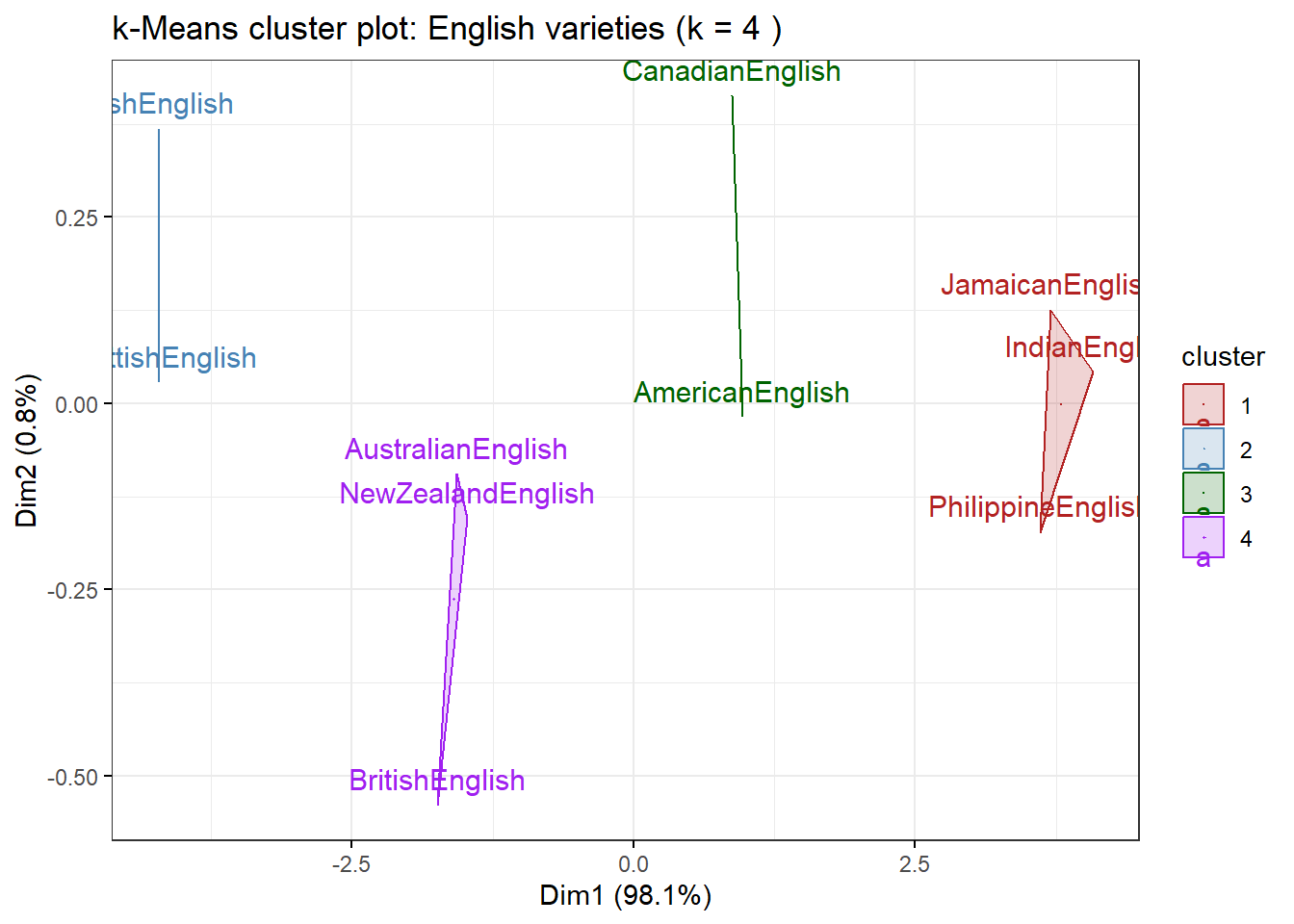

# Cluster plot (PCA-projected)
factoextra::fviz_cluster(
  km_eng, data = clusts,
  palette      = c("firebrick","steelblue","darkgreen","purple")[1:opt_k_eng],
  geom         = "text",
  ellipse.type = "convex",
  ggtheme      = theme_bw(),
  main         = paste("k-Means cluster plot: English varieties (k =", opt_k_eng, ")")
)

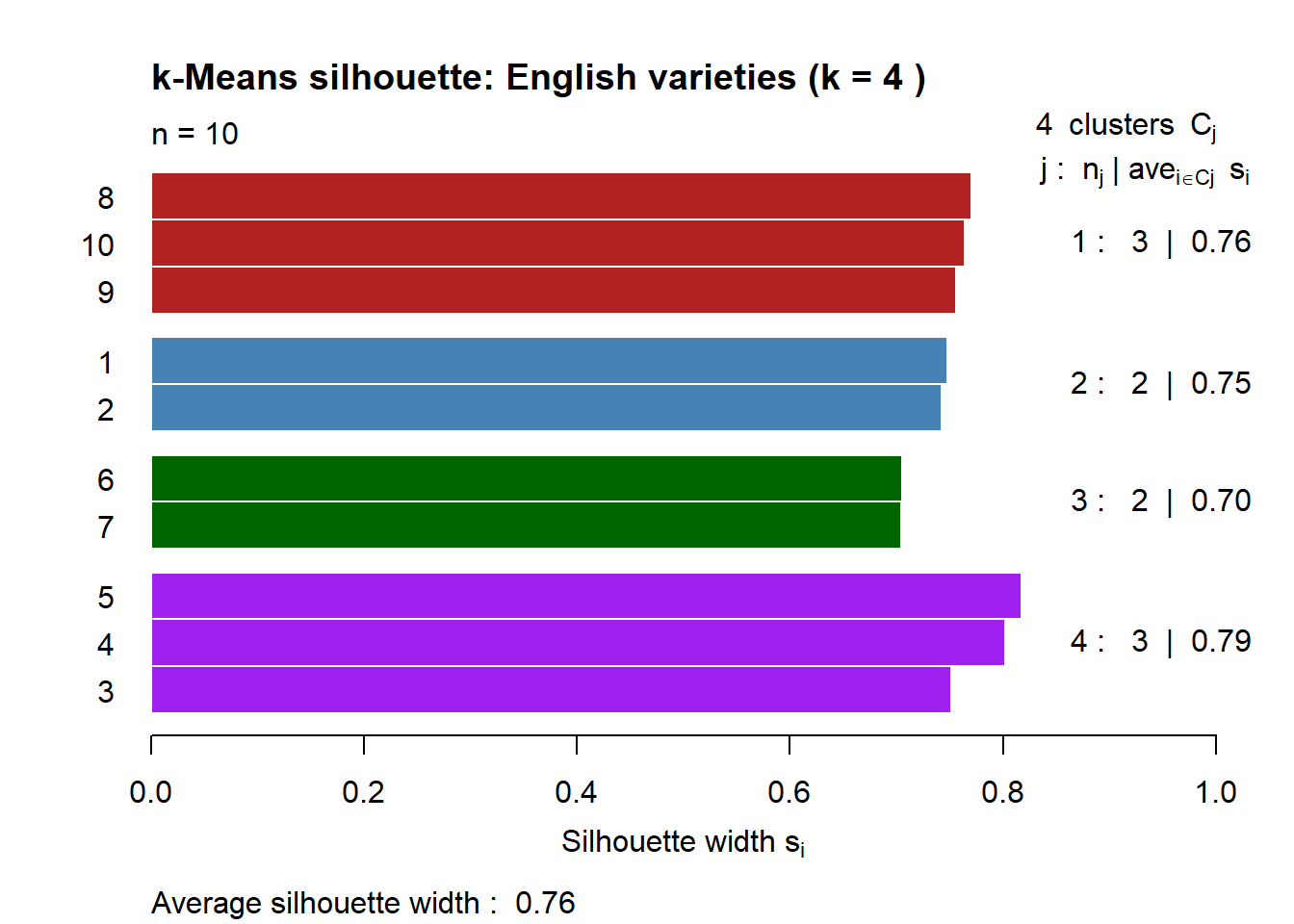

sil_km_eng <- silhouette(km_eng$cluster, clustd)
plot(sil_km_eng,
     col  = c("firebrick","steelblue","darkgreen","purple")[1:opt_k_eng],
     main = paste("k-Means silhouette: English varieties (k =", opt_k_eng, ")"))

cat("Average silhouette width (k-means, English):",
    round(mean(sil_km_eng[,3]), 3), "\n")

Average silhouette width (k-means, English): 0.756

Fitting k-Means: EME Text Types

set.seed(2026)
km_eme <- kmeans(eme_sc,
                 centers  = opt_k_eme,
                 nstart   = 25,
                 iter.max = 100)

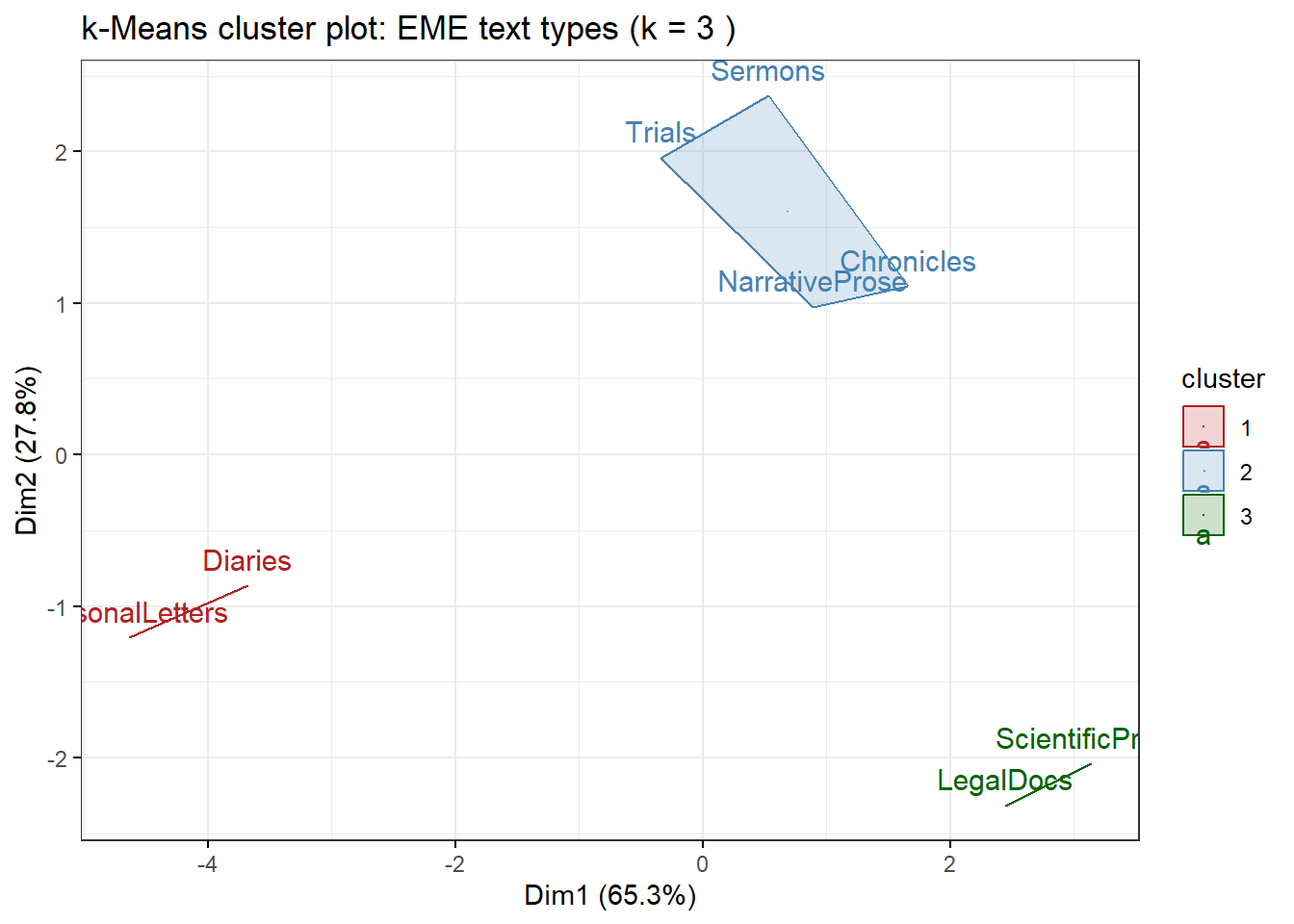

factoextra::fviz_cluster(
  km_eme, data = eme_sc,
  palette      = c("firebrick","steelblue","darkgreen")[1:opt_k_eme],
  geom         = "text",
  ellipse.type = "convex",
  ggtheme      = theme_bw(),
  main         = paste("k-Means cluster plot: EME text types (k =", opt_k_eme, ")")
)

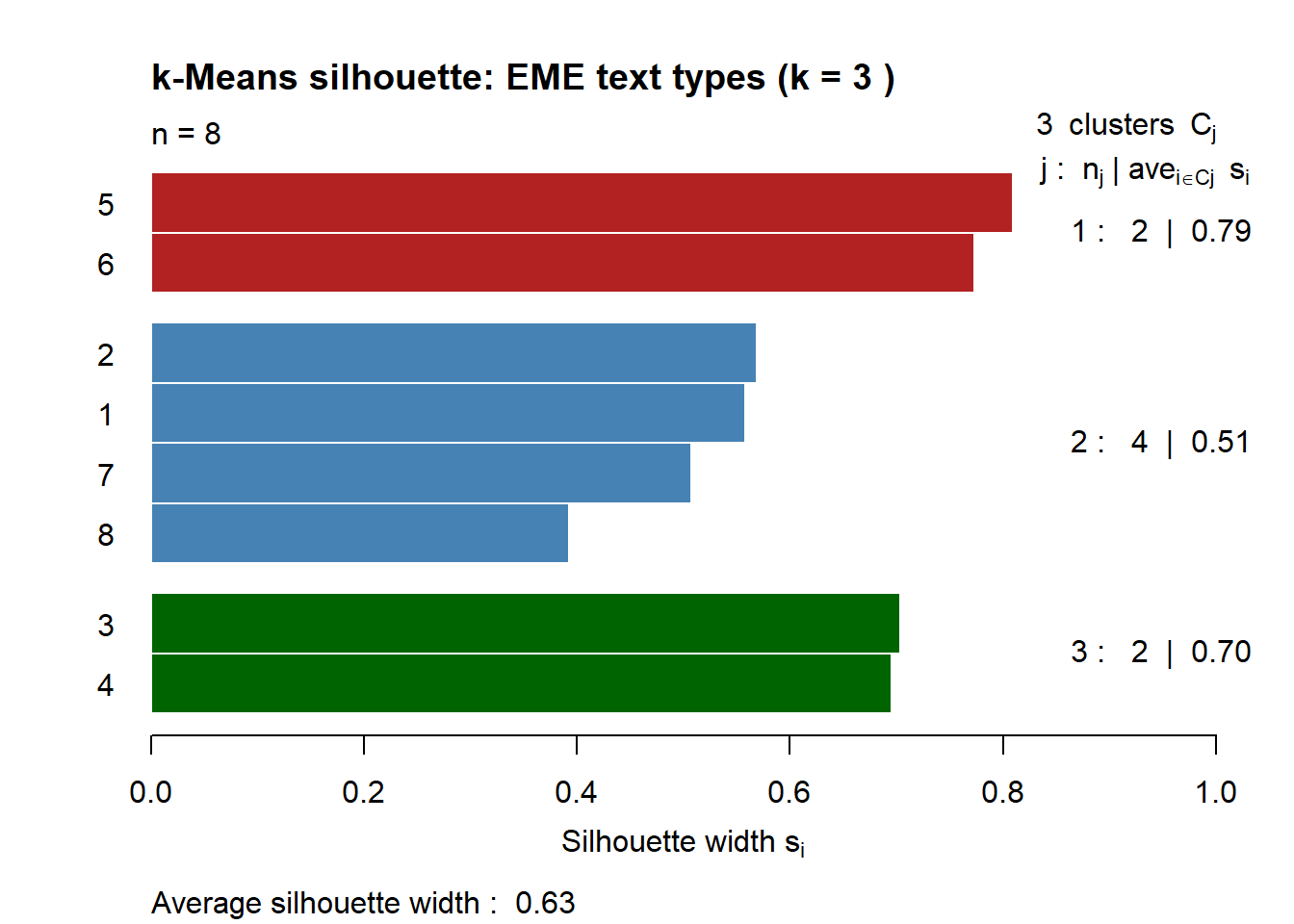

sil_km_eme <- silhouette(km_eme$cluster, eme_dist)
plot(sil_km_eme,
     col  = c("firebrick","steelblue","darkgreen")[1:opt_k_eme],
     main = paste("k-Means silhouette: EME text types (k =", opt_k_eme, ")"))

cat("Average silhouette width (k-means, EME):",
    round(mean(sil_km_eme[,3]), 3), "\n")

Average silhouette width (k-means, EME): 0.626

Comparing Hierarchical and k-Means Solutions

hc_groups_eng <- cutree(cd, k = opt_k_eng)

comparison_eng <- data.frame(
  Object       = names(hc_groups_eng),
  Hierarchical = paste0("H", hc_groups_eng),
  kMeans       = paste0("K", km_eng$cluster)
) |>
  dplyr::mutate(
    Agreement = ifelse(
      as.integer(factor(Hierarchical)) == as.integer(factor(kMeans)),
      "✓ Agree", "✗ Differ"
    )
  )

comparison_eng |>
  flextable() |>
  flextable::set_table_properties(width = .6, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ Agreement == "✓ Agree", color = "steelblue") |>
  flextable::color(i = ~ Agreement == "✗ Differ", color = "firebrick") |>
  flextable::set_caption("Hierarchical vs. k-Means assignments: English varieties")

Object	Hierarchical	kMeans	Agreement
IrishEnglish	H1	K2	✗ Differ
ScottishEnglish	H1	K2	✗ Differ
BritishEnglish	H2	K4	✗ Differ
AustralianEnglish	H2	K4	✗ Differ
NewZealandEnglish	H2	K4	✗ Differ
AmericanEnglish	H3	K3	✓ Agree
CanadianEnglish	H3	K3	✓ Agree
JamaicanEnglish	H4	K1	✗ Differ
PhilippineEnglish	H4	K1	✗ Differ
IndianEnglish	H4	K1	✗ Differ

hc_groups_eme <- cutree(cd_eme, k = opt_k_eme)

comparison_eme <- data.frame(
  Object       = names(hc_groups_eme),
  Hierarchical = paste0("H", hc_groups_eme),
  kMeans       = paste0("K", km_eme$cluster)
) |>
  dplyr::mutate(
    Agreement = ifelse(
      as.integer(factor(Hierarchical)) == as.integer(factor(kMeans)),
      "✓ Agree", "✗ Differ"
    )
  )

comparison_eme |>
  flextable() |>
  flextable::set_table_properties(width = .6, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ Agreement == "✓ Agree", color = "steelblue") |>
  flextable::color(i = ~ Agreement == "✗ Differ", color = "firebrick") |>
  flextable::set_caption("Hierarchical vs. k-Means assignments: EME text types")

Object	Hierarchical	kMeans	Agreement
Sermons	H1	K2	✗ Differ
Trials	H1	K2	✗ Differ
ScientificProse	H2	K3	✗ Differ
LegalDocs	H2	K3	✗ Differ
PersonalLetters	H3	K1	✗ Differ
Diaries	H3	K1	✗ Differ
NarrativeProse	H1	K2	✗ Differ
Chronicles	H1	K2	✗ Differ

When the Two Methods Disagree

Objects assigned differently by hierarchical and k-means clustering are typically borderline cases sitting between clusters in the feature space. Their assignment is less certain than core cluster members and warrants cautious interpretation. Consider reporting: (a) which objects both methods agree on (the stable core of each cluster); (b) which objects differ (the boundary cases); and (c) the average silhouette width of the disagreeing objects — low values confirm they are genuinely ambiguous.

There is no problem — choosing the most linguistically meaningful solution is appropriate
Running with nstart=1 means each run may converge to a different local minimum of the WSS objective. Selecting the solution that 'looks best' introduces researcher degrees of freedom — the same bias as p-hacking. The fix is nstart=25 (or higher), which runs 25 random starts and automatically retains the solution with the lowest total WSS. Setting a seed with set.seed() ensures reproducibility. The chosen solution should be the objectively best WSS, not the most convenient one.
k-Means should not be used for dialect data at all — use hierarchical clustering
The problem is using only k=3; she should try all values of k and report the best

---

Correspondence Analysis

Section Overview

What you will learn: What correspondence analysis is and when to use it; how to set up a contingency table; how to run and evaluate a CA; how to read a biplot step by step; how to interpret dimensions, contributions, and the scree plot; and how to apply CA to two linguistic datasets — amplifier/adjective co-occurrences and L2 learner error types

What Is Correspondence Analysis?

Correspondence analysis (CA) is a multivariate technique for the association structure of a contingency table — a cross-tabulation of two categorical variables. It produces a low-dimensional representation of both row and column categories so that categories that co-occur above chance are placed close together.

CA is closely related to PCA, but operates on count data rather than continuous measurements. It is particularly well-suited to:

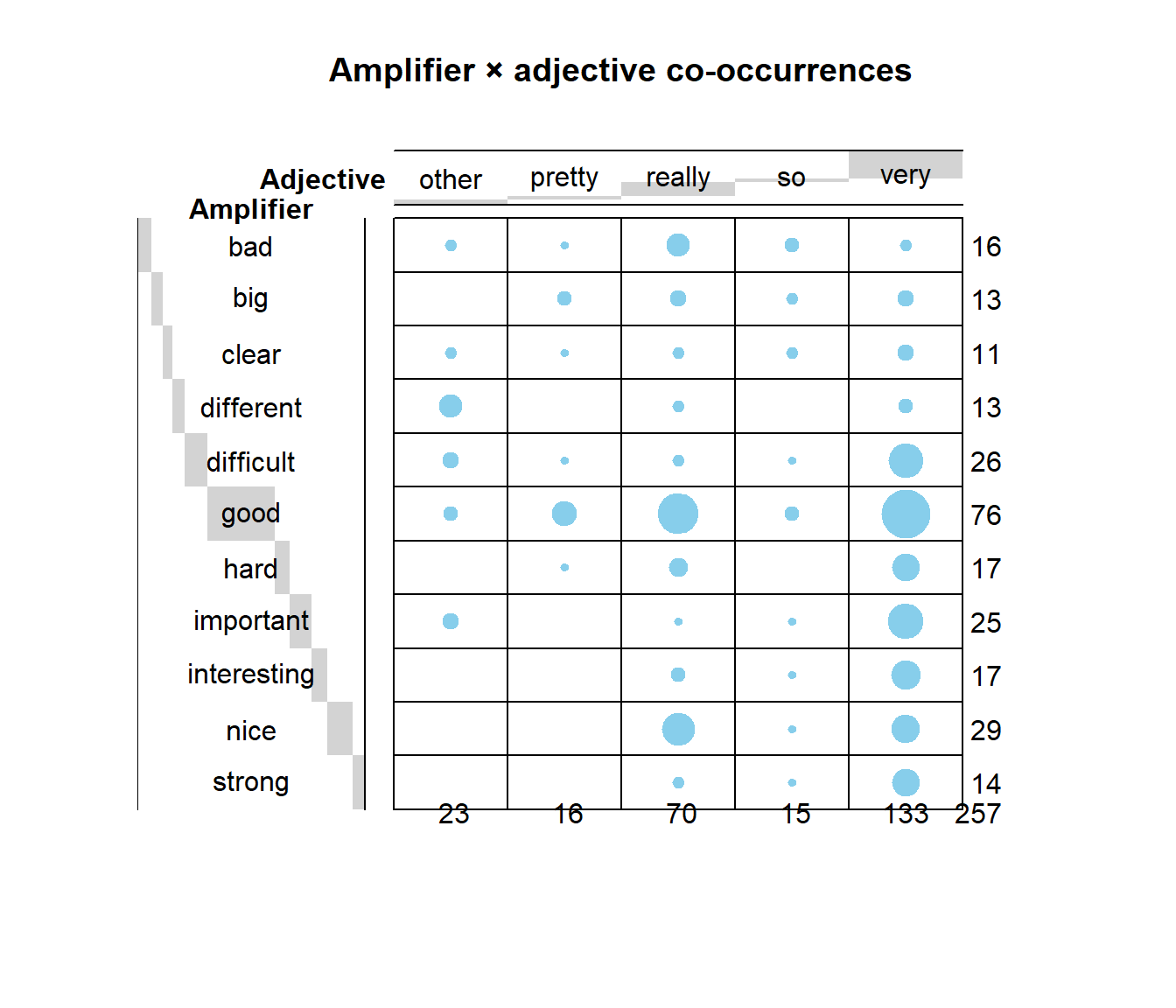

• Corpus linguistics: which amplifiers co-occur with which adjectives?
• Sociolinguistics: which discourse features are associated with which speaker groups?
• SLA research: which error types characterise which L2 learner groups?
• Register studies: which grammatical constructions are characteristic of which registers?
• Historical linguistics: which sound changes cluster in which language varieties?

Feature	Correspondence Analysis	Hierarchical / k-Means
Input data	Contingency table (counts/frequencies)	Distance matrix (any data type)
Output	Row and column coordinates in shared space	Dendrogram or flat partition
Visualisation	Biplot (rows and columns together)	Dendrogram, heat map, cluster plot
Tests association?	Yes — chi-squared test first	No — exploratory only
Number of dimensions	Typically 2–3 for interpretation	Full hierarchy (hierarchical) / flat (k-means)
Best linguistic use	Two-way associations between categorical variables	Finding groups of similar objects

Dataset 1: Amplifier–Adjective Co-Occurrences

Loading and Simplifying the Data

vsmdata <- base::readRDS(here::here("tutorials/clust/data/vsd.rda"), "rb")
cat("Rows:", nrow(vsmdata), "| Amplifiers:", n_distinct(vsmdata$Amplifier),
    "| Adjectives:", n_distinct(vsmdata$Adjective), "\n")

Rows: 5000 | Amplifiers: 25 | Adjectives: 130

vsmdata_simp <- vsmdata |>
  dplyr::filter(Amplifier != 0,
                !Adjective %in% c("many","much")) |>
  dplyr::group_by(Amplifier) |>
  dplyr::mutate(AmpFreq = dplyr::n()) |>
  dplyr::ungroup() |>
  dplyr::mutate(Amplifier = ifelse(AmpFreq > 20, Amplifier, "other")) |>
  dplyr::group_by(Adjective) |>
  dplyr::mutate(AdjFreq = dplyr::n()) |>
  dplyr::ungroup() |>
  dplyr::filter(AdjFreq > 10, Adjective != "other") |>
  dplyr::select(-AmpFreq, -AdjFreq)

cat("Retained rows:", nrow(vsmdata_simp),
    "| Amplifiers:", n_distinct(vsmdata_simp$Amplifier),
    "| Adjectives:", n_distinct(vsmdata_simp$Adjective), "\n")

Retained rows: 257 | Amplifiers: 5 | Adjectives: 11

Contingency Table and Balloon Plot

dt <- as.matrix(table(vsmdata_simp$Adjective, vsmdata_simp$Amplifier))

# Display table
as.data.frame.matrix(dt) |>
  tibble::rownames_to_column("Adjective") |>
  flextable() |>
  flextable::set_table_properties(width = .75, layout = "autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size = 10) |>
  flextable::set_caption("Adjective × amplifier contingency table")

Adjective	other	pretty	really	so	very
bad	2	1	8	3	2
big	0	3	4	2	4
clear	2	1	2	2	4
different	8	0	2	0	3
difficult	4	1	2	1	18
good	3	9	25	3	36
hard	0	1	5	0	11
important	4	0	1	1	19
interesting	0	0	3	1	13
nice	0	0	16	1	12
strong	0	0	2	1	11

gplots::balloonplot(t(dt), main = "Amplifier × adjective co-occurrences",
                   xlab = "Adjective", ylab = "Amplifier",
                   label = FALSE, show.margins = TRUE)

Chi-Squared Test

chisq_amp <- chisq.test(dt)
cat(sprintf("Chi-squared(df=%d) = %.2f, p %s\n",
            chisq_amp$parameter, chisq_amp$statistic,
            ifelse(chisq_amp$p.value < .001, "< .001",
                   paste("=", round(chisq_amp$p.value, 3)))))

Chi-squared(df=40) = 124.40, p < .001

Running and Evaluating the CA

res_ca <- FactoMineR::CA(dt, graph = FALSE)

# Eigenvalues and explained variance
eig_amp <- get_eigenvalue(res_ca)
round(eig_amp, 3) |> as.data.frame() |>
  tibble::rownames_to_column("Dimension") |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("CA eigenvalues: amplifier data")

Dimension	eigenvalue	variance.percent	cumulative.variance.percent
Dim.1	0.241	49.868	49.87
Dim.2	0.147	30.345	80.21
Dim.3	0.061	12.654	92.87
Dim.4	0.035	7.133	100.00

factoextra::fviz_screeplot(res_ca, addlabels = TRUE,
                            main = "Scree plot: amplifier CA") +
  theme_bw()

How Many Dimensions to Interpret?

Retain and interpret dimensions that together explain ≥ 70–80% of the total inertia. The scree plot helps: dimensions to the left of the “elbow” contain most of the systematic association structure. For a 2D biplot, Dimensions 1 and 2 are used regardless — but the interpretation should acknowledge what proportion of inertia they represent.

The Biplot

factoextra::fviz_ca_biplot(
  res_ca, repel = TRUE,
  col.row = "steelblue", col.col = "firebrick",
  ggtheme = theme_bw()
) +
  labs(title    = "CA biplot: amplifiers and adjectives",
       subtitle = "Blue = adjectives | Red = amplifiers",
       caption  = paste0("Dim 1: ", round(eig_amp[1,2], 1),
                         "% | Dim 2: ", round(eig_amp[2,2], 1), "% of inertia"))

Reading a CA Biplot: Five Steps

1. Distance from origin: Objects near the origin have profiles close to the average — not strongly associated with any specific category. Objects far from the origin are distinctive.
2. Row–column proximity: A row category (adjective) near a column category (amplifier) co-occurs more than expected by chance. If really and nice are close, really is the preferred amplifier for nice.
3. Dimension 1 (horizontal axis): The dominant association gradient. Objects at opposite ends have the most contrasting profiles — read this as a continuum between two usage poles.
4. Dimension 2 (vertical axis): The secondary gradient, orthogonal to Dimension 1. Some objects are only differentiated on this dimension.
5. Clusters of categories: Groups of adjectives and amplifiers appearing together share similar co-occurrence profiles.

Row and Column Contributions

# Which adjectives contribute most to Dimension 1?
as.data.frame(res_ca$row$contrib) |>
  tibble::rownames_to_column("Adjective") |>
  dplyr::select(Adjective, `Dim 1`, `Dim 2`) |>
  dplyr::mutate(across(where(is.numeric), \(x) round(x, 2))) |>
  dplyr::arrange(desc(`Dim 1`)) |>
  head(8) |>
  flextable() |>
  flextable::set_table_properties(width = .5, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Top 8 adjective contributions to CA dimensions (%)")

Adjective	Dim 1	Dim 2
different	64.70	8.84
nice	7.48	3.01
important	7.16	16.35
good	6.40	1.88
difficult	5.10	8.77
big	4.41	7.36
hard	1.97	3.00
clear	1.41	2.97

# Amplifier contributions
as.data.frame(res_ca$col$contrib) |>
  tibble::rownames_to_column("Amplifier") |>
  dplyr::mutate(across(where(is.numeric), \(x) round(x, 2))) |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Amplifier contributions to CA dimensions (%)")

Amplifier	Dim 1	Dim 2	Dim 3	Dim 4
other	82.55	7.78	0.07	0.65
pretty	4.13	8.54	47.77	33.33
really	12.61	27.76	32.03	0.36
so	0.65	7.82	20.03	65.66
very	0.05	48.10	0.10	0.00

# Colour rows and columns by contribution
factoextra::fviz_ca_row(res_ca, axes = c(1,2), repel = TRUE,
                         col.row = "contrib",
                         gradient.cols = c("steelblue","white","firebrick"),
                         ggtheme = theme_bw()) +
  labs(title = "Adjective coordinates: coloured by Dim 1+2 contribution")

factoextra::fviz_ca_col(res_ca, axes = c(1,2), repel = TRUE,
                         col.col = "contrib",
                         gradient.cols = c("steelblue","white","firebrick"),
                         ggtheme = theme_bw()) +
  labs(title = "Amplifier coordinates: coloured by Dim 1+2 contribution")

---

Dataset 2: L2 Learner Error Types

For the second CA example, we cross-tabulate L2 learner first language (L1) against error type in a learner corpus. This illustrates how CA reveals which L1 backgrounds are associated with which grammatical error patterns.

set.seed(2026)
# 5 L1 groups × 7 error types (simulated counts per 10,000 words)
l2_errors <- matrix(
  c(45, 12,  8, 32, 18,  5, 22,   # Mandarin L1
    38,  9, 15, 28, 22,  8, 18,   # Japanese L1
    18, 32, 28,  9, 35, 24, 12,   # Arabic L1
    15, 35, 30,  8, 38, 28, 10,   # Persian L1
    22, 18, 12, 18, 14, 10, 28),  # Spanish L1
  nrow = 5, byrow = TRUE,
  dimnames = list(
    L1     = c("Mandarin","Japanese","Arabic","Persian","Spanish"),
    ErrorType = c("ArticleOmit","ArticleWrong","PrepError",
                  "AspectError","TenseError","SVAgreement","LexicalError")
  )
)

as.data.frame(l2_errors) |>
  tibble::rownames_to_column("L1") |>
  flextable() |>
  flextable::set_table_properties(width = .85, layout = "autofit") |>
  flextable::theme_zebra() |> flextable::fontsize(size = 10) |>
  flextable::set_caption("L2 learner error types by L1 background (counts per 10,000 words)")

L1	ArticleOmit	ArticleWrong	PrepError	AspectError	TenseError	SVAgreement	LexicalError
Mandarin	45	12	8	32	18	5	22
Japanese	38	9	15	28	22	8	18
Arabic	18	32	28	9	35	24	12
Persian	15	35	30	8	38	28	10
Spanish	22	18	12	18	14	10	28

chisq_l2 <- chisq.test(l2_errors)
cat(sprintf("Chi-squared(df=%d) = %.2f, p %s\n",
            chisq_l2$parameter, chisq_l2$statistic,
            ifelse(chisq_l2$p.value < .001, "< .001",
                   paste("=", round(chisq_l2$p.value, 3)))))

Chi-squared(df=24) = 143.18, p < .001

res_ca_l2 <- FactoMineR::CA(l2_errors, graph = FALSE)
eig_l2    <- get_eigenvalue(res_ca_l2)

cat(sprintf("Dim 1: %.1f%% | Dim 2: %.1f%% | Total (2D): %.1f%%\n",
            eig_l2[1,2], eig_l2[2,2], sum(eig_l2[1:2, 2])))

Dim 1: 89.2% | Dim 2: 9.8% | Total (2D): 99.0%

factoextra::fviz_ca_biplot(
  res_ca_l2, repel = TRUE,
  col.row = "firebrick", col.col = "steelblue",
  ggtheme = theme_bw()
) +
  labs(title    = "CA biplot: L2 learner errors by L1 background",
       subtitle = "Red = L1 groups | Blue = error types",
       caption  = paste0("Dim 1: ", round(eig_l2[1,2], 1),
                         "% | Dim 2: ", round(eig_l2[2,2], 1), "% of inertia"))

The biplot reveals that Mandarin and Japanese learners cluster together and are characterised by article omissions and aspect errors — consistent with the absence of articles and grammatical aspect in these L1s. Arabic and Persian learners cluster separately, characterised by preposition errors and article confusion — reflecting different L1 transfer patterns. Spanish learners are positioned between the two groups, with a distinctive lexical error profile.

Arabic L1 learners make more total errors than other groups
Arabic L1 learners show higher-than-average rates of preposition errors relative to their overall error profile — they are associated with PrepError above what would be expected by chance given their total error count
Arabic L1 learners are the largest group in the dataset
Arabic L1 learners' preposition error rate is exactly average across all groups

---

Choosing Between Methods

Section Overview

What you will learn: A comprehensive decision guide for choosing between hierarchical clustering, k-means, and CA based on your data type and research question; a full comparison table; and a recommended step-by-step analytical workflow

Decision Guide

Dimension	Hierarchical (hclust)	k-Means (kmeans)	Correspondence Analysis (CA)
Input data type	Numeric, binary, mixed (Gower)	Continuous numeric only	Contingency table (counts)
Requires specifying k?	No — decided post-hoc	Yes — before fitting	Not applicable
Output	Dendrogram + membership	Flat partition + centroids	Row + column coordinates
Visualisation options	Dendrogram, heat map, ape phylo, fviz_dend	fviz_cluster, silhouette plot	Biplot, scree plot, contribution plots
Handles mixed data types?	Yes (with Gower distance)	No	No
Scalability (N objects)	Moderate (< ~1,000)	High (millions)	Moderate
Bootstrap validation?	Yes (pvclust)	No (use bootstrap externally)	No
Detects non-spherical clusters?	Yes (single linkage)	No — spherical only	Not applicable
Provides significance test?	No	No	Yes (chi-squared)
Shows direction of association?	No (use mean diff plots)	No (use centroid plots)	Yes — in biplot
Best linguistic use case	Dialect/language typology; EME register; exploratory analysis	Large-scale text clustering; speaker segmentation; confirmation of HCA	Amplifier/collocation patterns; L2 error profiles; register × feature associations

Recommended Analytical Workflow

Step 1 — Assess clusterability (Hopkins statistic) Before any clustering, confirm the data contains genuine structure. If Hopkins ≈ 0.5, the data is too random for meaningful clustering.

Step 2 — Choose the distance measure Match the measure to your data type: Euclidean/Manhattan for scaled numeric; binary (Jaccard) for presence/absence; Gower for mixed types.

Step 3 — Hierarchical clustering (exploratory) Fit with ward.D2 linkage. Compare linkage methods with cophenetic correlation. Choose k using silhouette + elbow + gap statistic. Validate with pvclust (nboot = 1000). Visualise with dendrogram and heat map.

Step 4 — k-Means (confirmation / large N) Fit with nstart = 25. Compare to hierarchical solution. Flag borderline objects where the two methods disagree.

Step 5 — Identify distinctive features Compute mean feature differences per cluster, visualise as barplot. For nominal data, run Fisher’s exact tests. Report which features most strongly define each cluster.

Step 6 — Correspondence analysis (if you have a contingency table) Run chi-squared first. Interpret eigenvalues and scree plot. Produce biplot with row/column contributions. Interpret each dimension as an association gradient.

CA for both datasets — it handles all contingency and continuous data
Hierarchical clustering for both — it is always the safest choice
For the amplifier/adjective data: CA on the contingency table (it is specifically designed for categorical co-occurrence counts and produces a biplot showing both amplifiers and adjectives). For the dialect data: hierarchical clustering (with scaled Euclidean distance and ward.D2 linkage) followed optionally by k-means for confirmation — suitable for continuous numeric data with moderate N.
k-Means for the amplifier data (large dataset) and CA for the dialect data

---

Citation and Session Info

Schweinberger, Martin. 2026. Cluster and Correspondence Analysis in R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/clust/clust.html (Version 2026.02.24).

@manual{schweinberger2026clust,
  author       = {Schweinberger, Martin},
  title        = {Cluster and Correspondence Analysis in R},
  note         = {https://ladal.edu.au/tutorials/clust/clust.html},
  year         = {2026},
  organization = {The Language Technology and Data Analysis Laboratory (LADAL)},
  address      = {Brisbane},
  edition      = {2026.02.24}
}

sessionInfo()

R version 4.4.2 (2024-10-31 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26200)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: Australia/Brisbane
tzcode source: internal

attached base packages:
[1] grid      stats     graphics  grDevices datasets  utils     methods
[8] base

other attached packages:
 [1] checkdown_0.0.13 lubridate_1.9.4  forcats_1.0.0    stringr_1.5.1
 [5] dplyr_1.2.0      purrr_1.0.4      readr_2.1.5      tidyr_1.3.2
 [9] tidyverse_2.0.0  FactoMineR_2.11  gplots_3.2.0     tibble_3.2.1
[13] flextable_0.9.11 exact2x2_1.6.9   exactci_1.4-4    testthat_3.2.3
[17] ssanv_1.1        vcd_1.4-13       ape_5.8-1        pvclust_2.2-0
[21] seriation_1.5.7  factoextra_1.0.7 ggplot2_4.0.2    cluster_2.1.6

loaded via a namespace (and not attached):
  [1] RColorBrewer_1.1-3      rstudioapi_0.17.1       jsonlite_1.9.0
  [4] magrittr_2.0.3          TH.data_1.1-3           estimability_1.5.1
  [7] farver_2.1.2            rmarkdown_2.30          ragg_1.3.3
 [10] vctrs_0.7.1             askpass_1.2.1           rstatix_0.7.2
 [13] htmltools_0.5.9         broom_1.0.7             Formula_1.2-5
 [16] KernSmooth_2.23-24      htmlwidgets_1.6.4       plyr_1.8.9
 [19] sandwich_3.1-1          emmeans_1.10.7          zoo_1.8-13
 [22] uuid_1.2-1              commonmark_2.0.0        lifecycle_1.0.5
 [25] iterators_1.0.14        pkgconfig_2.0.3         Matrix_1.7-2
 [28] R6_2.6.1                fastmap_1.2.0           digest_0.6.39
 [31] colorspace_2.1-1        patchwork_1.3.0         rprojroot_2.1.1
 [34] textshaping_1.0.0       ggpubr_0.6.0            labeling_0.4.3
 [37] timechange_0.3.0        abind_1.4-8             compiler_4.4.2
 [40] here_1.0.2              fontquiver_0.2.1        withr_3.0.2
 [43] S7_0.2.1                backports_1.5.0         carData_3.0-5
 [46] viridis_0.6.5           dendextend_1.19.0       ggsignif_0.6.4
 [49] MASS_7.3-61             openssl_2.3.2           scatterplot3d_0.3-44
 [52] gtools_3.9.5            caTools_1.18.3          flashClust_1.01-2
 [55] tools_4.4.2             lmtest_0.9-40           zip_2.3.2
 [58] glue_1.8.0              nlme_3.1-166            reshape2_1.4.4
 [61] generics_0.1.3          gtable_0.3.6            tzdb_0.4.0
 [64] ca_0.71.1               data.table_1.17.0       hms_1.1.3
 [67] xml2_1.3.6              car_3.1-3               ggrepel_0.9.6
 [70] foreach_1.5.2           pillar_1.10.1           markdown_2.0
 [73] splines_4.4.2           lattice_0.22-6          klippy_0.0.0.9500
 [76] renv_1.1.7              survival_3.7-0          tidyselect_1.2.1
 [79] registry_0.5-1          fontLiberation_0.1.0    knitr_1.51
 [82] fontBitstreamVera_0.1.1 gridExtra_2.3           litedown_0.9
 [85] xfun_0.56               brio_1.1.5              DT_0.33
 [88] stringi_1.8.4           yaml_2.3.10             evaluate_1.0.3
 [91] codetools_0.2-20        officer_0.7.3           gdtools_0.5.0
 [94] multcompView_0.1-10     cli_3.6.4               xtable_1.8-4
 [97] systemfonts_1.3.1       Rcpp_1.1.1              coda_0.19-4.1
[100] parallel_4.4.2          leaps_3.2               assertthat_0.2.1
[103] bitops_1.0-9            viridisLite_0.4.2       mvtnorm_1.3-3
[106] scales_1.4.0            rlang_1.1.7             TSP_1.2-4
[109] multcomp_1.4-28

AI Transparency Statement

This tutorial was written with the assistance of Claude (claude.ai), a large language model created by Anthropic. Claude was used to substantially expand and restructure a shorter existing LADAL tutorial on cluster and correspondence analysis. All content was reviewed and approved by Martin Schweinberger, who takes full responsibility for its accuracy.

---

Back to top

Back to LADAL home

---

References

Biber, Douglas. 1995. Dimensions of Register Variation: A Cross-Linguistic Comparison. Cambridge University Press.

Blashfield, Roger K, and Mark S Aldenderfer. 1988. “The Methods and Problems of Cluster Analysis.” In Handbook of Multivariate Experimental Psychology, 447–73. Springer. https://doi.org/https://doi.org/10.1007/978-1-4613-0893-5_14.

Kassambara, Alboukadel. 2017. Practical Guide to Cluster Analysis in r: Unsupervised Machine Learning. Vol. 1. Sthda.

Kettenring, Jon R. 2006. “The Practice of Cluster Analysis.” Journal of Classification 23 (1): 3–30. https://doi.org/https://doi.org/10.1007/s00357-006-0002-6.

King, Ronald S. 2015. Cluster Analysis and Data Mining: An Introduction. Stylus Publishing, LLC.

Levshina, Natalia. 2015. How to Do Linguistics with r: Data Exploration and Statistical Analysis. Amsterdam: John Benjamins Publishing Company.

Romesburg, Charles. 2004. Cluster Analysis for Researchers. Lulu Press.
