Network Analysis using R

Introduction

This tutorial introduces network analysis in R. Networks are a powerful method for visualising relationships among entities such as literary characters, co-authors, words, or speakers. Network analysis goes beyond visualisation: it is a formal technique for uncovering patterns and structures within complex relational systems.

In essence, network analysis represents relationships as nodes (the entities) connected by edges (the relationships between them). This representation provides a unique perspective for understanding interactions and dependencies within data — one that neither regression nor clustering can easily capture, because the unit of analysis is the relationship itself rather than individual observations.

This tutorial is aimed at beginners and intermediate R users. It showcases how to construct, visualise, and statistically describe networks built from textual data. The running example throughout is the character co-occurrence network in William Shakespeare’s Romeo and Juliet: two characters are connected if they appear in the same scene, and the edge weight reflects how often this happens. A second worked example — a word co-occurrence network — demonstrates how the same pipeline transfers directly to purely linguistic data. The tutorial concludes with interactive network visualisation using visNetwork, which allows users to explore networks in a browser by dragging nodes, hovering for information, and zooming in and out.

Prerequisite Tutorials

Before working through this tutorial, we suggest you familiarise yourself with:

• Getting Started with R — R objects, basic syntax, RStudio orientation
• Loading and Saving Data in R — reading files, working with paths
• Handling Tables in R — data frames, dplyr, pipes
• String Processing in R — character manipulation (useful for the word network section)

Learning Objectives

By the end of this tutorial you will be able to:

1. Explain what a network is in formal terms and distinguish directed from undirected, and weighted from unweighted networks
2. Read and interpret an adjacency matrix and an edge list
3. Build a co-occurrence matrix from tabular long-format data using crossprod() and table()
4. Construct node attribute tables and edge lists from raw data
5. Visualise a network quickly using quanteda.textplots::textplot_network()
6. Build fully customisable static ggraph networks with node colours, sizes, and edge weights
7. Calculate and interpret degree, betweenness, closeness, eigenvector centrality, and PageRank

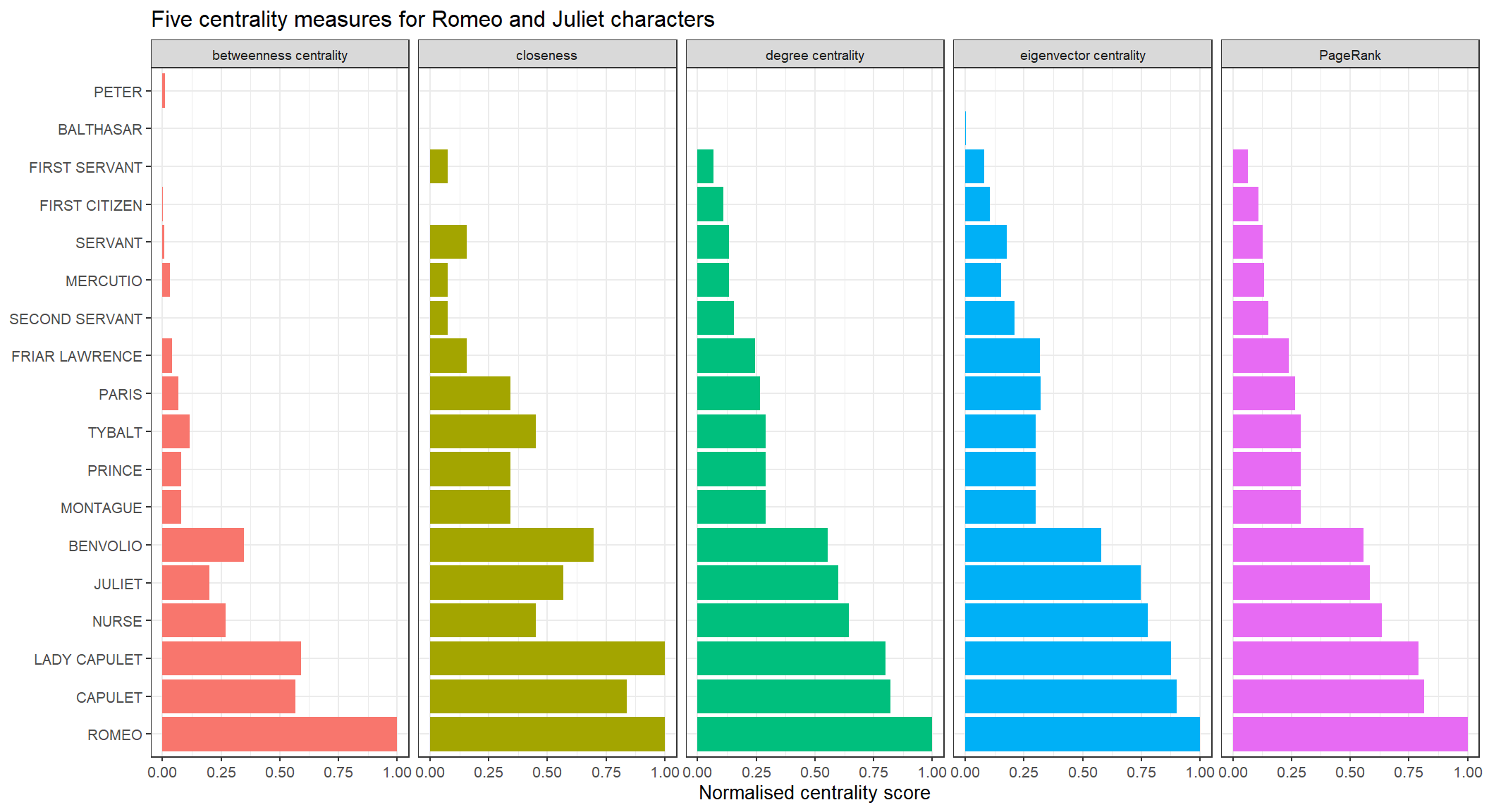

8. Compile, compare, and visualise multiple centrality measures in a single summary

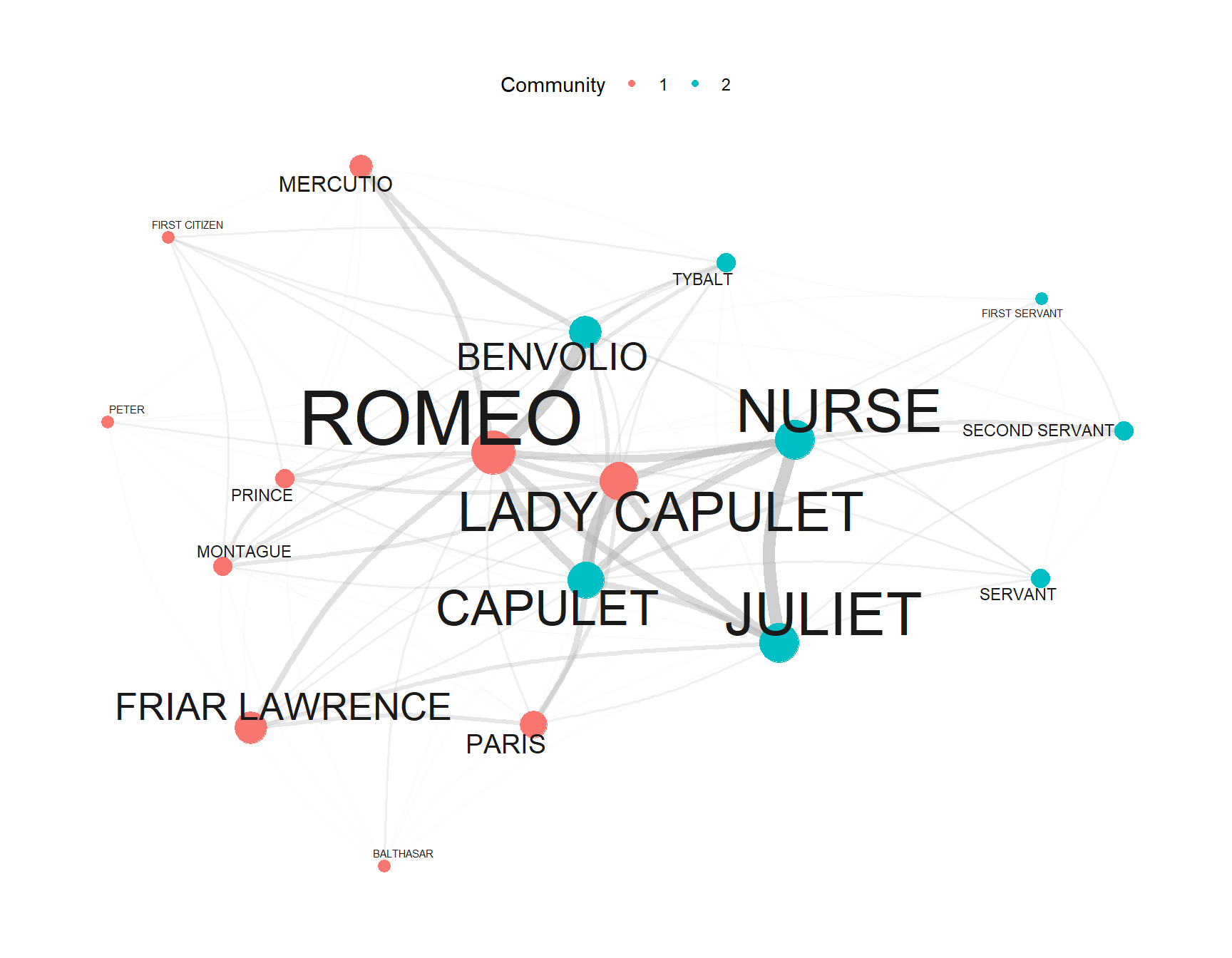

9. Detect communities in a network using the Louvain algorithm and interpret the results

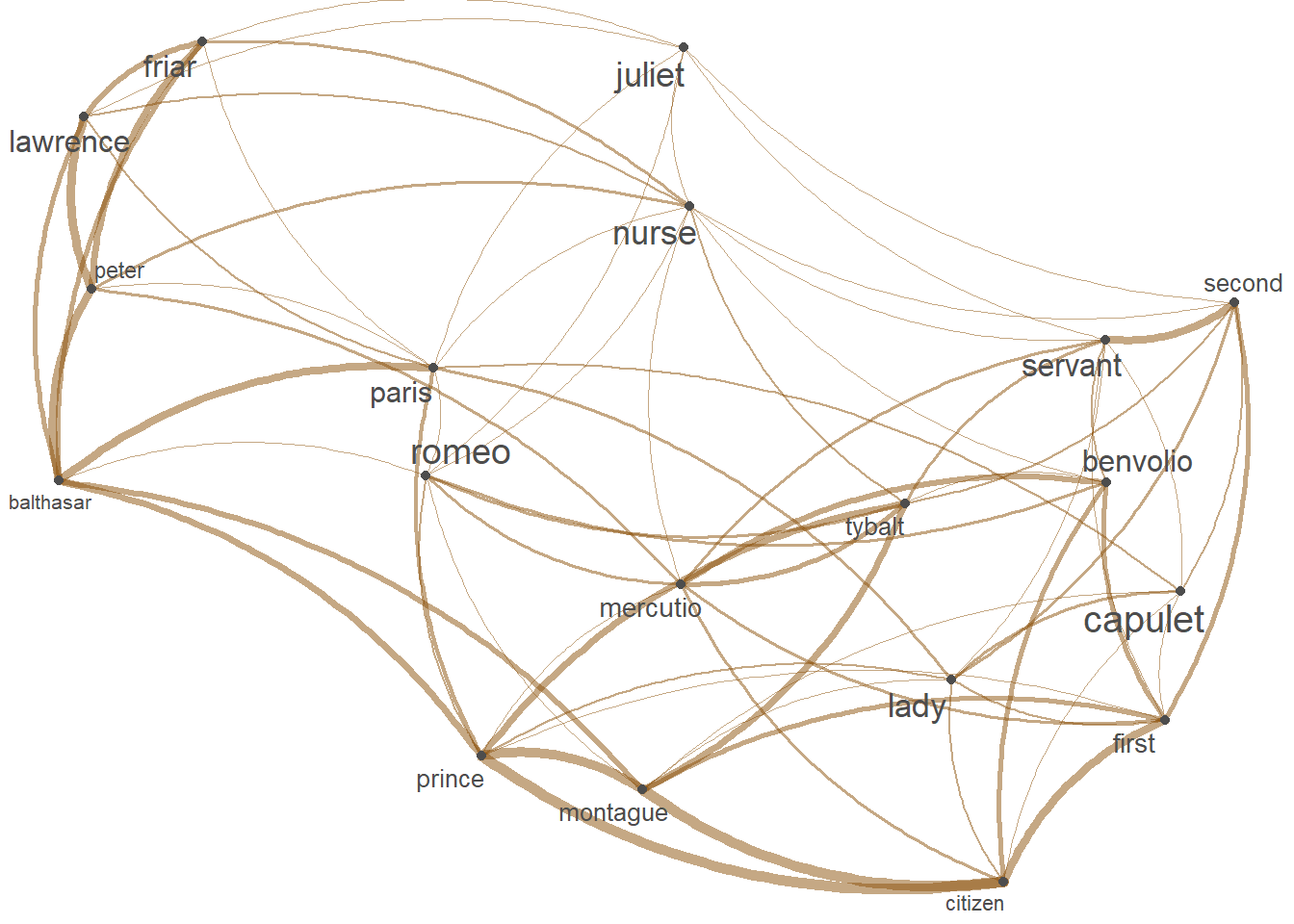

10. Build and visualise a word co-occurrence / collocation network from a text corpus
11. Create interactive network visualisations using visNetwork
12. Export network plots, edge lists, node tables, and igraph objects for reuse

Citation

Schweinberger, Martin. 2026. Network Analysis using R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/net/net.html (Version 2026.05.01).

This tutorial builds on a tutorial on plotting collocation networks by Guillaume Desagulier, a tutorial on network analysis offered by Alice Miller from the Digital Observatory at the Queensland University of Technology, and this tutorial by Andreas Niekler and Gregor Wiedemann.

---

What Is Network Analysis?

Section Overview

What you will learn: The core vocabulary of network analysis — nodes, edges, directed vs. undirected, weighted vs. unweighted, adjacency matrices; why network analysis is well-suited to linguistic and literary data; the distinction between adjacency matrix and edge list representations; and what global graph properties (density, diameter, transitivity) tell us about a network’s architecture

Graphs, Nodes, and Edges

A network (or graph in mathematics) consists of two components: a set of nodes (also called vertices) representing entities, and a set of edges (also called links or arcs) representing relationships between pairs of those entities. Formally, a graph is written as \(G = (V, E)\), where \(V\) is the set of vertices and \(E \subseteq V \times V\) is the set of edges.

In linguistics and literary studies, networks can represent a wide variety of relational phenomena:

Domain	Nodes	Edges	Typical edge weight
Literary characters	Characters in a play or novel	Appear in the same scene/chapter	Number of shared scenes
Collocation	Words in a corpus	Co-occur within a context window	Co-occurrence frequency or PMI
Syntactic dependency	Words in a sentence	Syntactic dependency relations	— (usually unweighted)
Co-authorship	Researchers	Wrote a paper together	Number of joint papers
Language contact	Languages or dialects	Share lexical/structural features	Similarity score
Social network	Speakers	Regular interaction	Frequency of contact

The choice of what counts as a node and what counts as an edge is a theoretical decision that must be justified by the research question. The same underlying data can yield quite different networks depending on these choices.

Directed and Undirected Networks

Networks can be directed or undirected, depending on whether the edges carry orientation information.

In a directed network (also called a digraph), every edge has a source and a target. Directed edges indicate asymmetric relationships: the fact that word A precedes word B in a sequence does not imply that B precedes A. In directed networks, we distinguish the in-degree (number of incoming edges) from the out-degree (number of outgoing edges) of each node.

In an undirected network, edges are symmetric: if node A is connected to node B, then B is connected to A by the same edge. Character co-occurrence is a naturally undirected relationship: if Romeo appears in a scene with Juliet, then Juliet appears in that scene with Romeo. Most co-occurrence networks — whether character-level or word-level — are therefore undirected.

When to Use Directed vs. Undirected

Use directed networks when the relationship is inherently asymmetric: citation (A cites B does not mean B cites A), word order (A precedes B), syntactic dependency (head to dependent), or social influence (A mentions B). Use undirected networks when the relationship is symmetric by nature, or when directionality is not recorded in the data.

Weighted and Unweighted Networks

Edges can carry a weight — a numerical value representing the strength, frequency, or magnitude of the relationship. In a character co-occurrence network, the weight is the number of scenes in which two characters appear together. In a word co-occurrence network, the weight is the number of times two words co-occur within a context window.

Unweighted networks treat all edges as equally present (weight = 1) or absent (weight = 0). They are appropriate when frequency or strength is not meaningful or not recorded.

Weighted networks preserve gradient information. The four combinations of directed/undirected and weighted/unweighted give rise to four basic network types:

	Unweighted	Weighted
Undirected	Friendship (present/absent), binary co-occurrence	Character co-occurrence, word co-occurrence
Directed	Citation (presence/absence), follow (Twitter)	Retweet counts, word transition probabilities

The Adjacency Matrix and the Edge List

Any network can be represented in two equivalent ways.

The adjacency matrix \(A\) is a square matrix of size \(|V| \times |V|\), where \(A_{ij}\) equals the edge weight from node \(i\) to node \(j\) (or 1 if unweighted), and 0 if no edge exists. For an undirected network, \(A\) is symmetric (\(A_{ij} = A_{ji}\)). The co-occurrence matrix we build in Data Preparation is exactly an adjacency matrix.

The edge list is a two- or three-column table in which each row records one edge: the source node, the target node, and optionally the edge weight. Edge lists are more memory-efficient than adjacency matrices for sparse networks (where most pairs of nodes are not connected). A vocabulary of 10,000 word types, for example, would require a 10,000 × 10,000 = 100,000,000-cell adjacency matrix, but the same data as an edge list would have only as many rows as there are non-zero co-occurrences.

Both representations carry identical information and can be converted into each other. igraph works with both via graph_from_adjacency_matrix() and graph_from_data_frame().

Key Global Network Properties

Beyond individual node statistics, networks have global structural properties that characterise their overall architecture:

Density is the proportion of all possible edges that are actually present. A complete graph (every node connected to every other) has density 1; a sparse network has density close to 0. Most real-world networks are sparse.

Diameter is the length of the longest shortest path between any two nodes in the network. A small diameter means that any two nodes can be reached in few steps — this is the structural basis of the “small world” phenomenon.

Clustering coefficient (or transitivity) measures how often two nodes that share a common neighbour are also connected to each other. High transitivity means the network contains many tightly interconnected triangles — characteristic of friendship networks and co-occurrence networks.

Connected components are maximal subgraphs in which every node can reach every other node. A network with one giant component and a few isolated nodes is typical of real-world networks.

Why Network Analysis for Linguistics?

Network methods are particularly well-suited to linguistic data for several reasons. Language is inherently relational: words derive meaning from co-occurrence with other words; characters in a narrative acquire significance through their interactions; speakers in a community are embedded in social networks that shape their linguistic behaviour. Network analysis makes these relational structures explicit, measurable, and comparable across texts, languages, or time periods. It complements frequency-based methods by foregrounding who relates to whom, how centrally, and through which structural position.

Several influential results in computational linguistics and digital humanities rest on network analysis. Mikolov et al. (2013) embed words in vector spaces whose geometry reflects word co-occurrence networks. Moretti (2011) uses character networks to argue that the structural complexity of Shakespeare’s plays increases over his career. Trilcke et al. (2016) demonstrates that network density reliably distinguishes dramatic genre (comedy vs. tragedy). These examples show that network methods yield interpretable, replicable findings rather than merely attractive visualisations.

Exercises: Graph Theory Concepts

Q1. A researcher models Twitter retweet behaviour: User A retweeting User B does NOT imply User B retweets User A. Which network type is most appropriate?

Undirected, unweighted network
Directed, unweighted network
Undirected, weighted network
Directed, weighted network

---

Q2. A co-occurrence matrix for a corpus with 10,000 unique word types would have how many cells?

10,000
20,000
100,000,000
It depends on the number of documents in the corpus

---

Setup

Installing Packages

# Run once — comment out after installation
install.packages("checkdown")          # interactive check-in questions
install.packages("flextable")          # formatted tables
install.packages("GGally")             # ggplot2 network extension
install.packages("ggraph")             # ggplot2-style network plots
install.packages("igraph")             # core network analysis
install.packages("Matrix")             # sparse matrix support
install.packages("quanteda")           # text analysis and FCM
install.packages("quanteda.textplots") # textplot_network()
install.packages("tidygraph")          # tidy interface to igraph
install.packages("tidyverse")          # dplyr, ggplot2, tidyr, readr
install.packages("tibble")             # tibble data frames
install.packages("ggrepel")            # non-overlapping node labels
install.packages("visNetwork")         # interactive network visualisation

Loading Packages

library(checkdown)
library(flextable)
library(GGally)
library(ggraph)
library(igraph)
library(Matrix)
library(quanteda)
library(quanteda.textplots)
library(tidygraph)
library(tidyverse)
library(tibble)
library(ggrepel)
library(visNetwork)

Once the packages are loaded you are ready to work through the tutorial. Each section builds on objects created in Data Preparation, so run that section first before moving to later sections.

---

Data Preparation

Section Overview

What you will learn: How to load a scene-level character table for Romeo and Juliet; how to transform it into a weighted co-occurrence matrix using crossprod() and table(); how to build a node attribute table and an edge list from the matrix; and how to combine all three into an igraph graph object

Data source: A tab-separated file (tutorials/net/data/romeo_tidy.txt) recording which characters appear in each subscene of Romeo and Juliet and how many lines they speak.

In network analysis it is essential to have at least one table describing the start and end points of edges — the edge list. A separate node attribute table (e.g. character family, frequency) and an edge attribute table (e.g. weight, type) enrich both the visualisation and the analysis. In the subsections below we build all three from the raw data.

Loading the Data

We load a tab-separated file in which each row records one character’s presence in one subscene, along with the number of lines they speak. This is a long-format (tidy) representation: each observation occupies exactly one row.

net_dat <- read.delim(
    "tutorials/net/data/romeo_tidy.txt",
    sep = "\t"
)

actscene	person	contrib	occurrences
ACT I_SCENE I	BENVOLIO	24	7
ACT I_SCENE I	CAPULET	2	9
ACT I_SCENE I	FIRST CITIZEN	1	2
ACT I_SCENE I	LADY CAPULET	1	10
ACT I_SCENE I	MONTAGUE	6	3
ACT I_SCENE I	PRINCE	1	3
ACT I_SCENE I	ROMEO	16	14
ACT I_SCENE I	TYBALT	2	3
ACT I_SCENE II	BENVOLIO	5	7
ACT I_SCENE II	CAPULET	3	9
ACT I_SCENE II	PARIS	2	5
ACT I_SCENE II	ROMEO	11	14
ACT I_SCENE II	SERVANT	8	3
ACT I_SCENE III	JULIET	5	11
ACT I_SCENE III	LADY CAPULET	11	10

The three columns are: person (character name), scene (subscene identifier), and occurrences (number of lines spoken). Each row records a single character’s appearance in a single subscene. This long-format table is the raw material for building the co-occurrence matrix, the node attribute table, and the edge list.

Building the Co-occurrence Matrix

We use table() to create a character-by-scene indicator matrix, then crossprod() (the cross-product \(X^\top X\)) to produce the symmetric character-by-character co-occurrence matrix. Entry \((i,j)\) records how many scenes characters \(i\) and \(j\) share. Setting the diagonal to zero removes self-co-occurrences.

net_cmx <- crossprod(table(net_dat[1:2]))
diag(net_cmx) <- 0
net_df  <- as.data.frame(net_cmx)

Persona	BALTHASAR	BENVOLIO	CAPULET	FIRST CITIZEN	FIRST SERVANT
BALTHASAR	0	0	1	0	0
BENVOLIO	0	0	3	2	1
CAPULET	1	3	0	1	2
FIRST CITIZEN	0	2	1	0	0
FIRST SERVANT	0	1	2	0	0

The matrix is symmetric — it represents an undirected network — and the value in cell \((i, j)\) is the edge weight between characters \(i\) and \(j\). This is the adjacency matrix for the weighted, undirected character co-occurrence network.

Building the Node Attribute Table

The node table records one row per character with any attributes we want to use in the visualisation. Here we compute each character’s total scene frequency and add a family affiliation label:

va <- net_dat |>
    dplyr::rename(node = person, n = occurrences) |>
    dplyr::group_by(node) |>
    dplyr::summarise(n = sum(n))

mon <- c("ABRAM", "BALTHASAR", "BENVOLIO", "LADY MONTAGUE", "MONTAGUE", "ROMEO")
cap <- c("CAPULET", "CAPULET'S COUSIN", "FIRST SERVANT", "GREGORY", "JULIET",
         "LADY CAPULET", "NURSE", "PETER", "SAMPSON", "TYBALT")

va <- va |>
    dplyr::mutate(type = dplyr::case_when(
        node %in% mon ~ "Montague",
        node %in% cap ~ "Capulet",
        TRUE          ~ "Other"
    ))

node	n	type
BALTHASAR	4	Montague
BENVOLIO	49	Montague
CAPULET	81	Capulet
FIRST CITIZEN	4	Other
FIRST SERVANT	4	Capulet
FRIAR LAWRENCE	49	Other
JULIET	121	Capulet
LADY CAPULET	100	Capulet
MERCUTIO	16	Other
MONTAGUE	9	Montague
NURSE	121	Capulet
PARIS	25	Other
PETER	4	Capulet
PRINCE	9	Other
ROMEO	196	Montague
SECOND SERVANT	9	Other
SERVANT	9	Other
TYBALT	9	Capulet

Building the Edge List

We reshape the co-occurrence matrix from wide to long format using tidyr::pivot_longer(), then remove zero-weight pairs:

ed <- net_df |>
    dplyr::mutate(from = rownames(net_df)) |>
    tidyr::pivot_longer(
        cols      = -from,
        names_to  = "to",
        values_to = "n"
    ) |>
    dplyr::filter(n > 0)

from	to	n
BALTHASAR	CAPULET	1
BALTHASAR	FRIAR LAWRENCE	1
BALTHASAR	JULIET	1
BALTHASAR	LADY CAPULET	1
BALTHASAR	MONTAGUE	1
BALTHASAR	PARIS	1
BALTHASAR	PRINCE	1
BALTHASAR	ROMEO	2
BENVOLIO	CAPULET	3
BENVOLIO	FIRST CITIZEN	2
BENVOLIO	FIRST SERVANT	1
BENVOLIO	JULIET	1
BENVOLIO	LADY CAPULET	2
BENVOLIO	MERCUTIO	4
BENVOLIO	MONTAGUE	2

Building the igraph and tidygraph Objects

We combine the edge list and node attribute table into an igraph graph object and wrap it in a tidygraph tbl_graph for use with ggraph:

ig <- igraph::graph_from_data_frame(
    d        = ed,
    vertices = va,
    directed = FALSE
)

tg <- tidygraph::as_tbl_graph(ig) |>
    tidygraph::activate(nodes) |>
    dplyr::mutate(label = name)

We inspect the basic global properties of the network:

cat("Nodes:         ", igraph::vcount(ig), "\n")

Nodes:          18

cat("Edges:         ", igraph::ecount(ig), "\n")

Edges:          212

cat("Density:       ", round(igraph::edge_density(ig), 3), "\n")

Density:        1.386

cat("Diameter:      ", igraph::diameter(ig), "\n")

Diameter:       2

cat("Transitivity:  ", round(igraph::transitivity(ig, type = "global"), 3), "\n")

Transitivity:   0.765

Exercises: Data Preparation

Q3. In the co-occurrence matrix, what does the value in cell (ROMEO, JULIET) represent?

The total number of lines Romeo speaks directly to Juliet
The number of scenes in which both Romeo and Juliet appear
1 if Romeo and Juliet ever appear together, 0 otherwise
The proportion of Romeo's scenes that also contain Juliet

---

Q4. Why do we set the diagonal of the co-occurrence matrix to zero before building the network?

To make the matrix symmetric so igraph can read it as an undirected network
To prevent characters with many scenes from dominating the visualisation
Because the diagonal records self-co-occurrences, which are not meaningful edges between different characters
Because igraph requires a zero diagonal to create a graph object from an adjacency matrix

---

Network Visualisation

Section Overview

What you will learn: Two complementary approaches to visualising the same network — a quick quanteda plot for rapid exploration, and a fully customisable ggraph plot for publication-ready figures; how to encode node size, node colour, edge width, and edge transparency as data-driven aesthetics; how layout algorithms position nodes; and the key arguments and customisation options for each approach

Quick Visualisation with quanteda

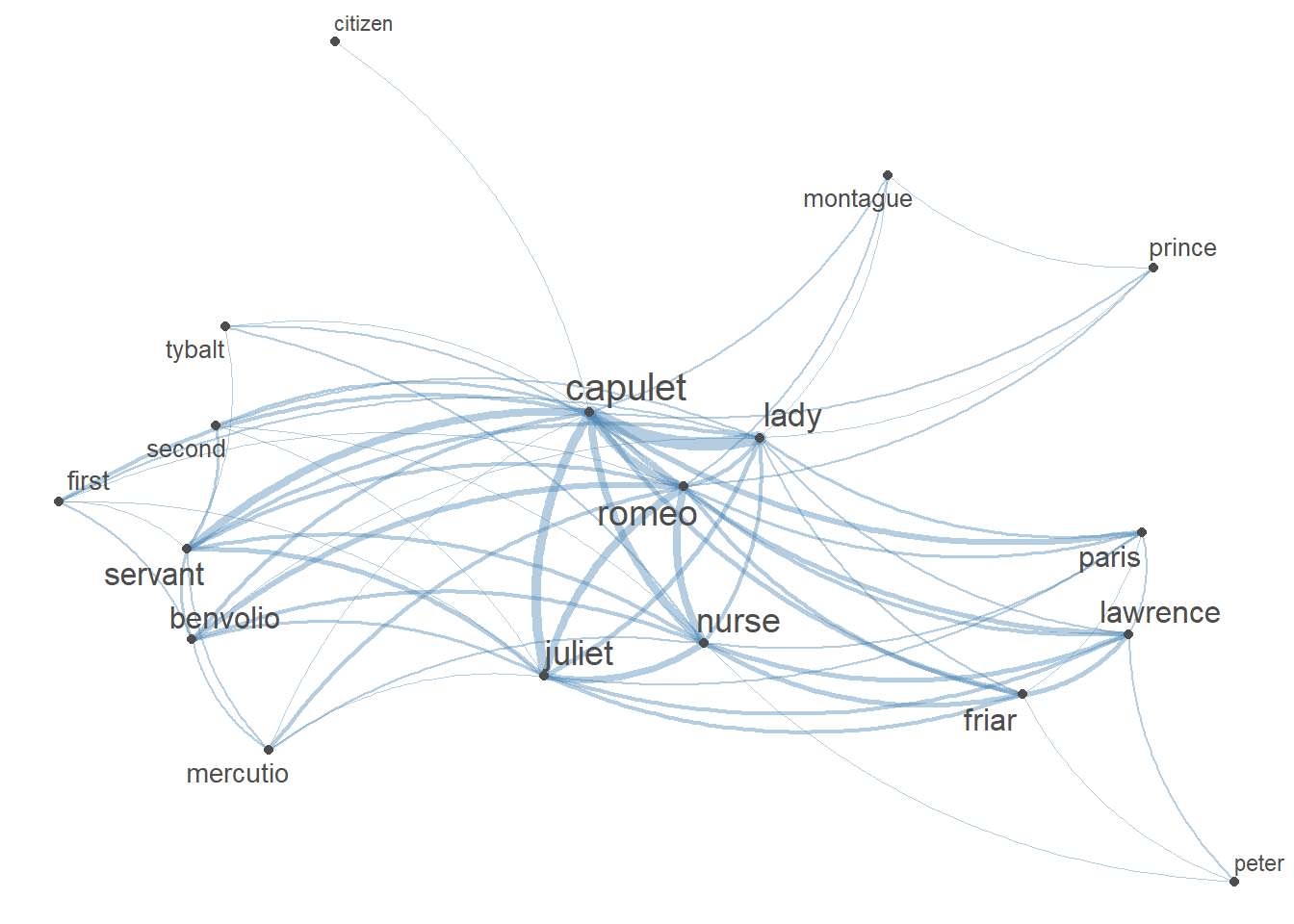

The quanteda.textplots::textplot_network() function generates a network plot directly from a feature co-occurrence matrix (FCM) with very little code. It is ideal for rapid exploratory work. The trade-off is limited customisation compared to ggraph.

We first convert the data frame to a document-feature matrix (DFM) and then to a feature co-occurrence matrix (FCM):

net_dfm <- quanteda::as.dfm(net_df)
net_fcm <- quanteda::fcm(net_dfm, tri = FALSE)

The key arguments of textplot_network() are:

Argument	Description	Default
x	An FCM or DFM object	—
min_freq	Minimum co-occurrence frequency/proportion for inclusion	0.5
omit_isolated	Drop nodes that fall below min_freq	TRUE
edge_color	Colour of edges	"#1F78B4"
edge_alpha	Opacity of edges (0 = transparent, 1 = opaque)	0.5
edge_size	Maximum edge thickness	2
vertex_color	Colour of nodes	"#4D4D4D"
vertex_size	Size of nodes	2
vertex_labelsize	Size of node labels in mm (can be a vector)	5

quanteda.textplots::textplot_network(
    x              = net_fcm,
    min_freq       = 0.5,
    edge_alpha     = 0.5,
    edge_color     = "gray50",
    edge_size      = 2,
    vertex_labelsize = net_dfm |>
        quanteda::convert(to = "data.frame") |>
        dplyr::select(-doc_id) |>
        rowSums() |>
        log(),
    vertex_color   = "#4D4D4D",
    vertex_size    = 2
)

Character co-occurrence network for Romeo and Juliet — quick exploratory plot using quanteda.textplots. Label size is scaled to log total co-occurrence frequency.

Even this quick plot reveals that Romeo, Juliet, and Friar Lawrence occupy prominent central positions. Peripheral characters — servants and musicians — cluster at the edges of the layout with smaller labels.

Fully Customisable Tidy Networks with ggraph

For publication-ready figures and full control over every aesthetic, we use the igraph + tidygraph + ggraph pipeline. This pipeline separates the graph data from the rendering instructions, making it easy to adjust any aspect of the figure without altering the underlying data.

Layout Algorithms

The ggraph() function’s layout argument controls how nodes are positioned in two-dimensional space. Common choices include:

Layout	Description	Best for
"fr"	Fruchterman–Reingold force-directed	General purpose; groups connected nodes
"kk"	Kamada–Kawai spring model	Emphasises shortest-path distances
"circle"	Nodes arranged in a circle	Small networks; periodic structure
"tree"	Hierarchical tree layout	DAGs and hierarchical data
"stress"	Stress-majorisation	More stable than "fr" across runs

We use the Fruchterman–Reingold layout ("fr") throughout this tutorial. It is a force-directed algorithm: nodes repel each other like charged particles while edges act as springs pulling connected nodes together. Densely connected subgroups are therefore positioned close to each other. Because the algorithm starts from a random configuration, set.seed() is essential for reproducibility.

The Plot

set.seed(2026)

tg |>
    ggraph::ggraph(layout = "fr") +

    geom_edge_arc(
        colour   = "gray50",
        lineend  = "round",
        strength = 0.1,
        aes(edge_width = n, alpha = n)
    ) +

    geom_node_point(
        aes(color = type),
        size = log(va$n) * 2
    ) +

    geom_node_text(
        aes(label = label),
        repel         = TRUE,
        point.padding = unit(0.2, "lines"),
        size          = sqrt(va$n),
        colour        = "gray10"
    ) +

    scale_edge_width(range = c(0.2, 3)) +
    scale_edge_alpha(range = c(0.05, 0.4)) +

    scale_color_manual(
        values = c("Montague" = "#2166ac",
                   "Capulet"  = "#d6604d",
                   "Other"    = "#4dac26")
    ) +

    theme_graph(background = "white") +

    theme(
        legend.position = "top",
        legend.title    = element_blank()
    ) +

    guides(edge_width = "none", edge_alpha = "none")

Character co-occurrence network for Romeo and Juliet. Node colour = family; node size = log(total line frequency); edge width and opacity = shared-scene count.

The layout makes several structural features visible at once: Romeo sits at the junction between the Montague and Capulet clusters, reflecting his central brokering role in the narrative. Friar Lawrence (green) bridges the two family clusters. Peripheral characters — servants, musicians, the Apothecary — appear at the edges of the layout with smaller node sizes.

Customising the ggraph Plot

Several aspects of the plot above are easy to modify:

• Layout: Replace layout = "fr" with "kk", "stress", or "circle" to compare arrangements
• Edge geometry: Replace geom_edge_arc() with geom_edge_link() (straight lines) or geom_edge_fan() for multiple edges as separate arcs
• Node labels: Replace geom_node_text() with geom_node_label() for labelled boxes
• Colours: Adjust scale_color_manual() values to any hex colour codes or named R colours

Exercises: Network Visualisation

Q5. In the ggraph plot, node size is mapped to log(va$n) * 2. What does a larger node indicate?

The character appears in more scenes and/or speaks more lines
The character has more unique scene partners (higher degree centrality)
The character belongs to a larger family group
The character has a higher betweenness centrality score

---

Q6. Why is set.seed(2026) needed before the ggraph plot but NOT before textplot_network()?

The Fruchterman-Reingold layout starts from a random node configuration; textplot_network uses a deterministic layout
textplot_network always produces the same layout regardless of any random seed
`set.seed()` only affects ggraph, not quanteda functions, so it is unnecessary for textplot_network
Both layouts are random, but textplot_network uses a fixed internal seed of 42 by default

---

Network Statistics

Section Overview

What you will learn: How to quantify the structural role of each node using five centrality measures — degree, betweenness, closeness, eigenvector centrality, and PageRank; the mathematical definition and linguistic interpretation of each measure; how to compile a combined summary table; and how to visualise all five measures side by side for comparison

Visualising a network is a useful first step, but network statistics let us make precise, reproducible claims about structural importance. Different centrality measures capture different senses of “importance”, so it is common to compute several and compare them: a node that ranks highly on all measures is more robustly central than one that ranks highly on only one.

We first rebuild a directed edge list expanded by edge weight, so that igraph centrality functions treat co-occurrence frequency correctly:

dg  <- ed[rep(seq_len(nrow(ed)), ed$n), c("from", "to")]
rownames(dg) <- NULL
dgg <- igraph::graph_from_edgelist(as.matrix(dg), directed = TRUE)

Degree Centrality

Degree centrality counts the number of edges attached to a node. In a directed network, it splits into in-degree (edges pointing in) and out-degree (edges pointing out). A character with high degree centrality co-occurs with many different other characters — they have a wide social reach within the play. For a node \(v\) in an undirected network with \(n\) nodes, normalised degree centrality is:

\[C_D(v) = \frac{\deg(v)}{n - 1}\]

dc_tbl <- igraph::degree(dgg) |>
    as.data.frame() |>
    tibble::rownames_to_column("node") |>
    dplyr::rename(`degree centrality` = 2) |>
    dplyr::arrange(dplyr::desc(`degree centrality`))

node	degree centrality
ROMEO	108
CAPULET	92
LADY CAPULET	90
NURSE	76
JULIET	72
BENVOLIO	68
MONTAGUE	44
PRINCE	44
TYBALT	44
PARIS	42
FRIAR LAWRENCE	40
SECOND SERVANT	32
MERCUTIO	30
SERVANT	30
FIRST CITIZEN	28

names(which.max(igraph::degree(dgg)))

[1] "ROMEO"

Betweenness Centrality

Betweenness centrality measures how often a node lies on the shortest path between two other nodes. A character with high betweenness acts as a structural broker or bridge: removing them would most severely disrupt the network’s overall connectivity. Formally:

\[C_B(v) = \sum_{s \neq v \neq t} \frac{\sigma(s,t \mid v)}{\sigma(s,t)}\]

where \(\sigma(s,t)\) is the total number of shortest paths from \(s\) to \(t\), and \(\sigma(s,t \mid v)\) is the number of those paths that pass through \(v\).

bc_tbl <- igraph::betweenness(dgg) |>
    as.data.frame() |>
    tibble::rownames_to_column("node") |>
    dplyr::rename(`betweenness centrality` = 2) |>
    dplyr::arrange(dplyr::desc(`betweenness centrality`))

node	betweenness centrality
ROMEO	27.62437
LADY CAPULET	16.27686
CAPULET	15.62322
BENVOLIO	9.61512
NURSE	7.40145
JULIET	5.55471
TYBALT	3.19941
MONTAGUE	2.18220
PRINCE	2.18220
PARIS	1.85943
FRIAR LAWRENCE	1.09118
MERCUTIO	0.84421
PETER	0.26842
SERVANT	0.23874
FIRST CITIZEN	0.03846

names(which.max(igraph::betweenness(dgg)))

[1] "ROMEO"

Closeness Centrality

Closeness centrality measures how quickly a node can reach all other nodes via shortest paths. A character with high closeness has a short average distance to every other character — they sit at the “centre of gravity” of the entire network. The formula is:

\[C_C(v) = \frac{n - 1}{\displaystyle\sum_{u \neq v} d(v, u)}\]

where \(d(v, u)\) is the shortest-path distance between nodes \(v\) and \(u\).

cl_tbl <- igraph::closeness(dgg) |>
    as.data.frame() |>
    tibble::rownames_to_column("node") |>
    dplyr::rename(closeness = 2) |>
    dplyr::arrange(dplyr::desc(closeness))

node	closeness
LADY CAPULET	0.05882
ROMEO	0.05882
CAPULET	0.05556
BENVOLIO	0.05263
JULIET	0.05000
NURSE	0.04762
TYBALT	0.04762
MONTAGUE	0.04545
PARIS	0.04545
PRINCE	0.04545
FRIAR LAWRENCE	0.04167
SERVANT	0.04167
FIRST SERVANT	0.04000
MERCUTIO	0.04000
SECOND SERVANT	0.04000

names(which.max(igraph::closeness(dgg)))

[1] "LADY CAPULET"

Eigenvector Centrality

Eigenvector centrality extends degree centrality by considering not just how many connections a node has, but how important those connections are. A node connected to many high-scoring nodes scores higher than a node with the same number of connections to low-scoring nodes. This is the principle underlying Google’s original PageRank algorithm. The eigenvector centrality \(x_i\) of node \(i\) satisfies:

\[x_i = \frac{1}{\lambda} \sum_{j \in \mathcal{N}(i)} x_j\]

where \(\lambda\) is the largest eigenvalue of the adjacency matrix and \(\mathcal{N}(i)\) is the set of neighbours of node \(i\).

ev_tbl <- igraph::eigen_centrality(dgg)$vector |>
    as.data.frame() |>
    tibble::rownames_to_column("node") |>
    dplyr::rename(`eigenvector centrality` = 2) |>
    dplyr::arrange(dplyr::desc(`eigenvector centrality`))

node	eigenvector centrality
ROMEO	1.0000
CAPULET	0.9217
LADY CAPULET	0.9006
NURSE	0.8224
JULIET	0.7978
BENVOLIO	0.6655
PARIS	0.4596
FRIAR LAWRENCE	0.4557
TYBALT	0.4415
MONTAGUE	0.4414
PRINCE	0.4414
SECOND SERVANT	0.3688
SERVANT	0.3446
MERCUTIO	0.3239
FIRST CITIZEN	0.2867

PageRank

PageRank is a variant of eigenvector centrality designed for directed networks. It models a random walker who follows a randomly chosen outgoing edge with probability \(d\) (the damping factor, typically 0.85) and teleports to a random node with probability \(1 - d\). A node’s PageRank is proportional to the probability of the random walker visiting that node in the long run. PageRank handles dangling nodes and disconnected components more robustly than pure eigenvector centrality.

pr_tbl <- igraph::page_rank(dgg, damping = 0.85)$vector |>
    as.data.frame() |>
    tibble::rownames_to_column("node") |>
    dplyr::rename(PageRank = 2) |>
    dplyr::arrange(dplyr::desc(PageRank))

node	PageRank
ROMEO	0.11188
CAPULET	0.09568
LADY CAPULET	0.09372
NURSE	0.08004
JULIET	0.07560
BENVOLIO	0.07346
MONTAGUE	0.05010
PRINCE	0.05010
TYBALT	0.05001
PARIS	0.04791
FRIAR LAWRENCE	0.04580
SECOND SERVANT	0.03803
MERCUTIO	0.03655
SERVANT	0.03605
FIRST CITIZEN	0.03452

Combined Centrality Summary

We join all five measures into a single table and visualise them side by side after normalising each to the \([0, 1]\) range:

centrality_summary <- dc_tbl |>
    dplyr::left_join(bc_tbl, by = "node") |>
    dplyr::left_join(cl_tbl, by = "node") |>
    dplyr::left_join(ev_tbl, by = "node") |>
    dplyr::left_join(pr_tbl, by = "node") |>
    dplyr::arrange(dplyr::desc(`degree centrality`))

node	degree centrality	betweenness centrality	closeness	eigenvector centrality	PageRank
ROMEO	108	27.624	0.059	1.000	0.112
CAPULET	92	15.623	0.056	0.922	0.096
LADY CAPULET	90	16.277	0.059	0.901	0.094
NURSE	76	7.401	0.048	0.822	0.080
JULIET	72	5.555	0.050	0.798	0.076
BENVOLIO	68	9.615	0.053	0.665	0.073
MONTAGUE	44	2.182	0.045	0.441	0.050
PRINCE	44	2.182	0.045	0.441	0.050
TYBALT	44	3.199	0.048	0.442	0.050
PARIS	42	1.859	0.045	0.460	0.048
FRIAR LAWRENCE	40	1.091	0.042	0.456	0.046
SECOND SERVANT	32	0.000	0.040	0.369	0.038
MERCUTIO	30	0.844	0.040	0.324	0.037
SERVANT	30	0.239	0.042	0.345	0.036
FIRST CITIZEN	28	0.038	0.038	0.287	0.035

centrality_summary |>
    dplyr::mutate(dplyr::across(
        where(is.numeric),
        \(x) (x - min(x, na.rm = TRUE)) /
             (max(x, na.rm = TRUE) - min(x, na.rm = TRUE))
    )) |>
    tidyr::pivot_longer(-node, names_to = "measure", values_to = "value") |>
    dplyr::mutate(node = forcats::fct_reorder(
        node,
        ifelse(measure == "degree centrality", value, NA_real_),
        .fun  = \(x) mean(x, na.rm = TRUE),
        .desc = TRUE
    )) |>
    ggplot(aes(x = value, y = node, fill = measure)) +
    geom_col(show.legend = FALSE) +
    facet_wrap(~measure, nrow = 1, scales = "free_x") +
    labs(
        x     = "Normalised centrality score",
        y     = NULL,
        title = "Five centrality measures for Romeo and Juliet characters"
    ) +
    theme_bw(base_size = 10) +
    theme(strip.text = element_text(size = 7))

Five centrality measures for all characters, rescaled to [0,1] for comparability. Sorted by degree centrality (left panel).

Exercises: Network Statistics

Q7. Friar Lawrence scores high on betweenness centrality but lower on degree centrality than Romeo. What does this pattern suggest about his structural role?

Friar Lawrence is the most socially active character and appears in more scenes than Romeo
Friar Lawrence acts as a bridge between groups that would otherwise be poorly connected
Friar Lawrence's scenes involve more characters than Romeo's scenes on average
The betweenness score is an artefact caused by the small size of the network

---

Q8. Eigenvector centrality and PageRank both account for the importance of a node’s neighbours. What is the key practical difference between them?

PageRank adds a random teleportation step (damping factor) that ensures convergence in directed and disconnected networks
Eigenvector centrality is always numerically larger than PageRank for the most central nodes
PageRank can only be computed on networks with fewer than 100 nodes
They are mathematically identical; PageRank is simply the branded name for eigenvector centrality

---

Community Detection

Section Overview

What you will learn: What communities (modules) are in a network; how modularity \(Q\) is defined; how the Louvain algorithm maximises modularity; how to run community detection with igraph::cluster_louvain(); how to add community membership to the visualisation; how to cross-tabulate detected communities against predefined labels; and how to interpret community structure in literary networks

What Are Communities?

A community (also called a module or cluster) in a network is a group of nodes that are more densely connected to each other than to nodes outside the group. Community detection is the network-level analogue of cluster analysis: it discovers latent grouping structure from the pattern of connections alone, without any predefined labels.

Community structure is ubiquitous in real-world networks. Social networks cluster by shared interests, geography, or profession. Word co-occurrence networks cluster by semantic domain. Character networks in drama cluster by narrative function — which may or may not correspond to surface-level categories such as family membership.

Modularity and the Louvain Algorithm

The most widely used criterion for community quality is modularity \(Q\), which measures how much the density of within-community edges exceeds what would be expected by chance in a null model that preserves the degree sequence:

\[Q = \frac{1}{2m} \sum_{i,j} \left[ A_{ij} - \frac{k_i k_j}{2m} \right] \delta(c_i, c_j)\]

where \(m\) is the total number of edges, \(A_{ij}\) is the adjacency matrix, \(k_i\) is the degree of node \(i\), and \(\delta(c_i, c_j) = 1\) if nodes \(i\) and \(j\) belong to the same community. Values of \(Q\) above 0.3–0.4 are generally considered indicative of meaningful community structure; values near 0 indicate no structure beyond chance.

The Louvain algorithm is a greedy modularity-maximisation method that scales to large networks. It proceeds in two phases repeated iteratively: first, each node is reassigned to the community of its neighbour that yields the largest increase in \(Q\); second, communities are aggregated into super-nodes and the process repeats on the reduced network. The algorithm terminates when no further improvement in \(Q\) is possible.

set.seed(2026)
communities <- igraph::cluster_louvain(ig)

cat("Modularity Q:          ", round(igraph::modularity(communities), 3), "\n")

Modularity Q:           0.092

cat("Number of communities: ", length(communities), "\n")

Number of communities:  2

igraph::membership(communities)

     BALTHASAR       BENVOLIO        CAPULET  FIRST CITIZEN  FIRST SERVANT
             1              2              2              1              2
FRIAR LAWRENCE         JULIET   LADY CAPULET       MERCUTIO       MONTAGUE
             1              2              1              1              1
         NURSE          PARIS          PETER         PRINCE          ROMEO
             2              1              1              1              1
SECOND SERVANT        SERVANT         TYBALT
             2              2              2

We add community membership to the node attribute table and rebuild the graph objects:

va <- va |>
    dplyr::mutate(community = as.character(igraph::membership(communities)))

ig2 <- igraph::graph_from_data_frame(d = ed, vertices = va, directed = FALSE)
tg2 <- tidygraph::as_tbl_graph(ig2) |>
    tidygraph::activate(nodes) |>
    dplyr::mutate(label = name)

Visualising Communities

set.seed(2026)

tg2 |>
    ggraph::ggraph(layout = "fr") +

    geom_edge_arc(
        colour   = "gray70",
        lineend  = "round",
        strength = 0.1,
        aes(edge_width = n, alpha = n)
    ) +

    geom_node_point(
        aes(color = community),
        size = log(va$n) * 2
    ) +

    geom_node_text(
        aes(label = label),
        repel         = TRUE,
        point.padding = unit(0.2, "lines"),
        size          = sqrt(va$n),
        colour        = "gray10"
    ) +

    scale_edge_width(range = c(0.2, 3)) +
    scale_edge_alpha(range = c(0.05, 0.4)) +

    theme_graph(background = "white") +

    theme(legend.position = "top") +

    labs(color = "Community") +

    guides(edge_width = "none", edge_alpha = "none")

Character co-occurrence network coloured by Louvain community membership. Node size = log(total frequency); edge width = shared-scene count.

Comparing Communities to Family Membership

Cross-tabulating detected communities against predefined family labels reveals the extent to which network-derived groupings and theoretically motivated categories agree or diverge:

va |>
    dplyr::count(community, type) |>
    tidyr::pivot_wider(names_from = type, values_from = n, values_fill = 0) |>
    dplyr::arrange(community) |>
    flextable::flextable() |>
    flextable::set_table_properties(width = .6, layout = "autofit") |>
    flextable::theme_zebra() |>
    flextable::fontsize(size = 12) |>
    flextable::fontsize(size = 12, part = "header") |>
    flextable::align_text_col(align = "center") |>
    flextable::set_caption(caption = "Louvain community membership cross-tabulated with family affiliation.") |>
    flextable::border_outer()

community	Capulet	Montague	Other
1	2	3	5
2	5	1	2

Partial overlap — where Romeo is grouped with Juliet and Friar Lawrence rather than with other Montagues — reflects the actual pattern of shared scenes: the central love-plot characters co-occur most densely with each other, cutting across family lines. This is a substantive interpretive finding that emerges directly from the network data.

Exercises: Community Detection

Q9. The Louvain algorithm places Romeo in a community with Juliet and Friar Lawrence rather than with other Montague characters. What does this tell us?

Romeo has more shared scenes with Juliet and Friar Lawrence than with the other Montague characters
The Louvain algorithm always groups the protagonists together regardless of the data
Romeo and Friar Lawrence are both members of the Montague family
Community detection is unreliable for small literary networks

---

Q10. A network with modularity Q = 0.06 and one with Q = 0.71 are compared. What do these values tell you?

Q = 0.06 has 6 communities and Q = 0.71 has 71 communities
Q = 0.71 has strong community structure; Q = 0.06 has little or no community structure beyond chance
Q = 0.06 means the network is fully connected; Q = 0.71 means it is fragmented into isolated clusters
Both values are acceptable; modularity is not a reliable indicator of community quality

---

Word Co-occurrence Networks

Section Overview

What you will learn: How to build a word co-occurrence network from a text using quanteda’s feature co-occurrence matrix (FCM); how context window size affects the network; how to select high-frequency content words for a legible network; how to use PPMI (positive pointwise mutual information) as an association-adjusted edge weight; and how the semantic structure of a text emerges from its word co-occurrence patterns

From Characters to Words

So far the network has modelled character co-occurrence: nodes are characters and edges connect characters that appear in the same scene. The same pipeline applies equally well to word co-occurrence: nodes are words and edges connect words that appear within the same context window, with edge weight equal to the co-occurrence frequency. This is a foundational technique in distributional semantics and underlies word embedding models such as Word2Vec and GloVe.

Two design decisions are critical:

The context window size determines which pairs of words are counted as co-occurring. A narrow window (2–5 tokens) captures syntactic and collocational relationships. A wide window (10–20 tokens) captures topic-level associations. For linguistic collocation analysis, narrow windows are generally preferred.

The vocabulary filter determines which words become nodes. Without filtering, the network would contain thousands of nodes — mostly function words or rare types — making it uninterpretable. The two common strategies are: (a) keep only the \(k\) most frequent content words after stopword removal, or (b) filter by a minimum co-occurrence frequency combined with a minimum PMI score.

Building the Feature Co-occurrence Matrix

We build the FCM from the character names in net_dat (the data already loaded), treating the combined name sequence as a text. This creates a word network of the character name vocabulary as a demonstration of the FCM pipeline:

romeo_corpus <- quanteda::corpus(
    paste(net_dat$person, collapse = " ")
)

romeo_toks <- quanteda::tokens(
    romeo_corpus,
    remove_punct   = TRUE,
    remove_numbers = TRUE,
    remove_symbols = TRUE
) |>
    quanteda::tokens_tolower()

romeo_fcm <- quanteda::fcm(
    romeo_toks,
    context = "window",
    window  = 5,
    tri     = FALSE
)

cat("FCM dimensions:", dim(romeo_fcm), "\n")

FCM dimensions: 19 19

Selecting High-Frequency Terms

We keep the top 40 most frequent features so the resulting network remains interpretable:

# coerce to plain matrix first to avoid NA issues in sparse FCM
romeo_fcm_mat <- as.matrix(romeo_fcm)

# drop any all-zero rows/columns before summing
romeo_fcm_mat <- romeo_fcm_mat[
    rowSums(romeo_fcm_mat, na.rm = TRUE) > 0,
    colSums(romeo_fcm_mat, na.rm = TRUE) > 0
]

top_features <- names(
    sort(colSums(romeo_fcm_mat, na.rm = TRUE), decreasing = TRUE)
)[1:40]

# keep only top_features that exist as both row and column names
valid_features <- intersect(top_features, rownames(romeo_fcm_mat))
valid_features <- intersect(valid_features, colnames(romeo_fcm_mat))

romeo_fcm_top <- quanteda::as.fcm(
    romeo_fcm_mat[valid_features, valid_features]
)

Visualising the Word Network

quanteda.textplots::textplot_network(
    x              = romeo_fcm_top,
    min_freq       = 0.5,
    edge_alpha     = 0.4,
    edge_color     = "steelblue",
    edge_size      = 2,
    vertex_labelsize = log(colSums(romeo_fcm_top) + 1),
    vertex_color   = "#4D4D4D",
    vertex_size    = 1.5
)

Word co-occurrence network for the 40 most frequent terms in the Romeo and Juliet character-scene data (5-token context window). Label size is scaled to log marginal frequency.

PMI-Weighted Word Networks

Raw co-occurrence frequency is biased towards frequent words: very common words co-occur often with everything, not because they are specifically associated but simply because they are ubiquitous. Pointwise mutual information (PMI) corrects for this by measuring how much more often two words co-occur than expected given their individual frequencies:

\[\text{PMI}(w_1, w_2) = \log_2 \frac{P(w_1, w_2)}{P(w_1) \cdot P(w_2)}\]

Positive PMI indicates that the two words co-occur more than expected; negative PMI indicates less. In practice, positive PMI (PPMI) — clamping negative values to zero — is used as an edge weight in word networks, since negative values are unreliable for sparse data.

marg     <- colSums(romeo_fcm_top)
total    <- sum(marg)
fcm_mat  <- as.matrix(romeo_fcm_top)
p_joint  <- fcm_mat / total
p_marg   <- marg / total
pmi_mat  <- log2((p_joint + 1e-10) / (outer(p_marg, p_marg) + 1e-10))
ppmi_mat <- pmax(pmi_mat, 0)
ppmi_fcm <- quanteda::as.fcm(ppmi_mat)

quanteda.textplots::textplot_network(
    x              = ppmi_fcm,
    min_freq       = 0.1,
    edge_alpha     = 0.5,
    edge_color     = "#8c510a",
    edge_size      = 2,
    vertex_labelsize = log(colSums(romeo_fcm_top) + 1),
    vertex_color   = "#4D4D4D",
    vertex_size    = 1.5
)

PPMI-weighted word co-occurrence network. Edge thickness reflects associative strength rather than raw frequency, making genuine semantic associations more prominent.

Comparing the raw-frequency and PPMI-weighted networks reveals an important difference: in the raw network, high-frequency terms (which co-occur often with many others simply by chance) dominate the edge structure. In the PPMI network, only genuinely associated pairs — terms that appear together more than their individual frequencies predict — have thick edges. This makes the semantic clustering more apparent and the network more interpretable.

Exercises: Word Co-occurrence Networks

Q11. You increase the context window from 5 to 20 tokens when building the FCM. What effect would you expect on the resulting word network?

The network would have fewer edges because more words would fall below the frequency threshold
The network would become denser with more and stronger edges, because more word pairs fall within the wider window
The network would have the same structure — context window size does not affect FCM counts
The network would only change for rare words, not for frequent ones

---

Q12. Why might PPMI weighting be preferred over raw co-occurrence frequency as an edge weight in a word network?

PPMI always produces fewer edges, making the network easier to visualise
Raw frequency favours high-frequency words that co-occur with many others by chance; PPMI adjusts for individual word frequency, highlighting genuinely associated pairs
PPMI is faster to compute than raw co-occurrence frequency counts
Raw co-occurrence frequency produces negative edge weights, which igraph cannot handle

---

Interactive Networks

Section Overview

What you will learn: How to create interactive network visualisations using visNetwork; when interactive networks are preferable to static ones; how to configure nodes and edges with tooltips, colours, and data-driven sizes; how to add physics simulation, selection controls, and a legend; how to embed an interactive network in a Quarto HTML document; and how to export the interactive network for sharing

Why Interactive Networks?

Static ggraph plots are ideal for publications and reports where the figure is fixed. Interactive networks serve a different purpose: they allow readers to explore the data themselves — hovering over nodes to inspect attributes, clicking to highlight connections, dragging nodes to examine local structure, zooming into dense regions, and filtering by group. For teaching, exploration, or web-based reporting, interactive visualisations are often more useful than static ones.

The visNetwork package provides an R interface to the vis.js JavaScript library, rendering fully interactive networks in any modern web browser. Because visNetwork outputs HTML+JavaScript, it integrates naturally with Quarto HTML documents and R Shiny applications.

Preparing Data for visNetwork

visNetwork requires two data frames: one for nodes (with at minimum an id column) and one for edges (with from and to columns). We build these from the objects already created:

vis_nodes <- va |>
    dplyr::rename(id = node) |>
    dplyr::mutate(
        label = id,
        value = sqrt(n),
        color = dplyr::case_when(
            type == "Montague" ~ "#2166ac",
            type == "Capulet"  ~ "#d6604d",
            TRUE               ~ "#4dac26"
        ),
        title = paste0(
            "<b>", id, "</b><br>",
            "Family: ", type, "<br>",
            "Total lines: ", n
        )
    )

vis_edges <- ed |>
    dplyr::mutate(
        width = n / max(n) * 5,
        title = paste0("Shared scenes: ", n)
    )

The title column in both data frames provides the HTML tooltip shown when hovering over a node or edge. The value column controls node size (visNetwork scales this automatically). The color column sets the node fill colour.

Building the Interactive Plot

visNetwork::visNetwork(
    nodes  = vis_nodes,
    edges  = vis_edges,
    width  = "100%",
    height = "600px",
    main   = "Romeo and Juliet: Character Co-occurrence Network"
) |>
    visNetwork::visNodes(
        shape       = "dot",
        font        = list(size = 14, color = "black"),
        borderWidth = 1.5,
        shadow      = list(enabled = TRUE, size = 5)
    ) |>
    visNetwork::visEdges(
        color  = list(color = "gray70", highlight = "#e41a1c"),
        smooth = list(enabled = TRUE, type = "curvedCW", roundness = 0.1),
        shadow = FALSE
    ) |>
    visNetwork::visOptions(
        highlightNearest = list(enabled = TRUE, degree = 1, hover = TRUE),
        nodesIdSelection = TRUE,
        selectedBy       = list(variable = "type", main = "Select by family")
    ) |>
    visNetwork::visLayout(
        randomSeed = 2026
    ) |>
    visNetwork::visPhysics(
        solver = "forceAtlas2Based",
        forceAtlas2Based = list(
            gravitationalConstant = -50,
            centralGravity        = 0.005,
            springLength          = 100,
            springConstant        = 0.08
        ),
        stabilization = list(iterations = 150)
    ) |>
    visNetwork::visLegend(
        addNodes = data.frame(
            label = c("Montague", "Capulet", "Other"),
            color = c("#2166ac", "#d6604d", "#4dac26"),
            shape = "dot"
        ),
        useGroups = FALSE,
        position  = "right"
    ) |>
    visNetwork::visInteraction(
        navigationButtons = TRUE,
        tooltipDelay      = 100
    )

Exploring the Interactive Network

Once rendered in a browser, you can:

• Hover over a node to see its tooltip (character name, family, total lines)
• Hover over an edge to see how many scenes the two characters share
• Click a node to highlight its direct neighbours (degree-1 neighbourhood)
• Drag nodes to rearrange the layout manually
• Scroll to zoom in and out
• Use the dropdown to select all Montague, Capulet, or Other characters at once
• Use the navigation buttons to pan and zoom

Customising visNetwork

The table below summarises the most useful visNetwork customisation functions:

Function	Purpose
visNodes()	Node shape, font, border, shadow
visEdges()	Edge colour, smoothing curve type, arrows
visOptions()	Nearest-neighbour highlighting, node selection dropdown
visLayout()	Random seed, hierarchical layout option
visPhysics()	Physics solver algorithm and spring constants
visLegend()	Colour legend
visInteraction()	Navigation buttons, tooltip delay, keyboard shortcuts
visGroups()	Group-based styling (alternative to per-node colour)
visExport()	Add a “Download as PNG” button

To add an export button:

# append to the pipe chain above
visNetwork::visExport(type = "png", name = "romeo_network")

To render the interactive network in a self-contained HTML file for sharing:

# save as standalone HTML (no R required to view)
net_widget <- visNetwork::visNetwork(
    nodes = vis_nodes, edges = vis_edges, width = "100%", height = "600px"
)
visNetwork::visSave(net_widget, file = "romeo_network_interactive.html",
                    selfcontained = TRUE)

Exercises: Interactive Networks

Q13. In visNetwork, the option highlightNearest = list(enabled = TRUE, degree = 1) is set. What happens when you click on the ROMEO node?

Romeo and all nodes within 1 hop (direct neighbours) are highlighted; all others are dimmed
The 1 nearest node by geographic distance in the layout is highlighted
All nodes with degree centrality = 1 (leaf nodes) in the network are highlighted
The network resets so that Romeo moves to the centre of the layout

---

Q14. A colleague wants to share the interactive Romeo and Juliet network with collaborators who do not have R installed. What is the best approach?

Send them the .rds igraph file and ask them to install R and igraph
Render the Quarto document to a self-contained HTML file and share the .html file
Take a screenshot of the visNetwork widget in the RStudio Viewer pane
Export as a static PDF using ggsave() — PDF preserves interactivity

---

Exporting Networks

Section Overview

What you will learn: How to save ggraph plots as PNG or PDF; how to write edge lists and node tables to CSV for Gephi or Cytoscape; how to export in standard graph formats (GraphML, GML); and how to save igraph objects as RDS files for future R sessions

Saving Static Network Plots

Use ggplot2::ggsave() immediately after any ggraph plot. For publications prefer vector PDF; for slides or web use prefer PNG at ≥ 300 dpi.

ggplot2::ggsave("romeo_network.png",  width = 10, height = 8, dpi = 300, bg = "white")
ggplot2::ggsave("romeo_network.pdf",  width = 10, height = 8)

Writing Edge Lists and Node Tables to CSV

To use the network in Gephi, Cytoscape, or NodeXL, export the edge list and node attribute table as CSV files. Most tools expect from, to, and optionally weight in the edge file, and a column id in the node file matching the node names used in the edge file.

readr::write_csv(ed, "romeo_edges.csv")
readr::write_csv(centrality_summary, "romeo_nodes.csv")

Standard Graph Exchange Formats

igraph can write networks in several standard formats: GraphML (XML-based, supported by Gephi, Cytoscape, and most network tools) and GML (a simpler text-based format widely used in network research).

igraph::write_graph(ig, file = "romeo_network.graphml", format = "graphml")
igraph::write_graph(ig, file = "romeo_network.gml",     format = "gml")

ig_from_graphml <- igraph::read_graph("romeo_network.graphml", format = "graphml")

Saving the igraph Object as RDS

To avoid rebuilding the network from scratch in a future session, save the igraph object:

saveRDS(ig, "romeo_network.rds")
ig_loaded <- readRDS("romeo_network.rds")

---

Summary and Further Reading

This tutorial has provided a comprehensive introduction to network analysis in R, from formal graph theory to interactive visualisation.

We began with the vocabulary of graph theory — nodes, edges, directed vs. undirected, weighted vs. unweighted, adjacency matrices, edge lists, and global network properties (density, diameter, transitivity). We then built a character co-occurrence network for Shakespeare’s Romeo and Juliet step by step: loading raw data, constructing the co-occurrence matrix with crossprod(), creating node attribute and edge list tables, and combining them into an igraph/tidygraph graph object.

Network visualisation was covered at two levels — a rapid exploratory textplot_network() and a fully customisable ggraph plot encoding node colour (family), node size (frequency), and edge width and transparency (shared-scene count). We discussed layout algorithms, the Fruchterman–Reingold force-directed method, and the role of set.seed() for reproducibility.

Five centrality measures were computed, formally defined, and interpreted in the context of the play: degree (social reach), betweenness (brokerage), closeness (proximity to all others), eigenvector centrality (influence through well-connected neighbours), and PageRank (robust directed-network influence). All five were compared in a combined summary table and faceted bar chart.

Community detection using the Louvain algorithm revealed that network-derived groupings correspond more closely to dramatic function — the love plot, the street-brawl characters, the family hierarchy — than to simple family membership. This is a substantive interpretive result that emerges from the data alone.

The same pipeline was extended to word co-occurrence networks, demonstrating FCM construction from tokenised text, PPMI weighting to correct for high-frequency bias, and the emergence of semantic clusters from lexical co-occurrence patterns.

Interactive visualisation with visNetwork allows browser-based network exploration with hover tooltips, click-to-highlight, node selection by attribute, and physics simulation. Self-contained HTML export means interactive networks can be shared with anyone who has a modern browser.

Further reading: For a broader treatment of network science see Pósfai and Barabási (2016). For statistical approaches see Kolaczyk and Csárdi (2014). For applications in computational linguistics and digital humanities see Moretti (2011), Trilcke et al. (2016), and Croft (2001). For word embedding and distributional semantics see Mikolov et al. (2013).

---

Citation & Session Info

Schweinberger, Martin. 2026. Network Analysis using R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/net/net.html (Version 2026.05.01).

@manual{schweinberger2026net,
  author       = {Schweinberger, Martin},
  title        = {Network Analysis using R},
  note         = {tutorials/net/net.html},
  year         = {2026},
  organization = {The University of Queensland, Australia. School of Languages and Cultures},
  address      = {Brisbane},
  edition      = {2026.05.01}
}

AI Transparency Statement

This tutorial was written with the assistance of Claude (claude.ai), a large language model created by Anthropic. Claude was used to substantially expand and restructure a shorter existing LADAL tutorial on network analysis. All content was reviewed and approved by Martin Schweinberger, who takes full responsibility for its accuracy.

sessionInfo()

R version 4.4.2 (2024-10-31 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: Australia/Brisbane
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] tm_0.7-16             NLP_0.3-2             lubridate_1.9.4
 [4] forcats_1.0.0         stringr_1.5.1         dplyr_1.1.4
 [7] purrr_1.0.4           readr_2.1.5           tidyr_1.3.1
[10] tibble_3.2.1          tidyverse_2.0.0       tidygraph_1.3.1
[13] sna_2.8               statnet.common_4.11.0 quanteda_4.2.0
[16] network_1.19.0        Matrix_1.7-2          igraph_2.1.4
[19] gutenbergr_0.2.4      ggraph_2.2.1          GGally_2.2.1
[22] ggplot2_3.5.1         flextable_0.9.7

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1        viridisLite_0.4.2       farver_2.1.2
 [4] viridis_0.6.5           fastmap_1.2.0           tweenr_2.0.3
 [7] fontquiver_0.2.1        digest_0.6.37           timechange_0.3.0
[10] lifecycle_1.0.4         magrittr_2.0.3          compiler_4.4.2
[13] rlang_1.1.5             tools_4.4.2             utf8_1.2.4
[16] yaml_2.3.10             data.table_1.17.0       knitr_1.49
[19] labeling_0.4.3          askpass_1.2.1           stopwords_2.3
[22] graphlayouts_1.2.2      htmlwidgets_1.6.4       plyr_1.8.9
[25] xml2_1.3.6              RColorBrewer_1.1-3      klippy_0.0.0.9500
[28] withr_3.0.2             grid_4.4.2              polyclip_1.10-7
[31] gdtools_0.4.1           colorspace_2.1-1        scales_1.3.0
[34] MASS_7.3-61             cli_3.6.4               rmarkdown_2.29
[37] ragg_1.3.3              generics_0.1.3          rstudioapi_0.17.1
[40] tzdb_0.4.0              quanteda.textplots_0.95 cachem_1.1.0
[43] ggforce_0.4.2           assertthat_0.2.1        parallel_4.4.2
[46] vctrs_0.6.5             slam_0.1-55             jsonlite_1.9.0
[49] fontBitstreamVera_0.1.1 hms_1.1.3               ggrepel_0.9.6
[52] systemfonts_1.2.1       glue_1.8.0              ggstats_0.8.0
[55] codetools_0.2-20        stringi_1.8.4           gtable_0.3.6
[58] munsell_0.5.1           pillar_1.10.1           htmltools_0.5.8.1
[61] openssl_2.3.2           R6_2.6.1                textshaping_1.0.0
[64] evaluate_1.0.3          lattice_0.22-6          memoise_2.0.1
[67] renv_1.1.1              fontLiberation_0.1.0    Rcpp_1.0.14
[70] zip_2.3.2               uuid_1.2-1              fastmatch_1.1-6
[73] coda_0.19-4.1           gridExtra_2.3           officer_0.6.7
[76] xfun_0.51               pkgconfig_2.0.3

---

Back to top

Back to LADAL home

---

References

Croft, William. 2001. Radical Construction Grammar: Syntactic Theory in Typological Perspective. OUP Oxford.

Kolaczyk, Eric D, and Gábor Csárdi. 2014. Statistical Analysis of Network Data with r. Vol. 65. Springer.

Mikolov, Tomas, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. 2013. “Distributed Representations of Words and Phrases and Their Compositionality.” Advances in Neural Information Processing Systems 26.

Moretti, Franco. 2011. “Network Theory, Plot Analysis.”

Pósfai, Márton, and Albert-László Barabási. 2016. Network Science. Vol. 3. Cambridge University Press Cambridge, UK.

Trilcke, Peer, Frank Fischer, Mathias Göbel, Dario Kampkaspar, and Christopher Kittel. 2016. “Theatre Plays as’ Small Worlds’? Network Data on the History and Typology of German Drama, 1730-1930.” In DH, 385–87.
