Tree-Based Models in R

Author

Martin Schweinberger

Introduction

This tutorial introduces tree-based models and their implementation in R. Tree-based models are a family of flexible, non-parametric machine-learning methods that partition data into increasingly homogeneous subgroups by applying a sequence of binary splitting rules. They are widely used in linguistics and the language sciences for classification and prediction tasks — for example, predicting whether a speaker will use a pragmatic marker, which amplifier they will choose, or whether a learner will produce a morphological error.

The tutorial is aimed at intermediate and advanced users of R. It is not designed to provide an exhaustive theoretical treatment but to show how to implement, evaluate, and interpret the three most important tree-based methods used in linguistic research: Conditional Inference Trees (CITs), Random Forests (RFs), and Boruta variable selection. For deeper theoretical treatment, the reader is referred to Breiman (2001b), Strobl, Malley, and Tutz (2009), Prasad, Iverson, and Liaw (2006), and especially Gries (2021), which provides a detailed and linguistically oriented discussion of tree-based methods.

Prerequisite Tutorials

This tutorial assumes familiarity with the following:

Getting Started with R — R objects, functions, basic syntax
Loading, Saving, and Simulating Data in R — data import, here, file paths
Handling Tables in R — data frames, dplyr, tidyr
Regression Analysis in R — fixed-effects logistic regression; understanding accuracy, deviance, and model fit

If you are new to regression modelling, work through the regression tutorial first — many tree diagnostics (confusion matrices, accuracy, C-statistic) are introduced there.

Learning Objectives

By the end of this tutorial you will be able to:

Explain what tree-based models are, when they are appropriate, and how they differ from regression models
Understand the Gini impurity criterion and describe how a decision tree chooses splits
Explain the difference between a CART and a Conditional Inference Tree

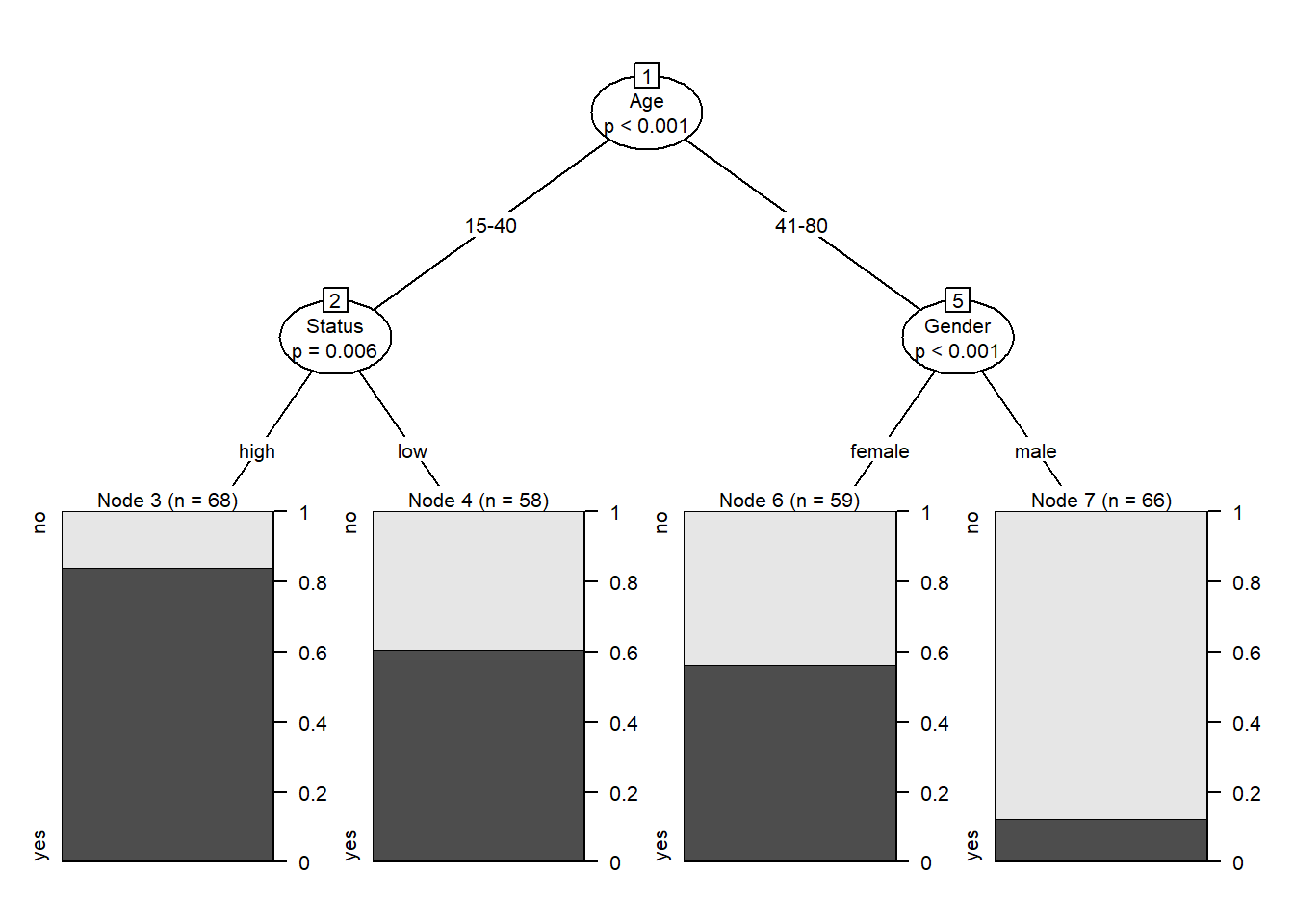

Fit, plot, and interpret a CIT using partykit::ctree()
Produce publication-quality CIT visualisations with ggparty
Explain how Random Forests extend CITs through bootstrapping and random variable selection
Fit, evaluate, and interpret a Random Forest using both party::cforest() and randomForest::randomForest()
Extract and visualise variable importance from a Random Forest

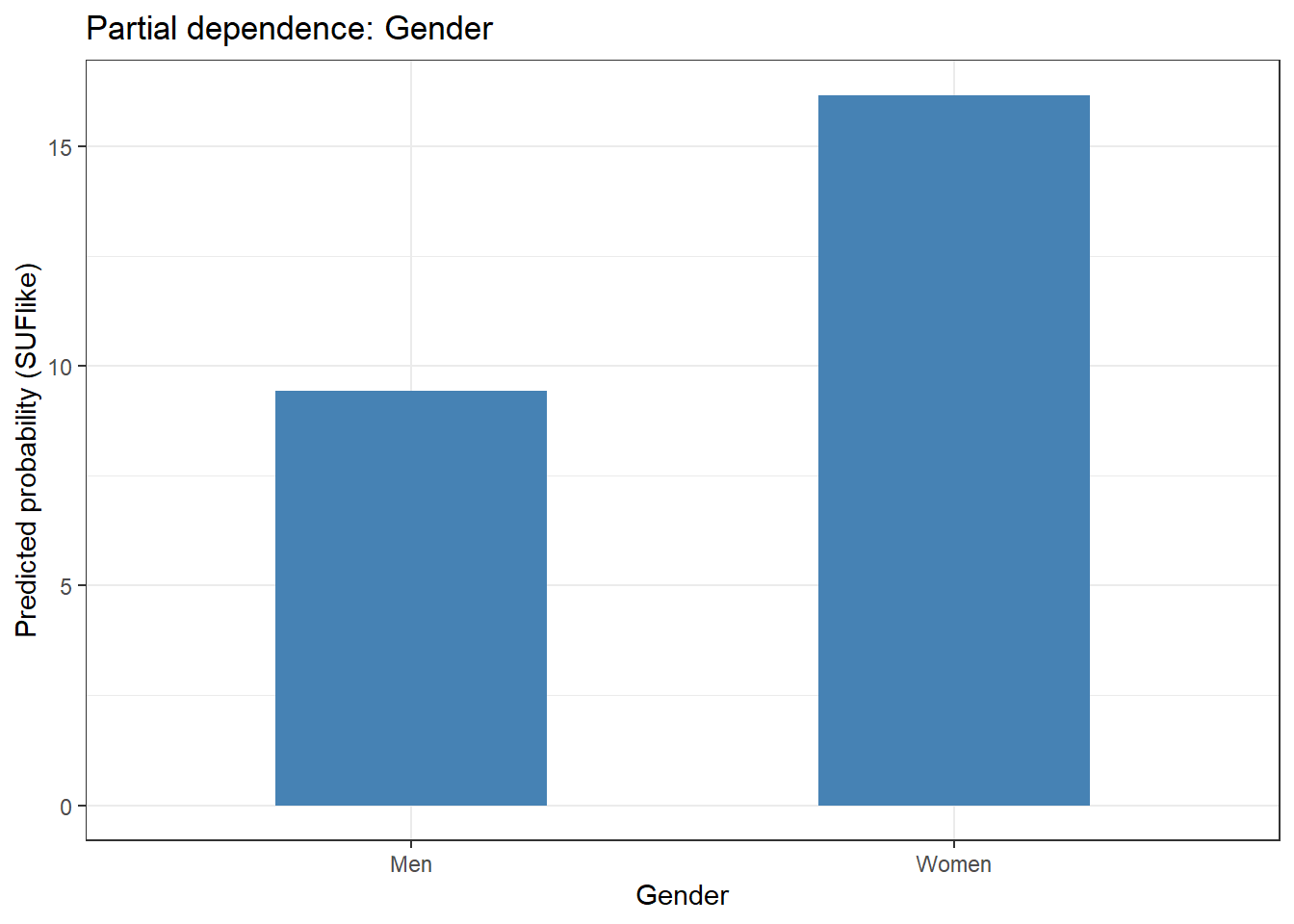

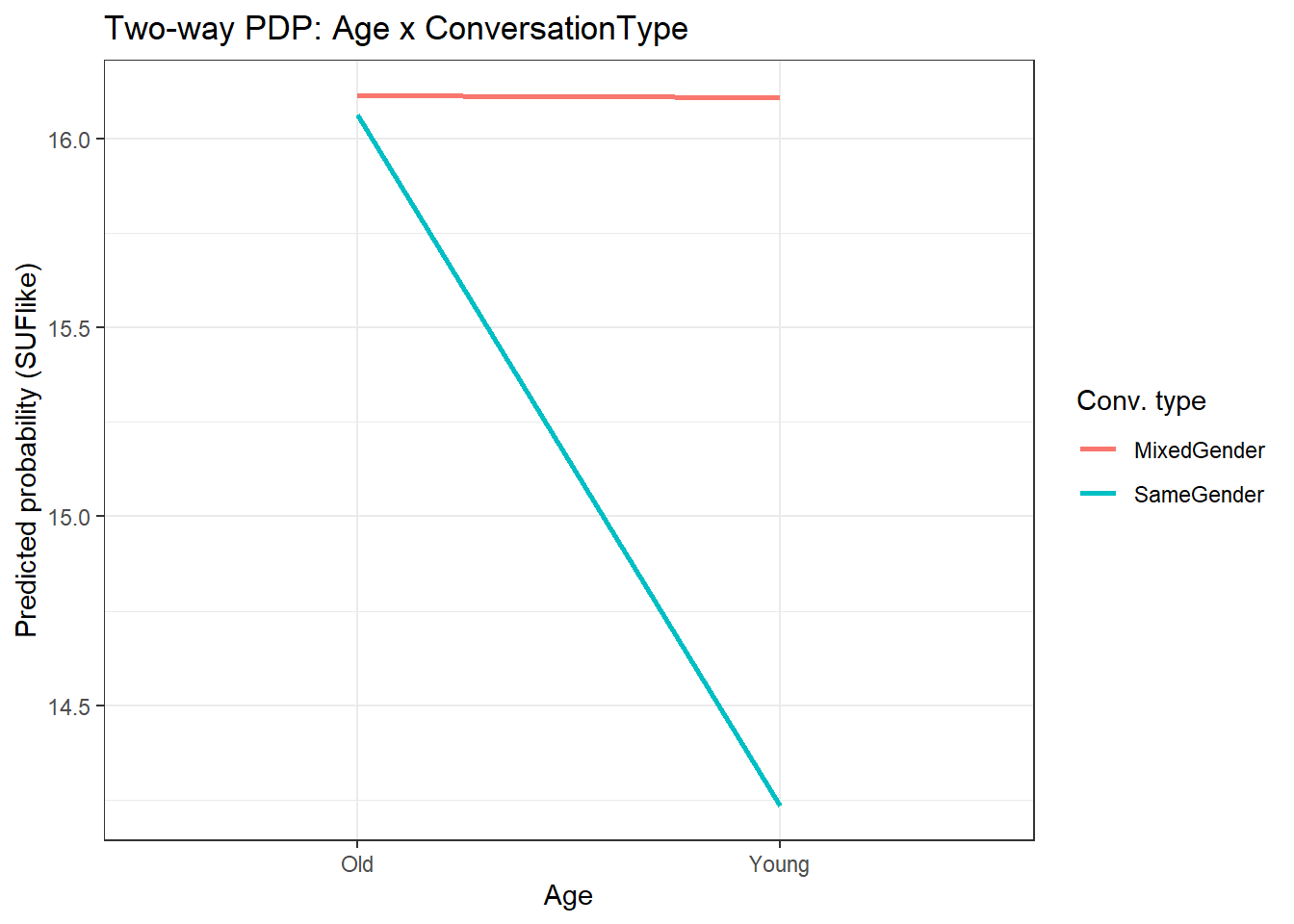

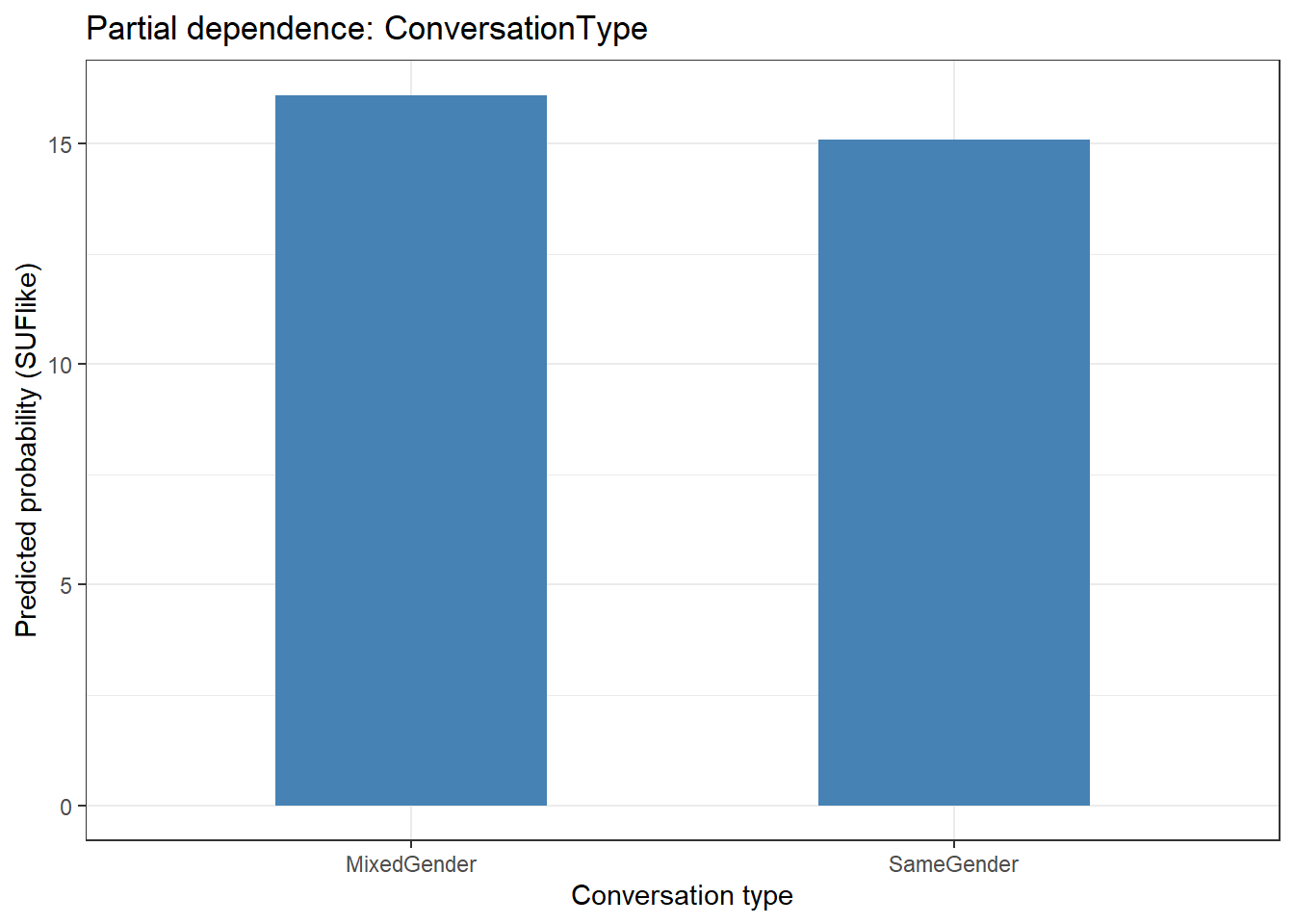

Interpret partial dependence plots and two-way interaction plots
Explain what Boruta does and how it differs from a standard Random Forest
Run a Boruta analysis, interpret confirmed/tentative/rejected variables, and visualise results
Evaluate model performance using confusion matrices, accuracy, C-statistic, and Somers’ D
Apply cross-validation and train/test splitting to assess model generalisability

Citation

Schweinberger, Martin. 2026. Tree-Based Models in R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/tree/tree.html (Version 2026.02.24).

Tree-Based Models: Concepts and Context

Section Overview

What you will learn: What tree-based models are, how they differ from regression models, when they are more (and less) appropriate for linguistic research, and how the three methods covered in this tutorial relate to one another

What Are Tree-Based Models?

A tree-based model answers the question: How do we best classify or predict an outcome given a set of predictors? It does so by recursively partitioning the data — splitting it into two subgroups at each step according to the predictor and threshold that best separates the outcome categories. The result is a tree-shaped diagram where:

The root node is the first (most important) split
Internal nodes are subsequent splits
Leaf nodes (terminal nodes) are the final groups, each associated with a predicted outcome

All tree-based methods share this recursive partitioning logic. They differ in how they decide where to split (Gini impurity vs. significance tests), how many trees they build (one vs. an ensemble of hundreds), and what question they answer (classification, variable importance, or variable selection).

Tree-Based Models vs. Regression Models

Tree-based models and regression models answer different questions and have complementary strengths:

Tree-based models vs. regression models
Feature	Regression models	Tree-based models
Primary goal	Inference — estimate effect sizes, directions, and significance	Classification / prediction — assign cases to categories
Effect direction	✓ Reports positive/negative relationships	✗ Does not report direction
Interactions	Requires explicit specification	Detects automatically
Non-linearity	Requires transformation or polynomial terms	Handles naturally
Distributional assumptions	Many (normality, linearity, etc.)	Very few (non-parametric)
Sample size	Performs well with large samples	Can work with moderate samples
Categorical predictors	Limited to ~10–20 levels	Limited to ~53 levels (factor constraint)
Multicollinearity	Seriously affected	Less affected
Overfitting	Less prone (with regularisation)	Prone (CITs); resistant (RFs, Boruta)
Interpretability	High (coefficients with SEs)	Moderate (trees) to low (forests)

Tree-Based Models Are Not a Replacement for Regression

Tree-based models are best understood as complementary to regression, not as substitutes. They excel at detecting complex, high-order interactions and non-linear patterns without assumptions, and are ideal when you want to know which variables matter rather than how much they matter or in which direction. For drawing inferences about the direction, magnitude, and significance of specific predictors — as is required for most linguistic hypotheses — regression models remain the appropriate tool (Gries 2021).

The Three Methods and When to Use Them

This tutorial covers three related tree-based methods. The table below summarises their key properties and appropriate use cases:

The three tree-based methods covered in this tutorial
Method	Builds	Provides	Overfitting	Best for
Conditional Inference Tree	One tree	Visual classification tree with p-values	Prone	Exploring patterns; presentations; teaching
Random Forest	100–1000 trees	Variable importance ranking	Resistant	Predicting outcomes; variable importance
Boruta	1000s of forests	Variable selection (confirmed/tentative/rejected)	Resistant	Variable selection before regression

Advantages of Tree-Based Methods

Tree-based models offer several advantages for linguistic research:

Flexibility: They handle numeric, ordinal, and nominal predictors simultaneously without transformation
Moderate sample sizes: They perform well with the sample sizes typical in linguistics (50–500 observations), whereas many machine-learning methods require thousands
High-order interactions: They detect and display complex interactions among many predictors automatically, which regression models struggle with
Non-linear and non-monotonic relationships: They do not assume linearity between predictors and the outcome
Easy implementation: They require no model selection, variable transformation, or distributional diagnostics

Limitations and Warnings

Gries (2021) provides a thorough and critical assessment of tree-based methods. Key limitations include:

Variable importance without direction: Forest-based methods (RF, Boruta) report that a variable matters but not how — not whether higher values of the predictor increase or decrease the outcome probability
Importance conflates main effects and interactions: A variable may be important as a main effect, as part of an interaction, or both — the importance score does not distinguish these
Single-interaction failure: Simple tree structures can fail to detect the correct predictor when variance is determined entirely by a single interaction (Gries 2021, chap. 7.3), because the root-node predictor is selected for its main effect, not its interaction potential
Strong main effects mask interactions: Tree-based models are poor at detecting interactions when predictors have strong main effects, which is common in linguistic data (Wright, Ziegler, and König 2016)
Factor level limits: Tree-based methods cannot handle factors with more than 53 levels — problematic for speaker or item as predictors
Bootstrapping illusion: RF and Boruta appear to handle small datasets well because they re-sample the data repeatedly, but this does not add new information — it inflates an existing small dataset rather than constituting genuine robustness

Setup

Installing Packages

Code

# Run once — comment out after installation
install.packages("Boruta")
install.packages("caret")
install.packages("flextable")
install.packages("ggparty")
install.packages("Gmisc")
install.packages("grid")
install.packages("here")
install.packages("Hmisc")
install.packages("party")
install.packages("partykit")
install.packages("pdp")
install.packages("randomForest")
install.packages("tidyverse")
install.packages("tidyr")
install.packages("tree")
install.packages("vip")

Loading Packages

Code

library(Boruta)
library(caret)
library(flextable)
library(ggparty)
library(Gmisc)
library(grid)
library(here)
library(Hmisc)
library(party)
library(partykit)
library(pdp)
library(randomForest)
library(tidyverse)
library(tidyr)
library(tree)
library(vip)

Classification and Regression Trees

Section Overview

What you will learn: How a basic CART decision tree works step by step; how the Gini impurity criterion selects splits for binary, numeric, ordinal, and multi-level categorical variables; how to prune a tree; and how to evaluate decision tree accuracy using a confusion matrix — building the conceptual foundation for Conditional Inference Trees and Random Forests

How Decision Trees Work

A decision tree classifies each observation by routing it through a sequence of binary yes/no questions. At each internal node, the algorithm asks: which predictor, split at which value, best separates the outcome categories? The quality of a split is measured by its impurity — lower impurity means the resulting subgroups are more homogeneous with respect to the outcome, which is what we want.

The tree structure has three types of elements:

Root node — the first (most important) split; at the very top of the diagram
Internal nodes — subsequent splits that further partition the data
Leaf nodes (terminal nodes) — the final groups, each carrying a predicted class label

Code

# Load and prepare the discourse like data
citdata <- read.delim(here::here("tutorials/tree/data/treedata.txt"),
                      header = TRUE, sep = "\t") |>
  dplyr::mutate_if(is.character, factor)

# Inspect structure
str(citdata)

'data.frame':   251 obs. of  4 variables:
 $ Age     : Factor w/ 2 levels "15-40","41-80": 1 1 1 2 2 2 2 1 2 2 ...
 $ Gender  : Factor w/ 2 levels "female","male": 1 1 2 1 2 2 1 2 2 2 ...
 $ Status  : Factor w/ 2 levels "high","low": 1 1 1 2 1 2 2 1 2 2 ...
 $ LikeUser: Factor w/ 2 levels "no","yes": 1 1 1 2 1 1 2 1 1 1 ...

Code

head(citdata)

    Age Gender Status LikeUser
1 15-40 female   high       no
2 15-40 female   high       no
3 15-40   male   high       no
4 41-80 female    low      yes
5 41-80   male   high       no
6 41-80   male    low       no

Age	Gender	Status	LikeUser
15-40	female	high	no
15-40	female	high	no
15-40	male	high	no
41-80	female	low	yes
41-80	male	high	no
41-80	male	low	no
41-80	female	low	yes
15-40	male	high	no
41-80	male	low	no
41-80	male	low	no

The data contains 251 observations of discourse like usage, with predictors Age (15–40 vs. 41–80), Gender (Men/Women), and Status (high/low social status).

Code

set.seed(111)
dtree <- tree::tree(LikeUser ~ Age + Gender + Status,
                    data = citdata, split = "gini")
plot(dtree, gp = gpar(fontsize = 8))
text(dtree, pretty = 0, all = FALSE)

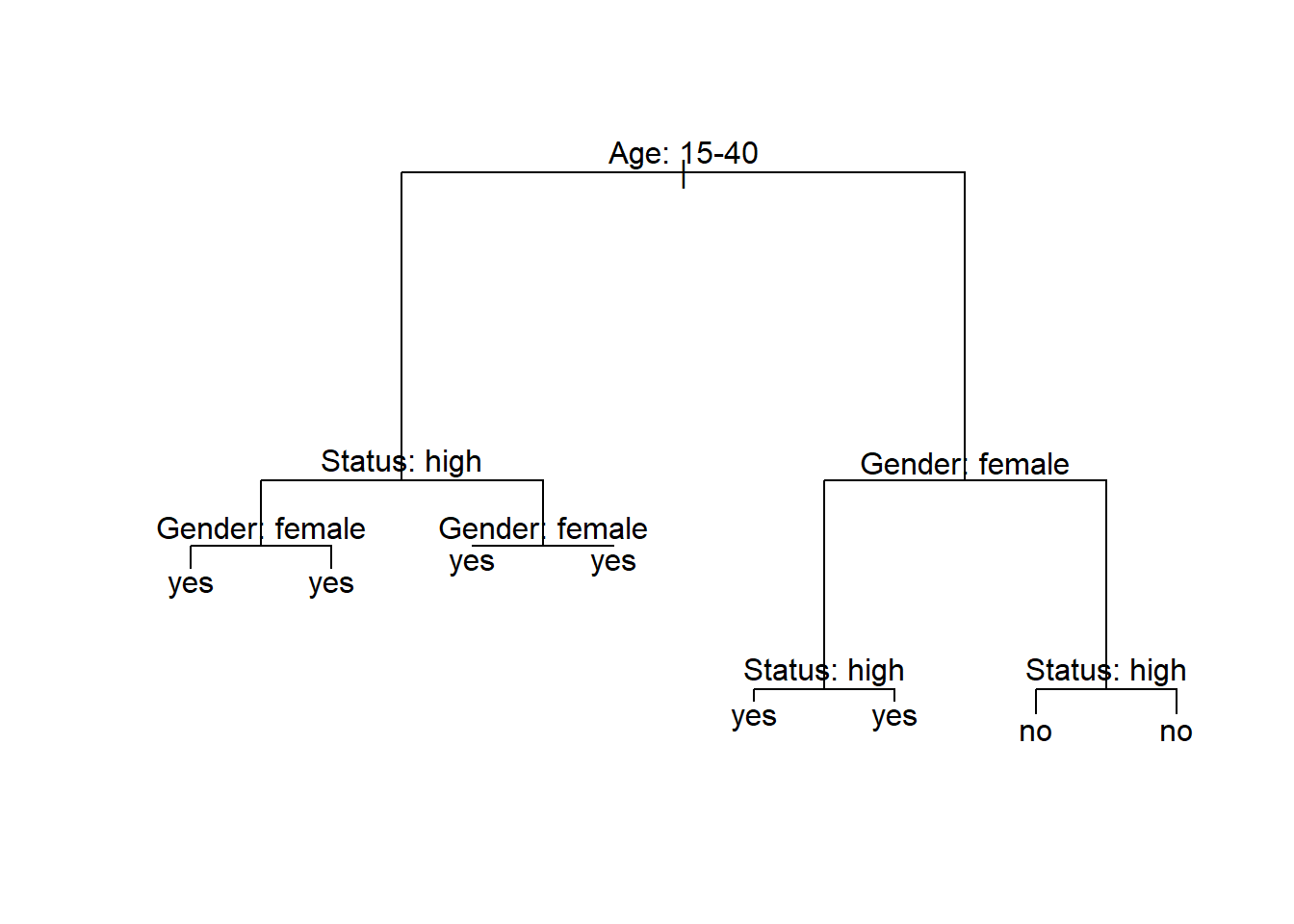

Reading the tree: at the root node, speakers aged 15–40 go left; all others go right. Each branch is true to the left and false to the right. The yes/no labels at the leaves indicate the predicted class.

The Gini Impurity Criterion

The algorithm uses the Gini index to measure how mixed (impure) each potential child node would be after a split. Named after Italian statistician Corrado Gini, it was originally a measure of income inequality — here it measures inequality of class distributions:

\[G_x = 1 - p_1^2 - p_0^2\]

where $p_1$ is the proportion of the positive class (e.g. LikeUser = yes) and $p_0$ the proportion of the negative class in node $x$.

$G = 0$: perfect purity — all observations in the node belong to one class
$G = 0.5$: maximum impurity for a binary outcome — equal class distribution
The algorithm selects the split that minimises the weighted average Gini across the two child nodes

Worked Example: Selecting the Root Node

We tabulate the outcome by each predictor and calculate Gini for each:

Code

# Cross-tabulations for each predictor
table(citdata$LikeUser, citdata$Gender)


      female male
  no      43   75
  yes     91   42

Code

table(citdata$LikeUser, citdata$Age)


      15-40 41-80
  no     34    84
  yes    92    41

Code

table(citdata$LikeUser, citdata$Status)


      high low
  no    33  85
  yes   73  60

Gini for Gender:

\[G_{\text{men}} = 1 - \left(\frac{42}{117}\right)^2 - \left(\frac{75}{117}\right)^2\] \[G_{\text{women}} = 1 - \left(\frac{91}{134}\right)^2 - \left(\frac{43}{134}\right)^2\] \[G_{\text{Gender}} = \frac{117}{251} \times G_{\text{men}} + \frac{134}{251} \times G_{\text{women}}\]

Code

gini_men    <- 1 - (42/(42+75))^2 - (75/(42+75))^2
gini_women  <- 1 - (91/(91+43))^2 - (43/(91+43))^2
gini_gender <- (42+75)/(42+75+91+43) * gini_men +
               (91+43)/(42+75+91+43) * gini_women
cat(sprintf("Gini (men)   = %.4f\nGini (women) = %.4f\nGini (Gender) = %.4f\n",
            gini_men, gini_women, gini_gender))

Gini (men)   = 0.4602
Gini (women) = 0.4358
Gini (Gender) = 0.4472

Gini for Age:

Code

gini_young <- 1 - (92/(92+34))^2 - (34/(92+34))^2
gini_old   <- 1 - (41/(41+84))^2 - (84/(41+84))^2
gini_age   <- (92+34)/(92+34+41+84) * gini_young +
              (41+84)/(92+34+41+84) * gini_old
cat(sprintf("Gini (young) = %.4f\nGini (old)   = %.4f\nGini (Age)   = %.4f\n",
            gini_young, gini_old, gini_age))

Gini (young) = 0.3941
Gini (old)   = 0.4408
Gini (Age)   = 0.4173

Gini for Status:

Code

gini_high   <- 1 - (73/(73+33))^2 - (33/(73+33))^2
gini_low    <- 1 - (60/(60+85))^2 - (85/(60+85))^2
gini_status <- (73+33)/(73+33+60+85) * gini_high +
               (60+85)/(73+33+60+85) * gini_low
cat(sprintf("Gini (high)   = %.4f\nGini (low)    = %.4f\nGini (Status) = %.4f\n",
            gini_high, gini_low, gini_status))

Gini (high)   = 0.4288
Gini (low)    = 0.4851
Gini (Status) = 0.4613

Code

data.frame(
  Predictor   = c("Age", "Gender", "Status"),
  Gini        = round(c(gini_age, gini_gender, gini_status), 4),
  `Root node?` = c("✓ Selected (lowest)", "✗", "✗"),
  check.names = FALSE
) |>
  flextable() |>
  flextable::set_table_properties(width = .6, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::bold(i = 1) |>
  flextable::set_caption("Gini values: Age selected as root (lowest Gini)")

Predictor	Gini	Root node?
Age	0.4173	✓ Selected (lowest)
Gender	0.4472	✗
Status	0.4613	✗

Age has the lowest Gini and becomes the root node.

Visualising the Partial Tree After Root Split

Continuing the Split: Within Young Speakers

With Age as the root, we now find the best split within the 15–40 branch by comparing Gini for the remaining predictors:

Code

young <- dplyr::filter(citdata, Age == "15-40")
cat("Young speakers:", nrow(young), "\n")

Young speakers: 126

Code

table(young$LikeUser, young$Gender)


      female male
  no      17   17
  yes     58   34

Code

table(young$LikeUser, young$Status)


      high low
  no    11  23
  yes   57  35

Code

# Gini for Gender among young speakers
tb_yg <- table(young$LikeUser, young$Gender)
gini_ym <- 1 - (tb_yg[2,2]/sum(tb_yg[,2]))^2 - (tb_yg[1,2]/sum(tb_yg[,2]))^2
gini_yw <- 1 - (tb_yg[2,1]/sum(tb_yg[,1]))^2 - (tb_yg[1,1]/sum(tb_yg[,1]))^2
gini_ygender <- sum(tb_yg[,2])/sum(tb_yg) * gini_ym +
                sum(tb_yg[,1])/sum(tb_yg) * gini_yw

# Gini for Status among young speakers
tb_ys <- table(young$LikeUser, young$Status)
gini_yl <- 1 - (tb_ys[2,2]/sum(tb_ys[,2]))^2 - (tb_ys[1,2]/sum(tb_ys[,2]))^2
gini_yh <- 1 - (tb_ys[2,1]/sum(tb_ys[,1]))^2 - (tb_ys[1,1]/sum(tb_ys[,1]))^2
gini_ystatus <- sum(tb_ys[,2])/sum(tb_ys) * gini_yl +
                sum(tb_ys[,1])/sum(tb_ys) * gini_yh

cat(sprintf("Gini (Gender | young) = %.4f\nGini (Status | young) = %.4f\n",
            gini_ygender, gini_ystatus))

Gini (Gender | young) = 0.3886
Gini (Status | young) = 0.3667

Code

cat("Second split:", ifelse(gini_ystatus < gini_ygender, "Status", "Gender"), "\n")

Second split: Status

Status (Gini ≈ 0.367) beats Gender (Gini ≈ 0.389), so Status is the second split for the left branch. The algorithm continues recursively — calculating Gini for all remaining predictors at each node — until a stopping criterion is met.

Stopping Criteria for Decision Trees

The recursion stops when any of the following conditions is met:

Minimum node size: the node has fewer than minsize observations (default: 10 in tree::tree)
Minimum deviance reduction: further splits would reduce impurity by less than a threshold
Maximum depth: the tree has reached the maximum number of levels
Pure node: all observations in the node belong to the same class (Gini = 0)

Trees grown without constraints tend to overfit. Pruning (removing the least informative splits post-hoc) and the significance-based stopping in CITs both address this.

Splitting Numeric Variables

For a numeric predictor, the algorithm evaluates every possible threshold between consecutive sorted values, choosing the one with the lowest Gini.

Code

# Small worked example
Age_num      <- c(15, 22, 27, 37, 42, 63)
LikeUser_num <- c("yes", "yes", "yes", "no", "yes", "no")
num_df       <- data.frame(Age = Age_num, LikeUser = LikeUser_num) |>
  dplyr::arrange(Age)
num_df

  Age LikeUser
1  15      yes
2  22      yes
3  27      yes
4  37       no
5  42      yes
6  63       no

Code

# Candidate thresholds: midpoints between consecutive sorted values
thresholds <- (Age_num[-length(Age_num)] + Age_num[-1]) / 2
thresholds

[1] 18.5 24.5 32.0 39.5 52.5

Code

# Compute weighted Gini for each candidate threshold
gini_split <- sapply(thresholds, function(t) {
  below <- LikeUser_num[Age_num <= t]
  above <- LikeUser_num[Age_num >  t]
  g <- function(x) {
    if (length(x) == 0) return(0)
    p <- mean(x == "yes"); 1 - p^2 - (1-p)^2
  }
  n <- length(LikeUser_num)
  length(below)/n * g(below) + length(above)/n * g(above)
})

result_df <- data.frame(
  Threshold = thresholds,
  Below     = sapply(thresholds, function(t) sum(Age_num <= t)),
  Above     = sapply(thresholds, function(t) sum(Age_num >  t)),
  Gini      = round(gini_split, 4)
) |>
  dplyr::mutate(Selected = ifelse(Gini == min(Gini), "✓ Best split", ""))

result_df |>
  flextable() |>
  flextable::set_table_properties(width = .65, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::bold(i = which(result_df$Selected != "")) |>
  flextable::set_caption("Gini for each candidate threshold (numeric Age)")

Threshold	Below	Above	Gini	Selected
18.5	1	5	0.4000
24.5	2	4	0.3333
32.0	3	3	0.2222	✓ Best split
39.5	4	2	0.4167
52.5	5	1	0.2667

The threshold at 52.5 years has the lowest Gini and is selected as the split point. For ordinal variables, the same logic applies but thresholds are placed at actual level boundaries rather than midpoints. For multi-level nominal variables, all possible groupings of levels into two sets must be evaluated.

Pruning a Decision Tree

An unpruned tree fits the training data perfectly but generalises poorly. Cost-complexity pruning (the default in tree::tree) uses cross-validation to find the tree size with the best trade-off between fit and complexity:

Code

set.seed(111)
dtree_full <- tree::tree(LikeUser ~ Age + Gender + Status,
                         data = citdata, split = "gini")

# Cross-validate to find optimal tree size
dtree_cv <- tree::cv.tree(dtree_full, FUN = prune.misclass)
dtree_cv

$size
[1] 8 3 2 1

$dev
[1]  72  72  83 118

$k
[1] -Inf    0    7   43

$method
[1] "misclass"

attr(,"class")
[1] "prune"         "tree.sequence"

Code

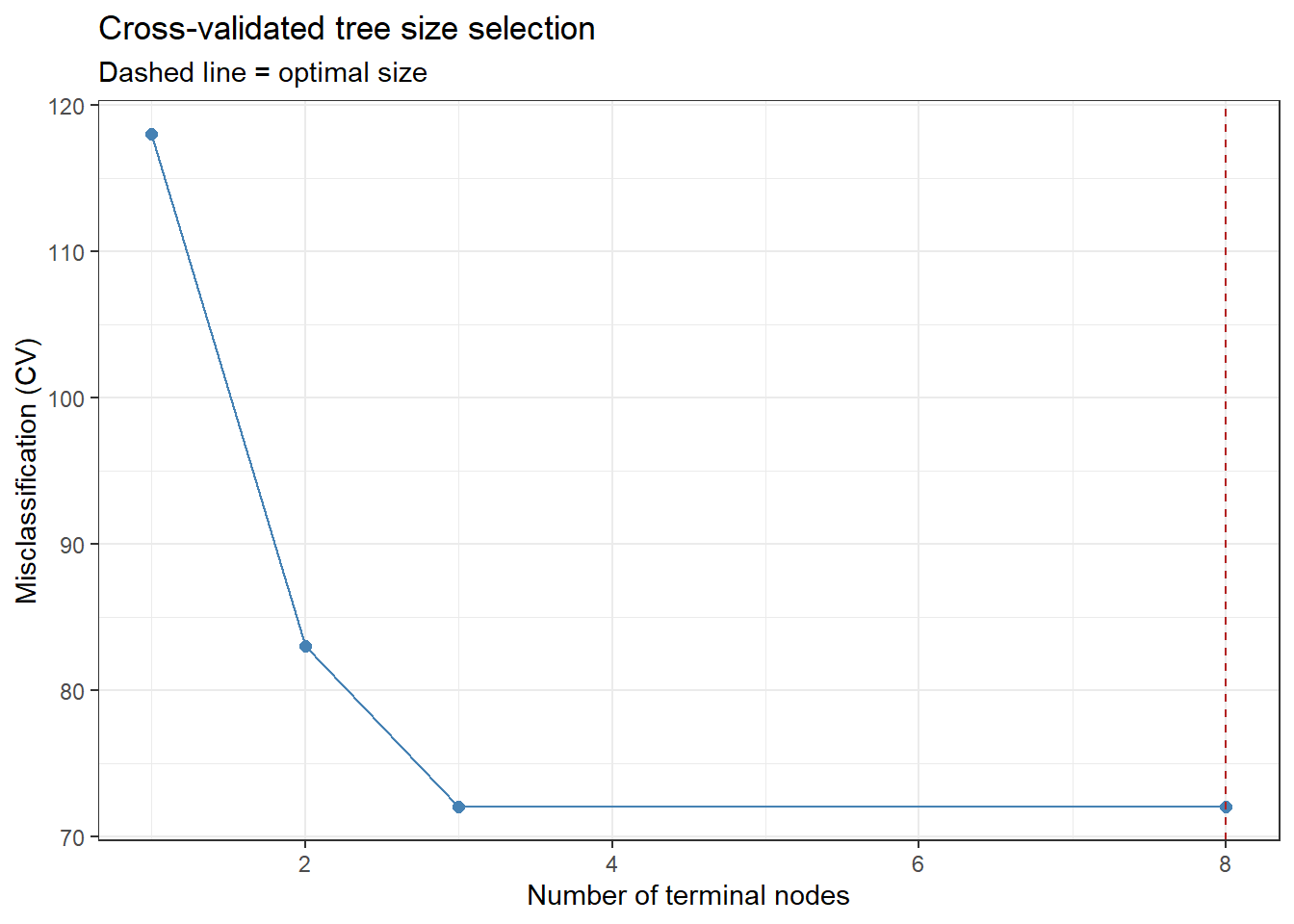

# Plot deviance (misclassification) vs. tree size
data.frame(size = dtree_cv$size, dev = dtree_cv$dev) |>
  ggplot(aes(x = size, y = dev)) +
  geom_line(color = "steelblue") +
  geom_point(color = "steelblue", size = 2) +
  geom_vline(xintercept = dtree_cv$size[which.min(dtree_cv$dev)],
             linetype = "dashed", color = "firebrick") +
  theme_bw() +
  labs(title = "Cross-validated tree size selection",
       subtitle = "Dashed line = optimal size",
       x = "Number of terminal nodes", y = "Misclassification (CV)")

Code

# Prune to optimal size
best_size  <- dtree_cv$size[which.min(dtree_cv$dev)]
dtree_pruned <- tree::prune.misclass(dtree_full, best = best_size)
plot(dtree_pruned, gp = gpar(fontsize = 8))
text(dtree_pruned, pretty = 0, all = FALSE)

Evaluating Decision Tree Accuracy

Code

# Predict on training data (optimistic — same data used for fitting)
dtree_pred <- as.factor(ifelse(predict(dtree_pruned)[, 2] > .5, "yes", "no"))
caret::confusionMatrix(dtree_pred, citdata$LikeUser)

Confusion Matrix and Statistics

          Reference
Prediction  no yes
       no   58   8
       yes  60 125

               Accuracy : 0.729
                 95% CI : (0.67, 0.783)
    No Information Rate : 0.53
    P-Value [Acc > NIR] : 0.0000000000787

                  Kappa : 0.442

 Mcnemar's Test P-Value : 0.0000000006224

            Sensitivity : 0.492
            Specificity : 0.940
         Pos Pred Value : 0.879
         Neg Pred Value : 0.676
             Prevalence : 0.470
         Detection Rate : 0.231
   Detection Prevalence : 0.263
      Balanced Accuracy : 0.716

       'Positive' Class : no

Reading a Confusion Matrix

A confusion matrix compares predicted classifications against observed outcomes:

	Predicted: yes	Predicted: no
Observed: yes	True Positive (TP)	False Negative (FN)
Observed: no	False Positive (FP)	True Negative (TN)

Key statistics reported by confusionMatrix():

Accuracy = (TP + TN) / N — overall proportion correctly classified
No Information Rate (NIR) = proportion of the majority class — accuracy from always predicting the most common outcome
Sensitivity = TP / (TP + FN) — proportion of true positives correctly identified (recall)
Specificity = TN / (TN + FP) — proportion of true negatives correctly identified
Positive Predictive Value (PPV) = TP / (TP + FP) — proportion of positive predictions that are correct (precision)
Kappa — accuracy corrected for chance agreement (0 = no better than chance; 1 = perfect)

Always compare Accuracy against the NIR. A model is only useful if its accuracy is substantially and significantly better than simply predicting the majority class every time.

✎ Check Your Understanding — Question 1

A decision tree is grown on a dataset where 60% of outcomes are “yes”. The tree reports 65% accuracy on the training data. A colleague argues the model is useful because “it correctly classifies most cases.” Is this assessment correct?

Yes — 65% is a reasonable accuracy for linguistic data
No — the No Information Rate is 60% (always predict “yes”), so the tree only improves on the naive baseline by 5 percentage points. Given that the accuracy is measured on the same data used for training (optimistic), the true generalisation performance may be even lower.
Yes — the NIR is irrelevant; only absolute accuracy matters
No — any decision tree with accuracy below 80% is unusable

Answer

b) No — the No Information Rate is 60%, so the improvement over baseline is only 5 percentage points

When 60% of outcomes are “yes”, a naive classifier that always predicts “yes” achieves 60% accuracy. The tree’s 65% on training data represents only a 5-point improvement, and this is the optimistic in-sample estimate. For a rigorous evaluation, the tree should be evaluated on held-out data (train/test split or cross-validation). A 5-point improvement may not be statistically significant (depending on sample size) and is likely not practically meaningful for most research questions.

Conditional Inference Trees

Section Overview

What you will learn: How CITs use significance tests rather than Gini to select splits; how to fit a CIT in R; how to read and interpret every element of the output; how to extract information programmatically; how to produce publication-quality visualisations with ggparty; and how to evaluate and report CIT results

CITs vs. CARTs

Conditional Inference Trees (Hothorn, Hornik, and Zeileis 2006) address a key weakness of CARTs: variable selection bias. In a CART, predictors with more possible split points (numeric variables or factors with many levels) are artificially favoured because more candidate splits give a higher chance of finding a low Gini value by chance — even if the predictor has no real relationship with the outcome.

CITs eliminate this bias through a two-stage procedure at each node:

Is any predictor significantly associated with the outcome? A permutation test (or asymptotic approximation) is computed for each predictor. If no predictor reaches significance at the chosen threshold (default: α = .05), the node becomes a leaf — no further splitting occurs.
Which predictor splits on? Among significant predictors, the one with the strongest association (smallest p-value after multiplicity correction) is selected. The split point is then determined by optimising the test statistic.

This makes CITs more principled than CARTs: only predictors with genuine statistical evidence of association appear in the tree, and the selection is not biased by the number of possible splits.

CART vs. CIT: When to Use Which

Use a CIT (partykit::ctree) for most linguistic research. It provides unbiased variable selection and only includes predictors supported by statistical evidence.

Use a CART (tree::tree, rpart::rpart) when you need to teach the Gini criterion explicitly, when you want to manually explore pruning, or when your downstream pipeline requires it.

Fitting a Conditional Inference Tree

Code

citdata <- read.delim(here::here("tutorials/tree/data/treedata.txt"),
                      header = TRUE, sep = "\t") |>
  dplyr::mutate_if(is.character, factor)

Code

set.seed(111)
citd_ctree <- partykit::ctree(LikeUser ~ Age + Gender + Status,
                              data = citdata)
# Default plot
plot(citd_ctree, gp = gpar(fontsize = 8))

Interpreting the CIT Output

The CIT plot encodes several layers of information:

Internal node boxes display: - The splitting variable name (e.g. Age) - The p-value of the permutation test used to justify the split. This p-value tells you how confidently the algorithm distinguishes outcome categories at that node — lower is stronger evidence. - The node ID number and sample size (N=…)

Edge labels show the values of the splitting variable that route observations down each branch (e.g. “15–40” vs. “41–80” for Age)

Leaf node bar charts (terminal nodes) show: - The distribution of outcome categories at that node - The height of each bar is the proportion of cases in that class - The number inside or above each bar segment is the count - The taller bar determines the predicted class for observations reaching that node

How to Read a CIT: Step by Step

Start at the root node (top). Note the splitting variable and its p-value.
Follow the branch corresponding to your observation’s value on the splitting variable.
At each subsequent internal node, repeat: follow the branch matching your observation.
When you reach a leaf node, the dominant bar gives the predicted class; the bar heights give the predicted probabilities.
The p-values along the path tell you how reliably each split distinguishes the outcome — p < .001 is very reliable; p close to .05 is marginally reliable.

Extracting CIT Information Programmatically

Rather than reading all information from the plot, we can extract it directly for reporting:

Code

# All node IDs
all_nodes      <- nodeids(citd_ctree)
terminal_nodes <- nodeids(citd_ctree, terminal = TRUE)
internal_nodes <- setdiff(all_nodes, terminal_nodes)

cat("Total nodes:    ", length(all_nodes), "\n")

Total nodes:     7

Code

cat("Internal nodes: ", length(internal_nodes), "\n")

Internal nodes:  3

Code

cat("Leaf nodes:     ", length(terminal_nodes), "\n")

Leaf nodes:      4

Code

# Sample size at each terminal node
node_sizes <- nodeapply(
  citd_ctree,
  ids = terminal_nodes,
  FUN = function(n) length(n$data[[1]])
)
cat("Leaf node sizes:", unlist(node_sizes), "\n")

Leaf node sizes: 0 0 0 0

Code

# p-values at all nodes (NA for terminal nodes)
pvals_raw <- unlist(nodeapply(
  citd_ctree,
  ids = nodeids(citd_ctree),
  FUN = function(n) info_node(n)$p.value
))
pvals_sig <- pvals_raw[!is.na(pvals_raw) & pvals_raw < .05]
pvals_sig

         1.Age       2.Status       5.Gender
0.000000000567 0.006395380900 0.000000426211

Code

# Splitting variables at internal nodes
split_vars <- sapply(internal_nodes, function(id) {
  nd  <- node_party(citd_ctree[[id]])
  vid <- partykit::split_node(nd)$varid
  names(citdata)[vid]
})
cat("Splitting variables:", split_vars, "\n")

Splitting variables: Gender LikeUser Status

Code

# Predicted class and probabilities for each observation
cit_probs  <- predict(citd_ctree, type = "prob")
cit_class  <- predict(citd_ctree, type = "response")

head(data.frame(
  Observed  = citdata$LikeUser,
  Predicted = cit_class,
  Prob_no   = round(cit_probs[, 1], 3),
  Prob_yes  = round(cit_probs[, 2], 3)
), 10)

   Observed Predicted Prob_no Prob_yes
1        no       yes   0.162    0.838
2        no       yes   0.162    0.838
3        no       yes   0.162    0.838
4       yes       yes   0.441    0.559
5        no        no   0.879    0.121
6        no        no   0.879    0.121
7       yes       yes   0.441    0.559
8        no       yes   0.162    0.838
9        no        no   0.879    0.121
10       no        no   0.879    0.121

Adjusting the Significance Threshold

The default significance threshold (α = .05) can be adjusted via ctree_control(). A stricter threshold produces a simpler (more pruned) tree; a more liberal threshold produces a more complex tree:

Code

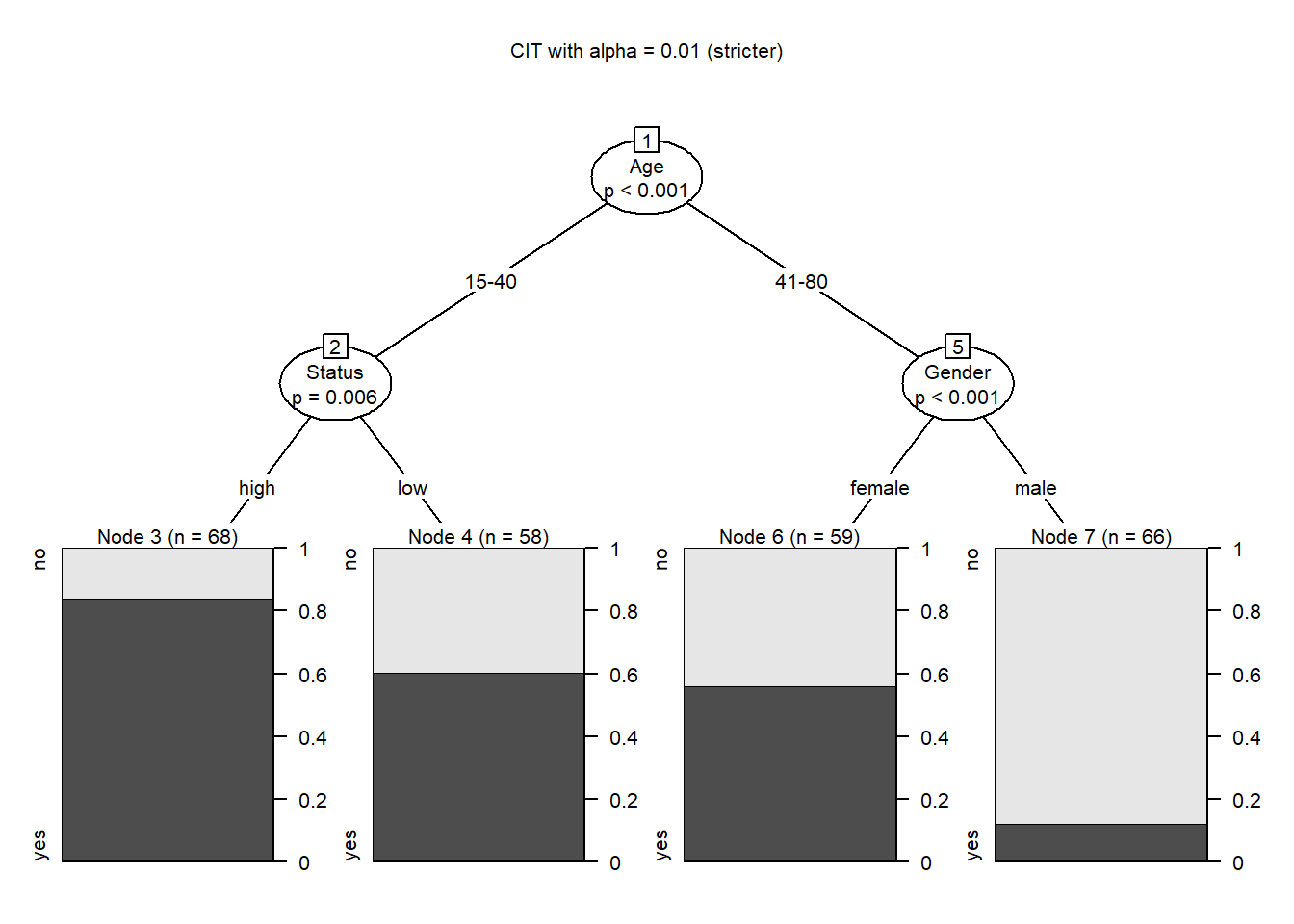

# Strict tree: only very strong associations split
cit_strict <- partykit::ctree(
  LikeUser ~ Age + Gender + Status,
  data    = citdata,
  control = partykit::ctree_control(alpha = 0.01)
)
plot(cit_strict,
     gp    = gpar(fontsize = 8),
     main  = "CIT with alpha = 0.01 (stricter)")

Code

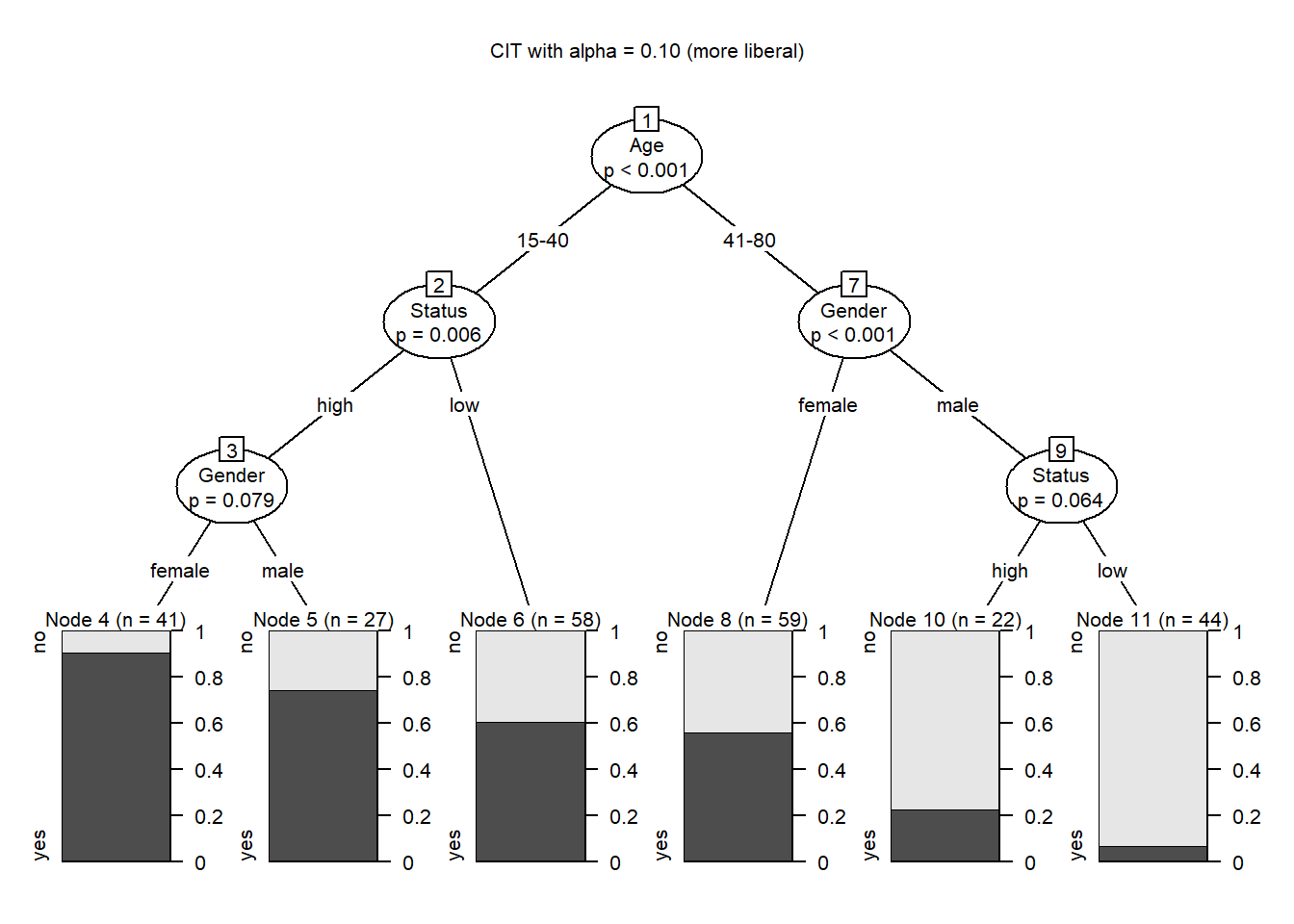

# Liberal tree
cit_liberal <- partykit::ctree(
  LikeUser ~ Age + Gender + Status,
  data    = citdata,
  control = partykit::ctree_control(alpha = 0.10)
)
plot(cit_liberal,
     gp    = gpar(fontsize = 8),
     main  = "CIT with alpha = 0.10 (more liberal)")

Choosing the Significance Threshold

Set the significance threshold before fitting the tree, not after inspecting the result. Post-hoc adjustment of α to produce a “cleaner” or “more interesting” tree is a form of researcher degrees of freedom that inflates Type I error. The default α = .05 is appropriate for most applications; α = .01 is reasonable when you want to be conservative about which predictors enter the tree.

Publication-Quality CIT with `ggparty`

Code

# Re-fit for ggparty (ensure clean object)
set.seed(111)
citd_ctree <- partykit::ctree(LikeUser ~ Age + Gender + Status, data = citdata)

# Extract p-values for node annotation
pvals <- unlist(nodeapply(
  citd_ctree,
  ids = nodeids(citd_ctree),
  FUN = function(n) info_node(n)$p.value
))
pvals <- pvals[pvals < .05]

Code

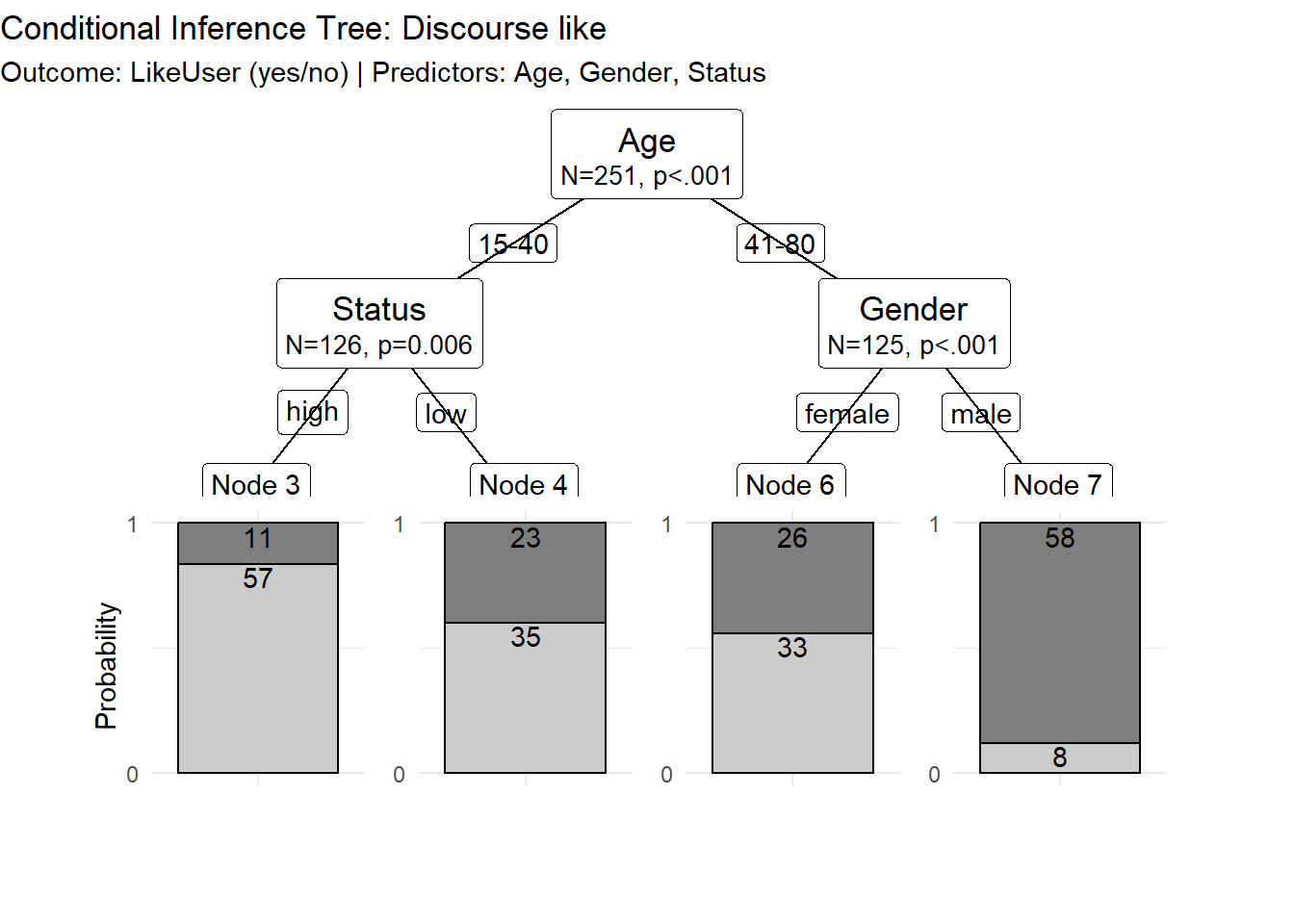

# Version 1: proportional bars (probability scale)
ggparty(citd_ctree) +
  geom_edge() +
  geom_edge_label() +
  geom_node_label(
    line_list = list(
      aes(label = splitvar),
      aes(label = paste0("N=", nodesize, ", p",
            ifelse(pvals < .001, "<.001", paste0("=", round(pvals, 3)))),
          size = 10)
    ),
    line_gpar = list(list(size = 13), list(size = 10)),
    ids = "inner"
  ) +
  geom_node_label(
    aes(label = paste0("Node ", id, "\nN=", nodesize)),
    ids = "terminal", nudge_y = -0.01, nudge_x = 0.01
  ) +
  geom_node_plot(
    gglist = list(
      geom_bar(aes(x = "", fill = LikeUser),
               position = position_fill(), color = "black"),
      theme_minimal(),
      scale_fill_manual(values = c("gray50", "gray80"), guide = "none"),
      scale_y_continuous(breaks = c(0, 1)),
      xlab(""), ylab("Probability"),
      geom_text(aes(x = "", group = LikeUser, label = after_stat(count)),
                stat = "count", position = position_fill(), vjust = 1.1)
    ),
    shared_axis_labels = TRUE
  ) +
  labs(title = "Conditional Inference Tree: Discourse like",
       subtitle = "Outcome: LikeUser (yes/no) | Predictors: Age, Gender, Status")

Code

# Version 2: frequency bars (count scale) — useful when node sizes differ greatly
ggparty(citd_ctree) +
  geom_edge() +
  geom_edge_label() +
  geom_node_label(
    line_list = list(
      aes(label = splitvar),
      aes(label = paste0("N=", nodesize, ", p",
            ifelse(pvals < .001, "<.001", paste0("=", round(pvals, 3)))),
          size = 10)
    ),
    line_gpar = list(list(size = 13), list(size = 10)),
    ids = "inner"
  ) +
  geom_node_label(
    aes(label = paste0("Node ", id, "\nN=", nodesize)),
    ids = "terminal", nudge_y = 0.01, nudge_x = 0.01
  ) +
  geom_node_plot(
    gglist = list(
      geom_bar(aes(x = "", fill = LikeUser),
               position = position_dodge(), color = "black"),
      theme_minimal(),
      theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank()),
      scale_fill_manual(values = c("gray50", "gray80"), guide = "none"),
      scale_y_continuous(breaks = seq(0, 100, 20), limits = c(0, 100)),
      xlab(""), ylab("Frequency"),
      geom_text(aes(x = "", group = LikeUser, label = after_stat(count)),
                stat = "count", position = position_dodge(0.9), vjust = -0.7)
    ),
    shared_axis_labels = TRUE
  ) +
  labs(title = "Conditional Inference Tree: Discourse like (frequencies)")

Evaluating CIT Accuracy

Code

cit_pred <- predict(citd_ctree, type = "response")
caret::confusionMatrix(cit_pred, citdata$LikeUser)

Confusion Matrix and Statistics

          Reference
Prediction  no yes
       no   58   8
       yes  60 125

               Accuracy : 0.729
                 95% CI : (0.67, 0.783)
    No Information Rate : 0.53
    P-Value [Acc > NIR] : 0.0000000000787

                  Kappa : 0.442

 Mcnemar's Test P-Value : 0.0000000006224

            Sensitivity : 0.492
            Specificity : 0.940
         Pos Pred Value : 0.879
         Neg Pred Value : 0.676
             Prevalence : 0.470
         Detection Rate : 0.231
   Detection Prevalence : 0.263
      Balanced Accuracy : 0.716

       'Positive' Class : no

Code

# C-statistic from predicted probabilities
cit_prob_yes <- predict(citd_ctree, type = "prob")[, 2]
Hmisc::somers2(cit_prob_yes, as.numeric(citdata$LikeUser) - 1)

       C      Dxy        n  Missing
  0.7857   0.5713 251.0000   0.0000

Limitations of Single Trees

CITs are interpretable and principled, but they share a fundamental limitation: overfitting. A single tree that fits the training data well tends to perform worse on new data because it has learned noise in addition to the true signal. Two mechanisms drive overfitting in CITs:

Greedy splitting: The algorithm makes locally optimal splits without considering the global tree structure. A different split early on might produce a much better overall tree.
Sample dependency: Small changes in the training data — removing or adding a few observations — can produce substantially different trees.

The standard remedy is ensemble methods — building and aggregating many diverse trees, which is the foundation of Random Forests.

✎ Check Your Understanding — Question 2

A CIT produces a tree with three internal nodes and four leaf nodes. The p-values at the three nodes are .032, .007, and .041. A colleague argues that the predictor at the node with p = .041 should be removed because it barely reaches significance. Is this advice correct?

Yes — predictors with p close to .05 should always be excluded to be conservative
No — the CIT algorithm already uses the significance threshold as its stopping criterion. A p of .041 < .05 means the split was statistically justified at the pre-specified α. Post-hoc exclusion based on inspecting the fitted tree is a researcher-degrees-of-freedom problem. If a stricter threshold is desired, it must be set before fitting via ctree_control(alpha = 0.01).
Yes — p-values at CIT nodes reflect Gini impurity, so lower is always better
No — p-values above .05 are never reported in CITs anyway

Answer

b) No — the threshold must be set before fitting, not adjusted after inspecting the tree

The CIT only creates a split if the association reaches the pre-specified α. p = .041 < .05 means the split is justified under the default criterion. Removing it post-hoc inflates Type I error (because you are implicitly re-fitting with a stricter threshold selected based on the data). If you want conservative splits, set alpha = 0.01 before running ctree(). Option (c) is wrong: CIT uses significance tests, not Gini — this is the key difference from CART.

Random Forests

Section Overview

What you will learn: How Random Forests extend CITs through bootstrapping and random variable selection; how to fit, tune, and evaluate a Random Forest with both party::cforest() and randomForest::randomForest(); how to extract and visualise variable importance (conditional and standard); how to interpret partial dependence plots for individual predictors and two-way interactions; and how to evaluate model performance using OOB error, C-statistic, confusion matrices, and train/test splitting

How Random Forests Work

A Random Forest (Breiman 2001a) addresses the overfitting problem of single trees by building an ensemble of many diverse trees and aggregating their predictions. Two mechanisms ensure the trees are diverse enough to benefit from aggregation:

Bootstrapping

For each tree, a new training set is drawn by sampling with replacement from the original data. On average, each bootstrap sample contains about 63.2% of the original observations (some repeated) and leaves out ~36.8%. The excluded observations are called Out-Of-Bag (OOB) data.

The OOB sample provides a free built-in validation set: after each tree is built, it is immediately applied to the OOB data it was not trained on. The OOB error rate is the average prediction error across all trees on their respective OOB samples — a reliable, nearly unbiased estimate of generalisation error that does not require a separate test set.

Random Variable Selection

At each node in each tree, only a random subset of predictors (typically $\sqrt{p}$ for classification, where $p$ = total predictors) is considered as candidates. This prevents any single strong predictor from dominating every tree, forces diversity, and makes the ensemble more robust to individual noisy predictors.

Prediction by Majority Vote

To classify a new observation, it is passed through all trees. Each tree casts a vote for a class. The majority vote across all trees determines the final predicted class. Predicted probabilities are the proportion of trees voting for each class. Because errors in individual trees tend to cancel out, the ensemble is substantially more accurate and robust than any single tree.

Why Forests Beat Single Trees: Bias–Variance Trade-off

A single tree has low bias (it can fit complex patterns) but high variance (it is sensitive to which observations happen to be in the training sample). Aggregating many diverse trees reduces variance substantially while maintaining low bias — this is the bias–variance trade-off in action. The diversity comes from two sources: (1) different bootstrap samples; (2) random variable selection at each node.

Random Forests with `party::cforest()`

The cforest() function implements a conditional inference forest — an ensemble of CITs. It is the preferred choice for linguistic applications because it inherits the CIT’s unbiased variable selection.

Code

# Load speech-unit final like data (Irish English pragmatic marker)
rfdata <- read.delim(here::here("tutorials/tree/data/mblrdata.txt"),
                     header = TRUE, sep = "\t") |>
  dplyr::mutate_if(is.character, factor) |>
  dplyr::select(-ID)

# Inspect
str(rfdata)

'data.frame':   2000 obs. of  5 variables:
 $ Gender          : Factor w/ 2 levels "Men","Women": 2 2 2 2 2 1 2 2 2 1 ...
 $ Age             : Factor w/ 2 levels "Old","Young": 2 2 2 2 1 2 2 2 2 1 ...
 $ ConversationType: Factor w/ 2 levels "MixedGender",..: 1 1 2 1 2 1 1 2 2 1 ...
 $ Priming         : Factor w/ 2 levels "NoPrime","Prime": 1 1 1 1 2 2 1 1 1 1 ...
 $ SUFlike         : int  0 0 0 0 0 1 1 0 0 1 ...

Gender	Age	ConversationType	Priming	SUFlike
Women	Young	MixedGender	NoPrime	0
Women	Young	MixedGender	NoPrime	0
Women	Young	SameGender	NoPrime	0
Women	Young	MixedGender	NoPrime	0
Women	Old	SameGender	Prime	0
Men	Young	MixedGender	Prime	1
Women	Young	MixedGender	NoPrime	1
Women	Young	SameGender	NoPrime	0
Women	Young	SameGender	NoPrime	0
Men	Old	MixedGender	NoPrime	1

The outcome variable is SUFlike — speech-unit final pragmatic like in Irish English (e.g. A wee girl of her age, like). Predictors are Age, Gender, ConversationType, and an implicit priming variable.

Code

# Check for missing values
cat("Complete cases:", nrow(na.omit(rfdata)), "of", nrow(rfdata), "\n")

Complete cases: 2000 of 2000

Code

set.seed(2019120204)
rfmodel1 <- party::cforest(
  SUFlike ~ .,
  data     = rfdata,
  controls = party::cforest_unbiased(ntree = 500, mtry = 3)
)

# Evaluate model fit
rfpred1 <- unlist(party::treeresponse(rfmodel1))
Hmisc::somers2(rfpred1, as.numeric(rfdata$SUFlike))

        C       Dxy         n   Missing
   0.7112    0.4224 2000.0000    0.0000

Conditional Variable Importance from `cforest`

Code

# Conditional importance (adjusts for predictor correlations)
varimp_cond <- party::varimp(rfmodel1, conditional = TRUE)
varimp_cond

          Gender              Age ConversationType          Priming
       0.0038166        0.0004912        0.0027682        0.0227630

Code

# Standard (non-conditional) importance
varimp_std <- party::varimp(rfmodel1, conditional = FALSE)
varimp_std

          Gender              Age ConversationType          Priming
       0.0042324        0.0005131        0.0036941        0.0243355

Code

# Side-by-side comparison
data.frame(
  Variable    = names(varimp_cond),
  Conditional = round(varimp_cond, 5),
  Standard    = round(varimp_std[names(varimp_cond)], 5)
) |>
  dplyr::arrange(desc(Conditional)) |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Conditional vs. standard variable importance (cforest)")

Variable	Conditional	Standard
Priming	0.02276	0.02434
Gender	0.00382	0.00423
ConversationType	0.00277	0.00369
Age	0.00049	0.00051

Code

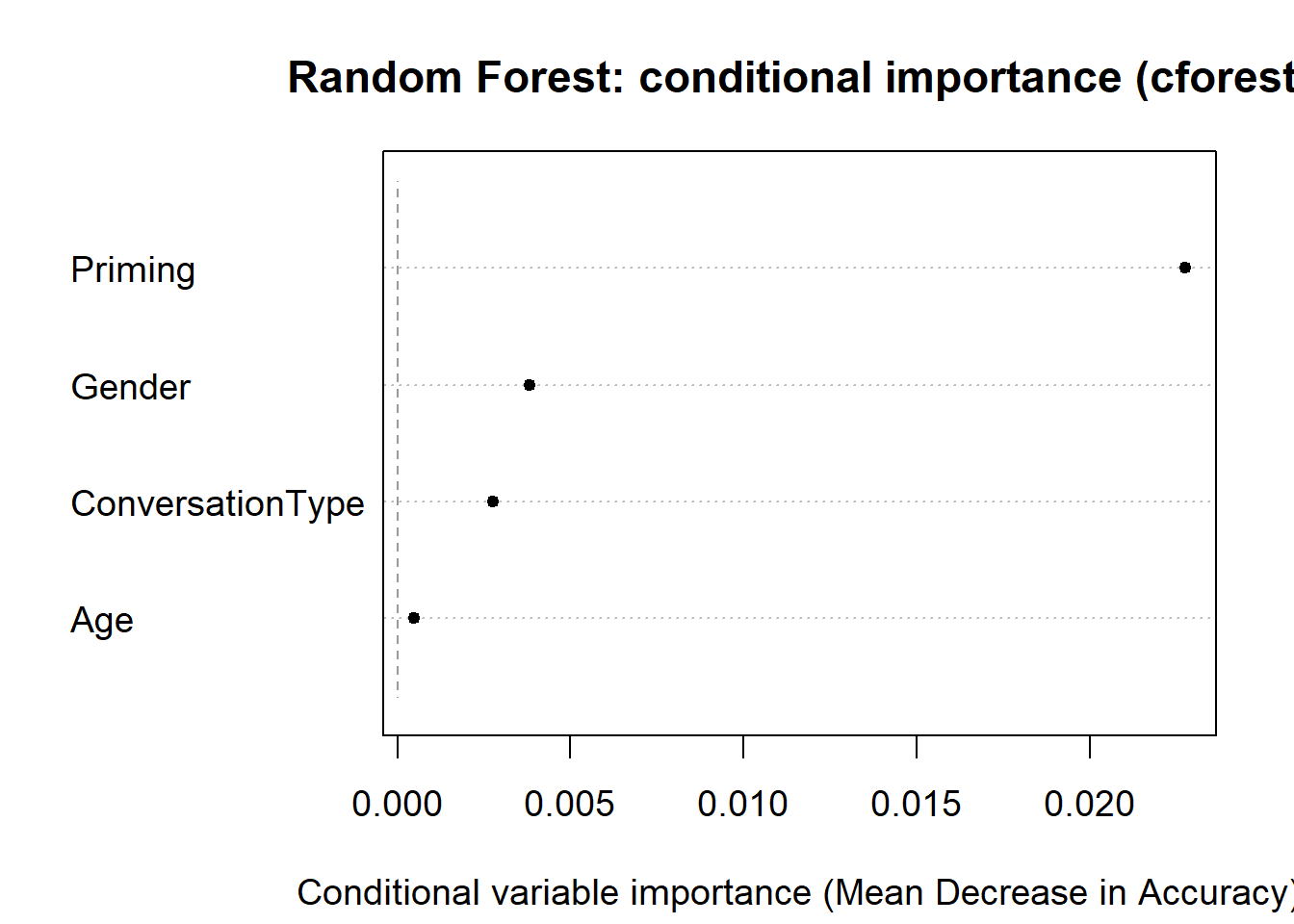

# Dotplot of conditional importance
dotchart(sort(varimp_cond), pch = 20, cex = 1.2,
         xlab = "Conditional variable importance (Mean Decrease in Accuracy)",
         main = "Random Forest: conditional importance (cforest)")
abline(v = 0, lty = 2, col = "grey60")

Conditional vs. Standard Variable Importance

Standard importance (Mean Decrease in Accuracy) permutes each predictor’s values completely randomly. This can artificially inflate importance for predictors that are correlated with genuinely important ones.

Conditional importance (conditional = TRUE) permutes each predictor only within groups of similar observations (defined by the other predictors), thereby adjusting for correlations. This is more reliable when predictors are correlated — which is common in sociolinguistic data (e.g. Age and Register often correlate).

Rule of thumb: use conditional = TRUE in published work; use conditional = FALSE only for exploratory speed.

Random Forests with `randomForest::randomForest()`

Code

set.seed(2019120205)
# Ensure outcome is a factor (required for classification forest)
rfdata$SUFlike <- as.factor(rfdata$SUFlike)

set.seed(2019120205)
rfmodel2 <- randomForest::randomForest(
  SUFlike ~ .,
  data        = rfdata,
  mtry        = 2,
  ntree       = 500,
  proximity   = TRUE,
  keep.forest = TRUE
)
# inspect
rfmodel2


Call:
 randomForest(formula = SUFlike ~ ., data = rfdata, mtry = 2,      ntree = 500, proximity = TRUE, keep.forest = TRUE)
               Type of random forest: classification
                     Number of trees: 500
No. of variables tried at each split: 2

        OOB estimate of  error rate: 17.95%
Confusion matrix:
     0  1 class.error
0 1613 43     0.02597
1  316 28     0.91860

The printed output reports: - OOB estimate of error rate: the out-of-bag misclassification rate — the key model-fit indicator - Confusion matrix: in-bag performance across outcome classes - Class error: per-class misclassification rates

Code

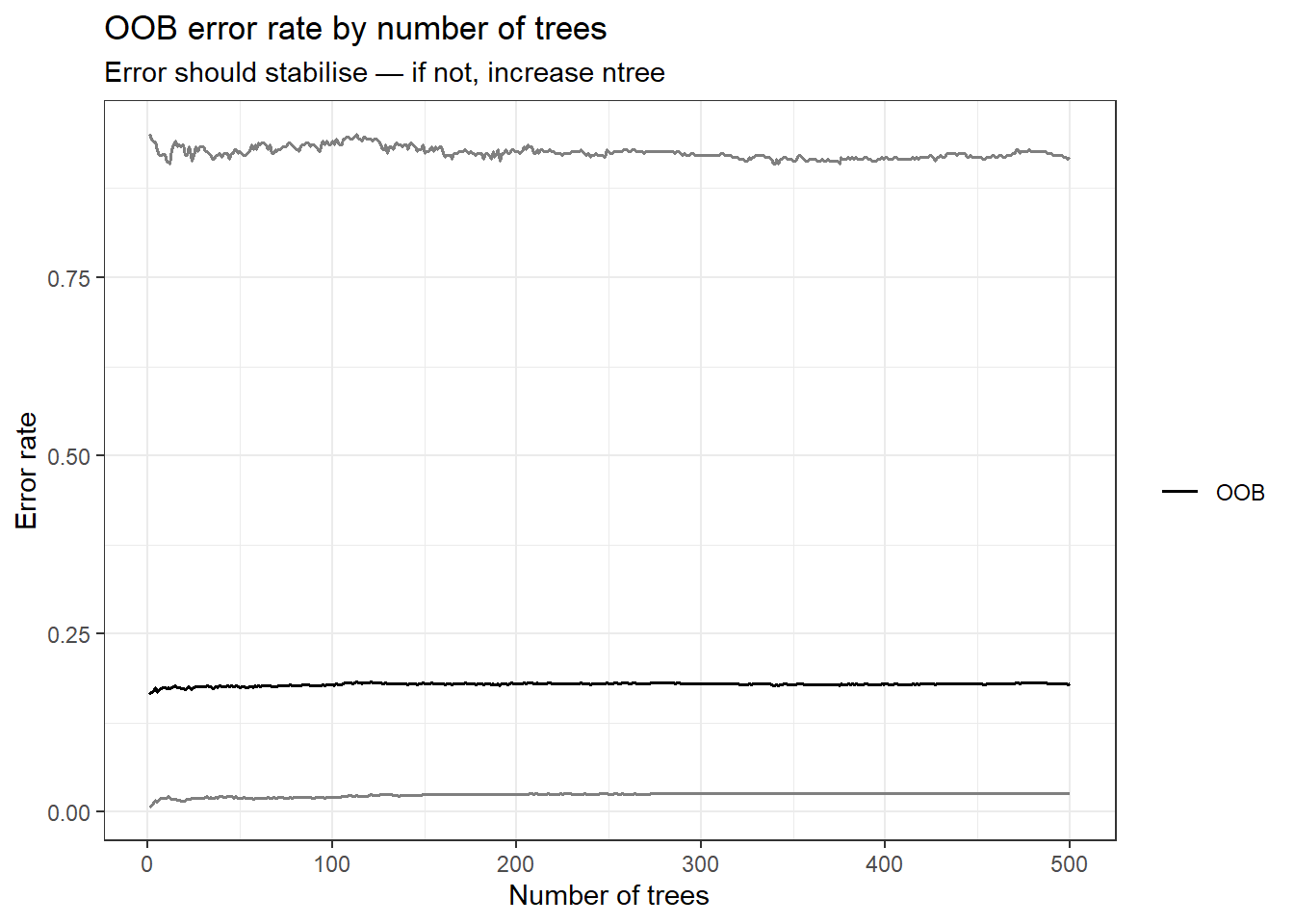

# Plot OOB error rate as a function of number of trees
lvls <- levels(rfdata$SUFlike)   # e.g. c("no", "yes")
oob_df <- data.frame(
  ntree = seq_len(nrow(rfmodel2$err.rate)),
  OOB   = rfmodel2$err.rate[, "OOB"],
  neg   = rfmodel2$err.rate[, lvls[1]],
  pos   = rfmodel2$err.rate[, lvls[2]]
) |>
  tidyr::pivot_longer(-ntree, names_to = "type", values_to = "error")

ggplot(oob_df, aes(x = ntree, y = error, color = type)) +
  geom_line(linewidth = 0.7) +
  theme_bw() +
  scale_color_manual(values = c("OOB" = "black", "yes" = "steelblue", "no" = "firebrick")) +
  labs(title = "OOB error rate by number of trees",
       subtitle = "Error should stabilise — if not, increase ntree",
       x = "Number of trees", y = "Error rate", color = "")

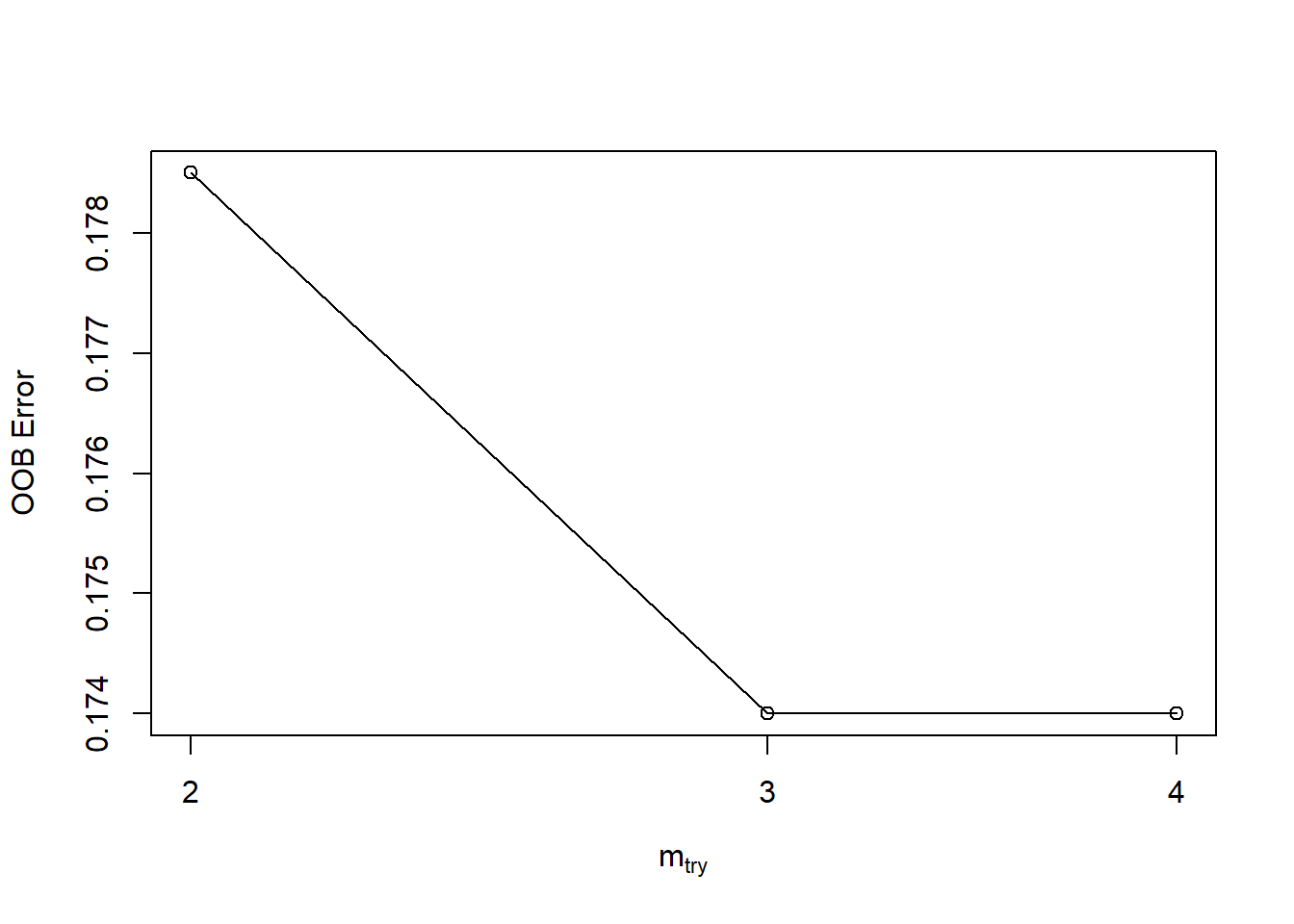

Tuning `mtry`

Code

# tuneRF searches for optimal mtry
set.seed(2026)
tuned <- randomForest::tuneRF(
  x        = rfdata |> dplyr::select(-SUFlike),
  y        = rfdata$SUFlike,
  stepFactor = 1.5,
  improve    = 0.01,
  ntreeTry   = 200,
  trace      = FALSE,
  plot       = TRUE
)

0.02521 0.01
0 0.01

Code

cat("Optimal mtry:", tuned[which.min(tuned[, 2]), 1], "\n")

Optimal mtry: 3

Code

# Refit with optimal parameters
set.seed(2019120206)
rfmodel3 <- randomForest::randomForest(
  SUFlike ~ .,
  data       = rfdata,
  ntree      = 500,
  mtry       = tuned[which.min(tuned[, 2]), 1],
  proximity  = TRUE,
  importance = TRUE
)
rfmodel3


Call:
 randomForest(formula = SUFlike ~ ., data = rfdata, ntree = 500,      mtry = tuned[which.min(tuned[, 2]), 1], proximity = TRUE,      importance = TRUE)
               Type of random forest: classification
                     Number of trees: 500
No. of variables tried at each split: 3

        OOB estimate of  error rate: 17.75%
Confusion matrix:
     0  1 class.error
0 1613 43     0.02597
1  312 32     0.90698

Evaluating `randomForest` Performance

Code

rfdata$rf_pred <- predict(rfmodel3, rfdata, type = "class")
caret::confusionMatrix(as.factor(rfdata$rf_pred), as.factor(rfdata$SUFlike))

Confusion Matrix and Statistics

          Reference
Prediction    0    1
         0 1613  288
         1   43   56

               Accuracy : 0.835
                 95% CI : (0.817, 0.851)
    No Information Rate : 0.828
    P-Value [Acc > NIR] : 0.23

                  Kappa : 0.191

 Mcnemar's Test P-Value : <0.0000000000000002

            Sensitivity : 0.974
            Specificity : 0.163
         Pos Pred Value : 0.849
         Neg Pred Value : 0.566
             Prevalence : 0.828
         Detection Rate : 0.806
   Detection Prevalence : 0.951
      Balanced Accuracy : 0.568

       'Positive' Class : 0

Code

# C-statistic from predicted probabilities
rf_probs <- predict(rfmodel3, rfdata, type = "prob")[, 2]
Hmisc::somers2(rfpred1, as.numeric(rfdata$SUFlike) - 1)

        C       Dxy         n   Missing
   0.7112    0.4224 2000.0000    0.0000

Variable Importance Visualisation

Code

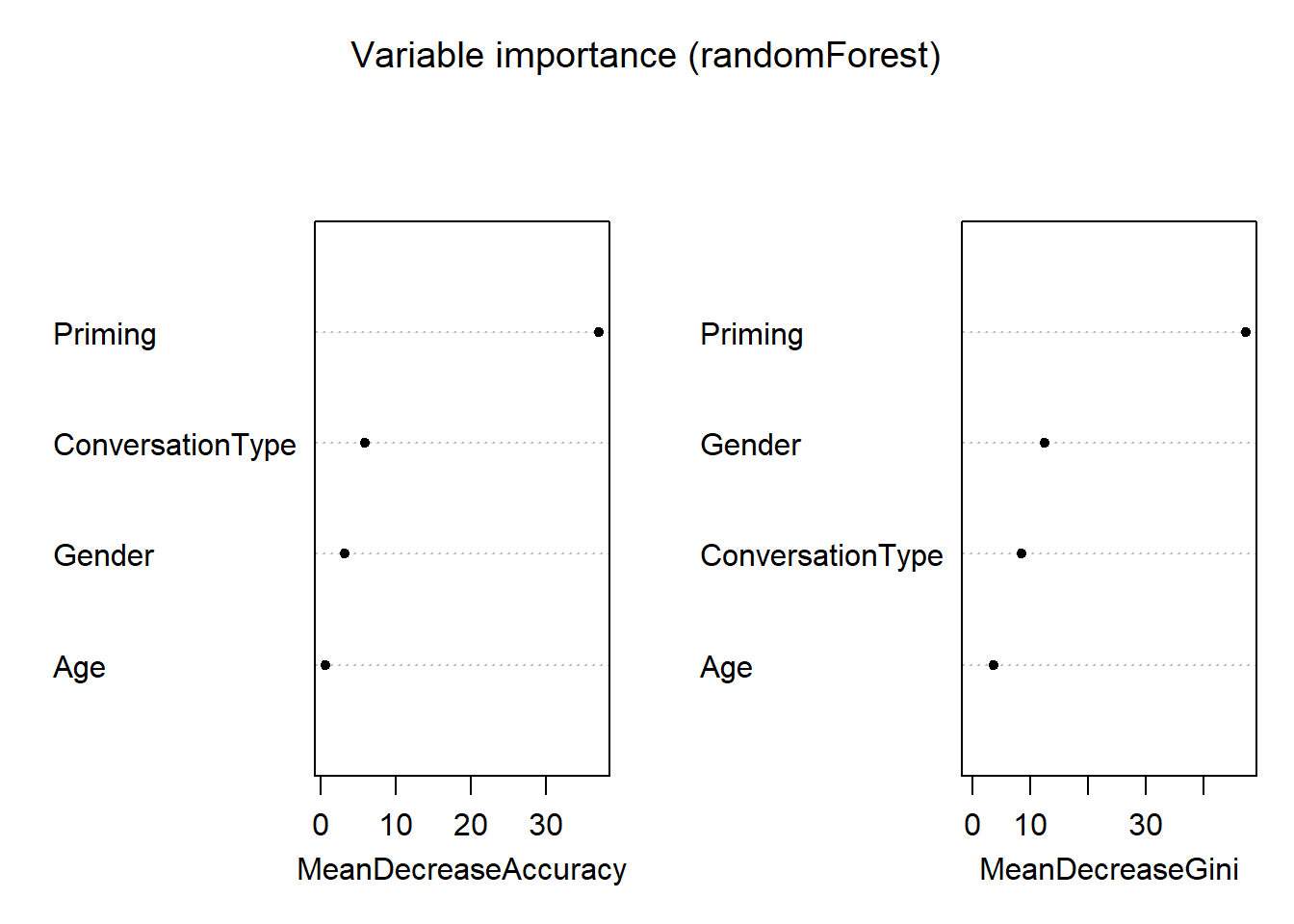

# Base R variable importance plot (two metrics side by side)
randomForest::varImpPlot(rfmodel3, main = "Variable importance (randomForest)", pch = 20)

Code

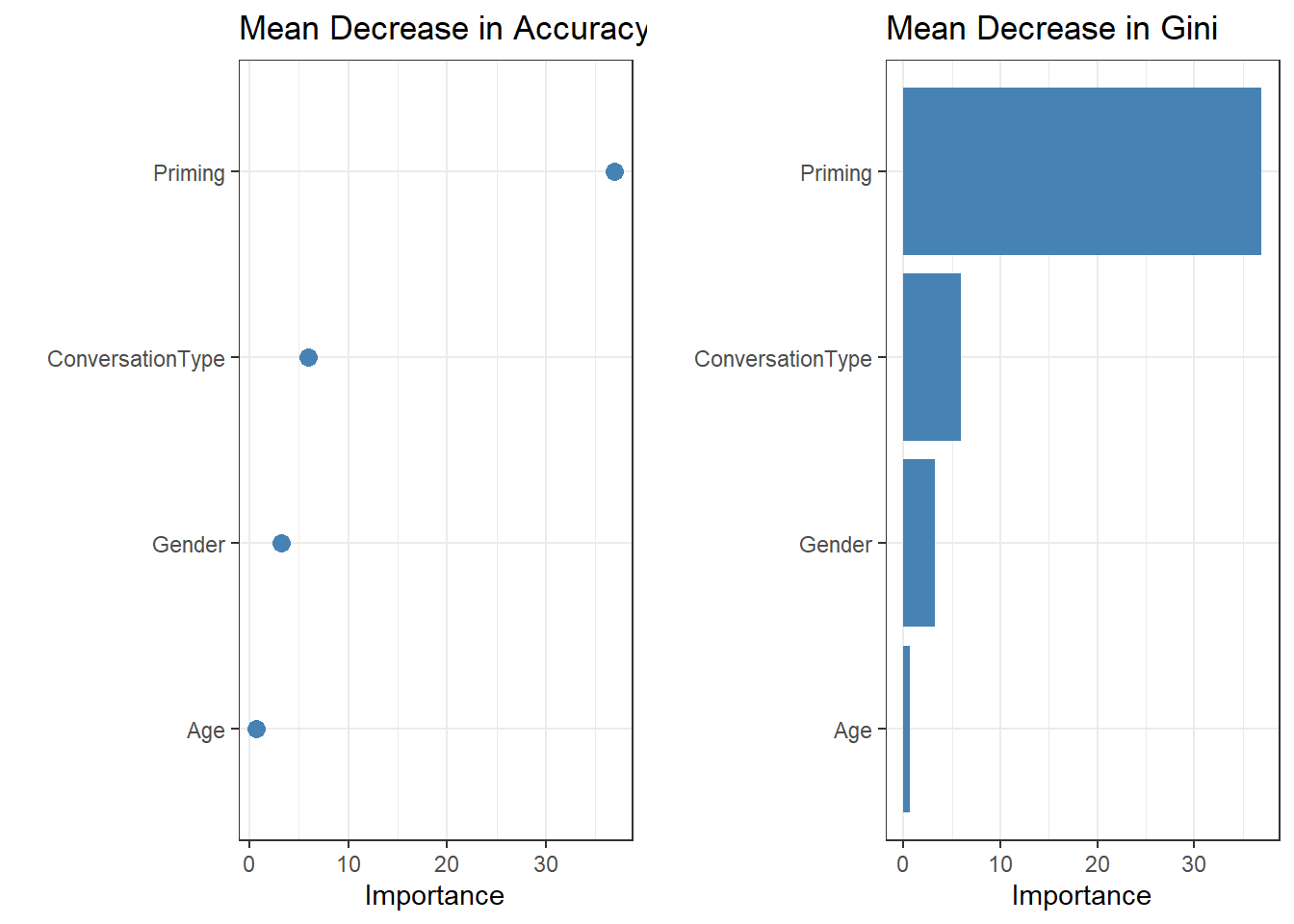

# ggplot2 point plot
p1 <- vip::vip(rfmodel3, geom = "point",
               aesthetics = list(color = "steelblue", size = 3)) +
  theme_bw() +
  labs(title = "Mean Decrease in Accuracy")

# ggplot2 bar chart
p2 <- vip::vip(rfmodel3, geom = "col",
               aesthetics = list(fill = "steelblue")) +
  theme_bw() +
  labs(title = "Mean Decrease in Gini")

gridExtra::grid.arrange(p1, p2, ncol = 2)

Variable Importance Does Not Indicate Direction

A high importance value tells you that permuting the variable reduces prediction accuracy — i.e., that the variable matters. It says nothing about whether higher values of the predictor increase or decrease the probability of the outcome, nor about whether the effect is a main effect or interaction. For direction and magnitude, you need a regression model.

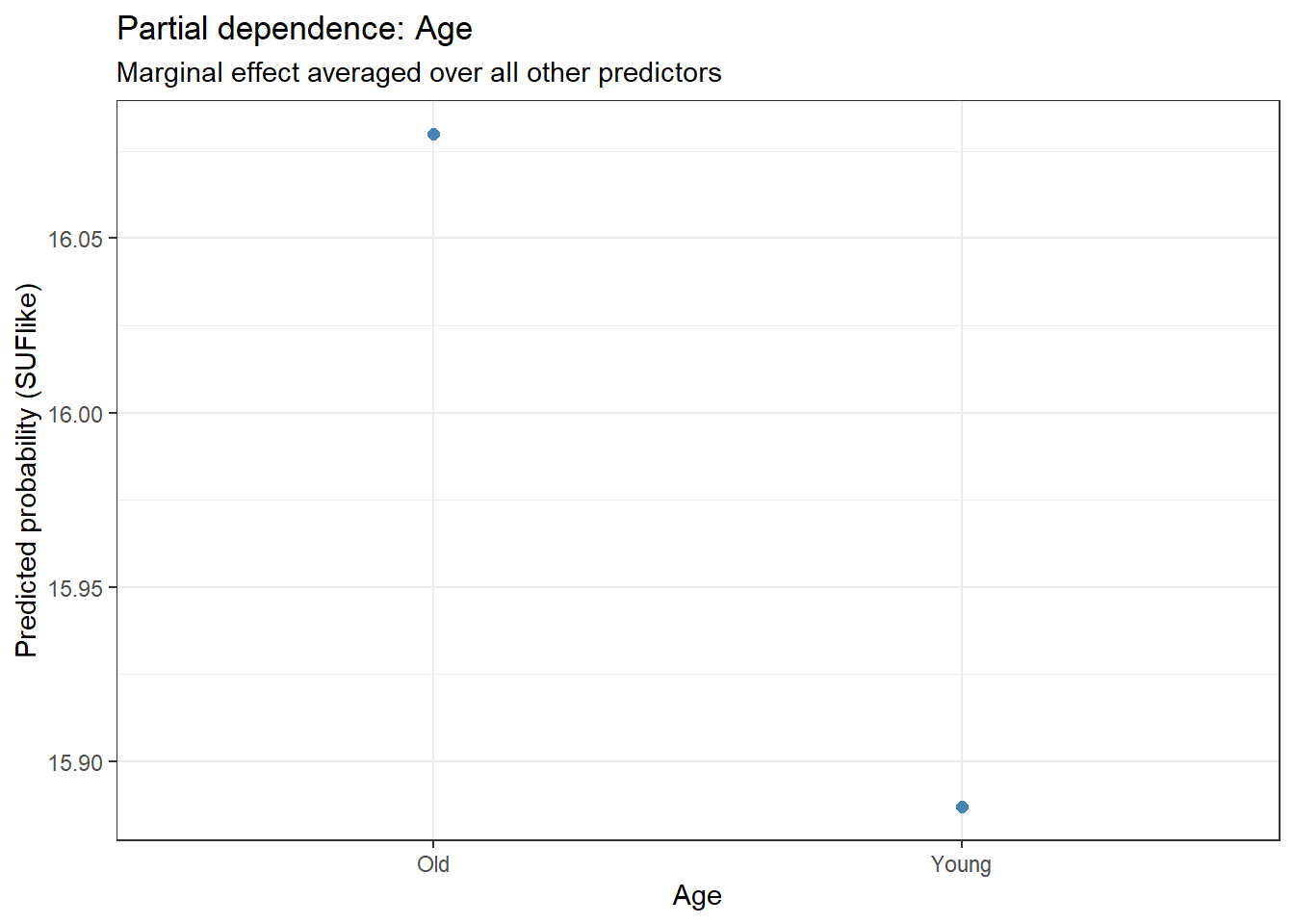

Partial Dependence Plots

Partial dependence plots (PDPs) display the marginal effect of a single predictor after averaging over all other predictors in the model. They complement variable importance by showing how a predictor relates to the predicted outcome.

Code

# PDP for Age
pdp::partial(rfmodel3, pred.var = "Age") |>
  ggplot(aes(x = Age, y = yhat)) +
  geom_line(color = "steelblue", linewidth = 1) +
  geom_point(color = "steelblue", size = 2) +
  theme_bw() +
  labs(title = "Partial dependence: Age",
       subtitle = "Marginal effect averaged over all other predictors",
       x = "Age", y = "Predicted probability (SUFlike)")

Code

# PDP for Gender
pdp::partial(rfmodel3, pred.var = "Gender") |>
  ggplot(aes(x = Gender, y = yhat)) +
  geom_col(fill = "steelblue", width = 0.5) +
  theme_bw() +
  labs(title = "Partial dependence: Gender",
       x = "Gender", y = "Predicted probability (SUFlike)")

Code

# PDP for ConversationType
pdp::partial(rfmodel3, pred.var = "ConversationType") |>
  ggplot(aes(x = ConversationType, y = yhat)) +
  geom_col(fill = "steelblue", width = 0.5) +
  theme_bw() +
  labs(title = "Partial dependence: ConversationType",
       x = "Conversation type", y = "Predicted probability (SUFlike)")

Two-Way Interaction PDPs

When two predictors interact, their joint PDP reveals the pattern:

Code

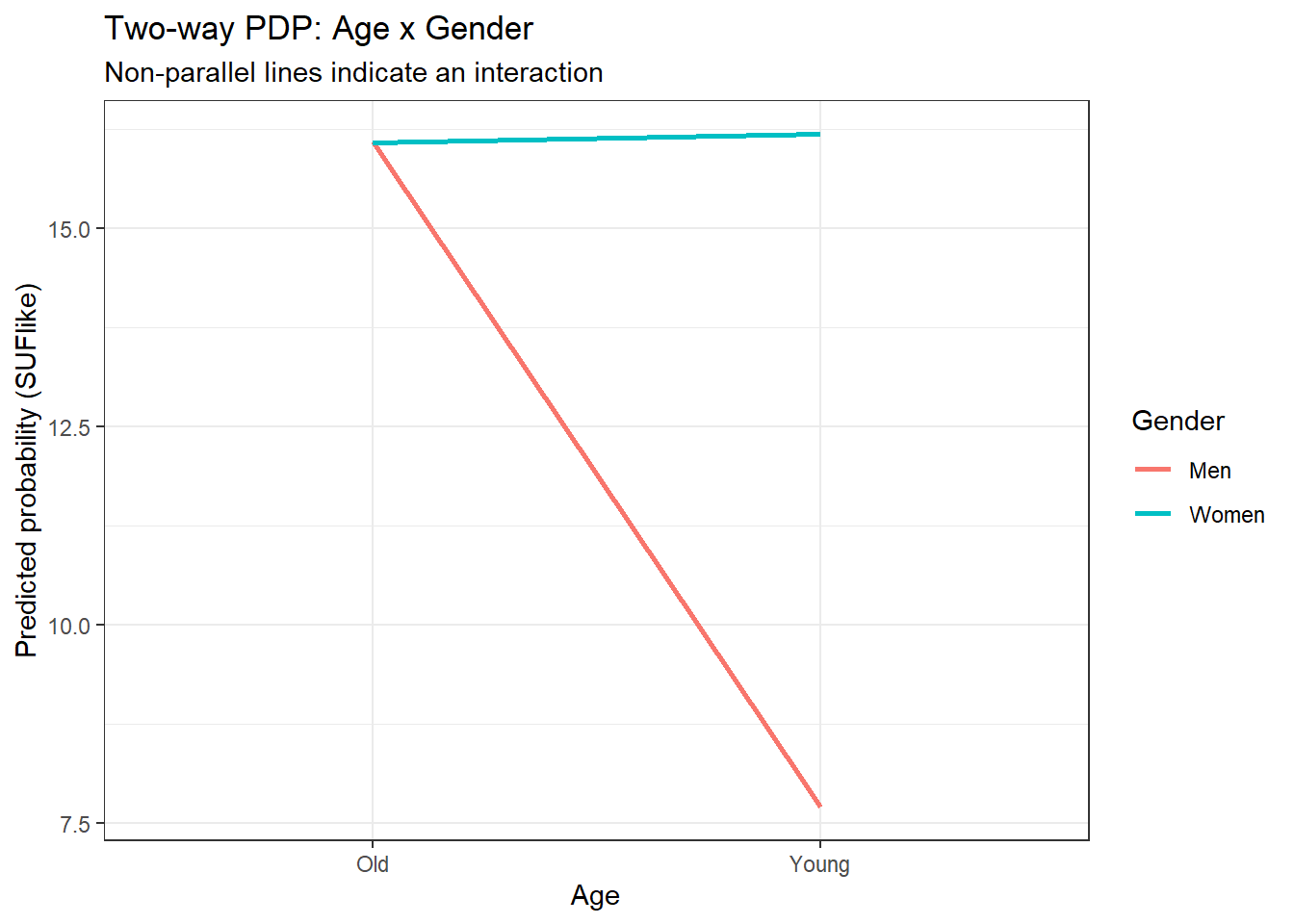

# Age x Gender
pdp::partial(rfmodel3, pred.var = c("Age", "Gender")) |>
  ggplot(aes(x = Age, y = yhat, color = Gender, group = Gender)) +
  geom_line(linewidth = 1) +
  theme_bw() +
  labs(title = "Two-way PDP: Age x Gender",
       subtitle = "Non-parallel lines indicate an interaction",
       x = "Age", y = "Predicted probability (SUFlike)", color = "Gender")

Code

# Age x ConversationType
pdp::partial(rfmodel3, pred.var = c("Age", "ConversationType")) |>
  ggplot(aes(x = Age, y = yhat, color = ConversationType, group = ConversationType)) +
  geom_line(linewidth = 1) +
  theme_bw() +
  labs(title = "Two-way PDP: Age x ConversationType",
       x = "Age", y = "Predicted probability (SUFlike)", color = "Conv. type")

Interpreting PDPs

Single-predictor PDPs: - A flat line means the predictor has little marginal effect (after controlling for others) - An upward slope/step means higher values → higher predicted probability - A downward slope/step means higher values → lower predicted probability - Remember: this is the average marginal effect. Strong interactions can make the average misleading.

Two-way PDPs: - Parallel colour bands across rows/columns suggest no interaction (the effect of one predictor doesn’t depend on the other) - Non-parallel bands (e.g. one group shows a strong effect while another shows none) suggest an interaction - Use these plots to generate hypotheses about interactions to test explicitly in a regression model

When PDPs can mislead: - When two predictors are strongly correlated, the averaging creates implausible combinations (e.g. averaging over combinations that never occur in real data) - For categorical predictors with very unequal class sizes, minority-class PDPs are based on few data points and are unreliable

Cross-Validation and Train/Test Split

OOB error is a built-in validation for Random Forests, but explicit train/test splitting and k-fold cross-validation provide additional evidence of generalisability.

Simple Train/Test Split

Code

set.seed(2026)
n         <- nrow(rfdata)
train_idx <- sample(seq_len(n), size = floor(0.8 * n))
train_df  <- rfdata[train_idx, ] |> dplyr::select(-rf_pred)
test_df   <- rfdata[-train_idx, ] |> dplyr::select(-rf_pred)

cat("Training:", nrow(train_df), "| Test:", nrow(test_df), "\n")

Training: 1600 | Test: 400

Code

# Fit on training data
set.seed(2026)
rf_train <- randomForest::randomForest(
  SUFlike ~ Age + Gender + ConversationType,
  data  = train_df,
  ntree = 500, mtry = 2
)

# Evaluate on test data
test_pred  <- predict(rf_train, newdata = test_df, type = "class")
test_probs <- predict(rf_train, newdata = test_df, type = "prob")[, 2]

cat("\n=== Test Set Performance ===\n")


=== Test Set Performance ===

Code

caret::confusionMatrix(as.factor(test_pred), as.factor(test_df$SUFlike))

Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 332  68
         1   0   0

               Accuracy : 0.83
                 95% CI : (0.79, 0.866)
    No Information Rate : 0.83
    P-Value [Acc > NIR] : 0.532

                  Kappa : 0

 Mcnemar's Test P-Value : 0.000000000000000448

            Sensitivity : 1.00
            Specificity : 0.00
         Pos Pred Value : 0.83
         Neg Pred Value :  NaN
             Prevalence : 0.83
         Detection Rate : 0.83
   Detection Prevalence : 1.00
      Balanced Accuracy : 0.50

       'Positive' Class : 0

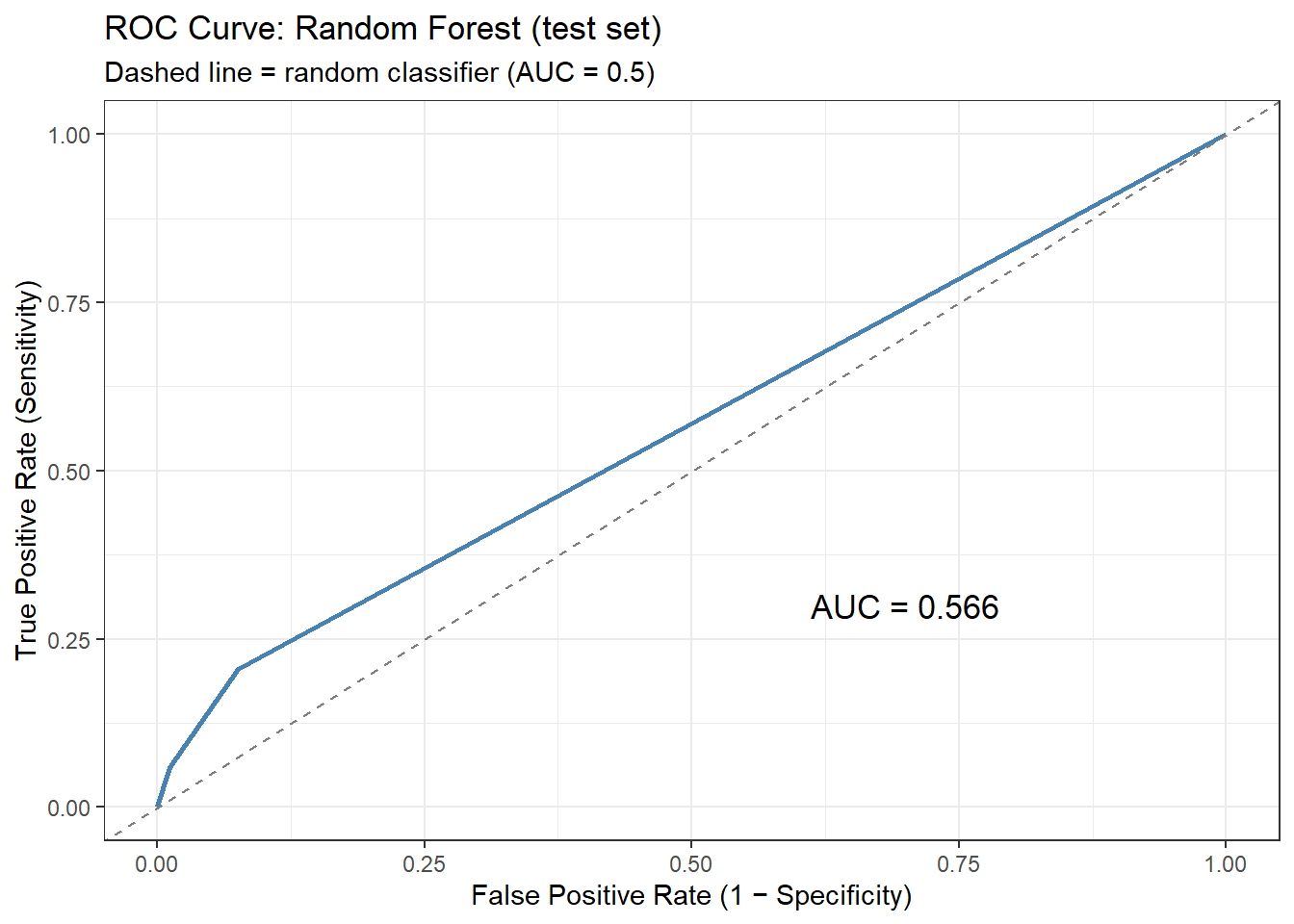

Code

cat("\n=== C-statistic (test set) ===\n")


=== C-statistic (test set) ===

Code

Hmisc::somers2(test_probs, as.numeric(test_df$SUFlike) - 1)

       C      Dxy        n  Missing
  0.5663   0.1325 400.0000   0.0000

k-Fold Cross-Validation

For small datasets, a single train/test split produces variable estimates. k-fold cross-validation provides more stable estimates by rotating the test fold:

Code

set.seed(2026)
rf_cv_data <- rfdata |> dplyr::select(-rf_pred)

ctrl <- caret::trainControl(
  method          = "cv",
  number          = 10,
  classProbs      = TRUE,
  summaryFunction = caret::twoClassSummary,
  savePredictions = "final"
)

# Ensure factor levels are valid R identifiers
levels(rf_cv_data$SUFlike) <- make.names(levels(rf_cv_data$SUFlike))

rf_cv <- caret::train(
  SUFlike ~ Age + Gender + ConversationType,
  data      = rf_cv_data,
  method    = "rf",
  metric    = "ROC",
  trControl = ctrl,
  tuneGrid  = data.frame(mtry = c(1, 2, 3))
)
rf_cv

Random Forest

2000 samples
   3 predictor
   2 classes: 'X0', 'X1'

No pre-processing
Resampling: Cross-Validated (10 fold)
Summary of sample sizes: 1800, 1799, 1801, 1800, 1801, 1799, ...
Resampling results across tuning parameters:

  mtry  ROC     Sens  Spec
  1     0.5286  1     0
  2     0.5398  1     0
  3     0.5385  1     0

ROC was used to select the optimal model using the largest value.
The final value used for the model was mtry = 2.

Code

# Cross-validated performance summary
cat("Best mtry:", rf_cv$bestTune$mtry, "\n")

Best mtry: 2

Code

cat("CV ROC (AUC):", round(max(rf_cv$results$ROC), 3), "\n")

CV ROC (AUC): 0.54

Code

cat("CV Sensitivity:", round(rf_cv$results$Sens[which.max(rf_cv$results$ROC)], 3), "\n")

CV Sensitivity: 1

Code

cat("CV Specificity:", round(rf_cv$results$Spec[which.max(rf_cv$results$ROC)], 3), "\n")

CV Specificity: 0

Comparing OOB, Train, and Test Accuracy

Code

train_pred   <- predict(rf_train, newdata = train_df, type = "class")
train_acc    <- mean(train_pred == train_df$SUFlike)
oob_acc      <- 1 - rf_train$err.rate[nrow(rf_train$err.rate), "OOB"]
test_acc_val <- mean(test_pred == test_df$SUFlike)

data.frame(
  Estimate = c("Training accuracy (optimistic)",
               "OOB accuracy (approx. cross-validated)",
               "Test set accuracy (held-out)"),
  Value    = round(c(train_acc, oob_acc, test_acc_val), 3),
  Note     = c("Upper bound — model has seen this data",
               "Best estimate without a test set",
               "Gold standard if test set is representative")
) |>
  flextable() |>
  flextable::set_table_properties(width = 1, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::fontsize(size = 10) |>
  flextable::set_caption("Model accuracy: training vs. OOB vs. test")

Estimate	Value	Note
Training accuracy (optimistic)	0.828	Upper bound — model has seen this data
OOB accuracy (approx. cross-validated)	0.828	Best estimate without a test set
Test set accuracy (held-out)	0.830	Gold standard if test set is representative

✎ Check Your Understanding — Question 3

A Random Forest analysis reports conditional variable importance values of 0.043 (Age), 0.031 (Gender), and 0.019 (ConversationType). The OOB error rate is 19.2%. A researcher reports: “Age significantly increases the likelihood of speech-unit final like (importance = 0.043).” What is wrong with this statement?

The importance values are too small — only values above 0.05 are meaningful
Variable importance does not indicate direction of effect. A higher importance value for Age means Age is a useful predictor, not that higher age increases the outcome probability. Direction must be established via a regression model or PDP. Additionally, importance values do not produce p-values, so “significantly” is inappropriate here.
The OOB error of 19.2% is too high for the result to be reported
Conditional importance should not be reported — only standard importance is meaningful

Answer

b) Variable importance does not indicate direction of effect

This is one of the most common misreportings of Random Forest results in the linguistics literature. An importance value of 0.043 tells you that permuting Age reduces prediction accuracy by about 4.3 percentage points — Age matters for prediction. It says nothing about whether older speakers are more or less likely to use speech-unit final like. To establish direction, you need either: (a) a partial dependence plot, or (b) a regression coefficient. Neither does a Random Forest produce p-values, so “significantly” implies an inferential test that was not performed.

Boruta Variable Selection

Section Overview

What you will learn: What the Boruta algorithm does and how it differs from a standard Random Forest; the five-step procedure in detail; how to run, inspect, and re-run a Boruta analysis in R; how to interpret the three decision categories; how to handle tentative variables; and how to produce and report Boruta visualisations

What Is Boruta?

Boruta (Kursa, Rudnicki, et al. 2010) is a variable selection wrapper built around Random Forests. The name comes from a demon in Slavic mythology who dwelled in pine forests — an apt metaphor for an algorithm navigating thousands of trees to identify what is genuinely important.

Standard Random Forests rank all predictors by importance but provide no principled threshold between “important” and “noise”. Boruta provides that threshold by constructing shadow features — randomised copies of each predictor that have the same marginal distribution but no relationship with the outcome. Any real predictor that consistently fails to outperform the best shadow feature is classified as uninformative.

Boruta vs. Random Forest

Feature	Random Forest	Boruta
What it builds	One ensemble of trees	Many forests on permuted data
Output	Importance ranking	Confirmed/Tentative/Rejected
Cut-off for noise?	No — arbitrary choice	Yes — shadow feature comparison
Number of models	One forest (many trees)	Hundreds of forests
Primary use	Prediction; importance ranking	Variable selection before regression
Reports direction?	No	No
Handles correlations?	Partially	No

The Boruta Procedure in Detail

Step 1 — Shadow feature creation

For each of the $p$ real predictors, Boruta creates a shadow feature by randomly permuting the predictor’s values. This preserves the marginal distribution but destroys any relationship with the outcome. The extended dataset now has $2p$ predictors: $p$ real and $p$ shadow.

Step 2 — Extended Random Forest

A Random Forest is trained on the full extended dataset. Variable importance (Mean Decrease in Accuracy, expressed as z-scores) is computed for all $2p$ predictors.

Step 3 — Comparison to shadowMax

The maximum importance among all shadow features (shadowMax) is identified. At each iteration, each real predictor’s importance is compared to shadowMax. A predictor that outperforms shadowMax hits a “ZBHF (z-score better than highest feature)” — a mark in its favour.

Step 4 — Statistical decision per predictor

Over $N$ iterations, the algorithm counts how many times each predictor beat shadowMax. A binomial test determines whether this count is significantly above chance: - Confirmed: significantly outperforms shadowMax — genuinely informative - Rejected: significantly underperforms shadowMax — safe to remove - Tentative: neither confirmed nor rejected within maxRuns iterations

Step 5 — Iteration and stopping

After each iteration, rejected predictors are dropped and their shadow features removed. The algorithm stops when all predictors are decided, or after maxRuns (default: 100) iterations — at which point undecided predictors remain tentative.

Advantages of Boruta

Principled cut-off: The shadow-feature comparison provides a data-driven boundary between informative and uninformative predictors, with no need for arbitrary thresholds
Distributional importance: Rather than a single importance estimate, Boruta provides an importance distribution across many iterations — more reliable than a single RF run
Handles many predictors: Particularly useful when you have more predictors than you can reasonably include in a regression model
Direct input to regression: Confirmed predictors can be included in a mixed-effects model with greater confidence; rejected predictors can be excluded

Limitations of Boruta

No direction or magnitude: Like RFs, Boruta tells you that a predictor matters, not how
Multicollinearity: If two predictors are highly correlated and both associated with the outcome, Boruta may confirm both — it cannot identify which is the better predictor
No hierarchical data support: Cannot account for random effects or nested structures
Computation time: Growing hundreds of forests is slow for large datasets with many predictors
Not a substitute for theory: Confirming a predictor does not prove it has a causal or theoretically meaningful relationship with the outcome

Loading the Boruta Data

Code

borutadata <- read.delim(here::here("tutorials/tree/data/ampaus05_statz.txt"),
                         header = TRUE, sep = "\t") |>
  tidyr::drop_na() |>
  dplyr::mutate_if(is.character, factor)

cat("Dimensions:", nrow(borutadata), "rows,", ncol(borutadata), "columns\n")

Dimensions: 301 rows, 15 columns

Code

cat("Outcome distribution:\n")

Outcome distribution:

Code

table(borutadata$really)


  0   1
176 125

Age	Adjective	FileSpeaker	Function	Priming	Gender	Occupation	ConversationType	AudienceSize	very	really	Freq	Gradabilty	SemanticCategory	Emotionality
26-40	good	<S1A-001:1$B>	Attributive	NoPrime	Men	AcademicManagerialProfessionals	SameSex	MultipleInterlocutors	0	0	27.8481	NotGradable	Value	PositiveEmotional
26-40	good	<S1A-001:1$B>	Attributive	NoPrime	Men	AcademicManagerialProfessionals	SameSex	MultipleInterlocutors	0	0	27.8481	NotGradable	Value	PositiveEmotional
26-40	good	<S1A-001:1$B>	Predicative	NoPrime	Men	AcademicManagerialProfessionals	SameSex	MultipleInterlocutors	0	0	27.8481	NotGradable	Value	PositiveEmotional
17-25	nice	<S1A-003:1$B>	Attributive	NoPrime	Men	AcademicManagerialProfessionals	SameSex	Dyad	1	0	7.2928	NotGradable	HumanPropensity	NonEmotional
41-80	other	<S1A-003:1$A>	Predicative	NoPrime	Men	AcademicManagerialProfessionals	SameSex	Dyad	0	0	0.6173	NotGradable	Value	NonEmotional
41-80	good	<S1A-004:1$B>	Attributive	NoPrime	Women	AcademicManagerialProfessionals	MixedSex	MultipleInterlocutors	0	0	20.9876	NotGradable	Value	PositiveEmotional
17-25	other	<S1A-006:1$B>	Attributive	NoPrime	Men	AcademicManagerialProfessionals	MixedSex	MultipleInterlocutors	0	1	4.6409	GradabilityUndetermined	Dimension	NonEmotional
17-25	other	<S1A-006:1$B>	Attributive	Prime	Men	AcademicManagerialProfessionals	MixedSex	MultipleInterlocutors	0	1	0.4420	NotGradable	PhysicalProperty	NonEmotional
17-25	other	<S1A-006:1$B>	Predicative	Prime	Men	AcademicManagerialProfessionals	MixedSex	MultipleInterlocutors	0	1	0.4420	NotGradable	PhysicalProperty	NonEmotional
17-25	nice	<S1A-007:1$A>	Attributive	NoPrime	Women	AcademicManagerialProfessionals	SameSex	Dyad	0	1	7.2928	NotGradable	HumanPropensity	NonEmotional

The outcome variable really indicates use of really as an amplifier in Australian English. Predictors include adjective identity, corpus frequency, semantic class, and syntactic function.

First Boruta Run

Code

set.seed(2019120207)
boruta1 <- Boruta::Boruta(really ~ ., data = borutadata, maxRuns = 100)
print(boruta1)

Boruta performed 99 iterations in 12.12 secs.
 8 attributes confirmed important: Adjective, AudienceSize,
ConversationType, Emotionality, FileSpeaker and 3 more;
 5 attributes confirmed unimportant: Age, Gender, Occupation, Priming,
SemanticCategory;
 1 tentative attributes left: Gradabilty;

The print() output shows the decision for each predictor along with descriptive statistics of the importance distribution across iterations. The three shadow features (shadowMin, shadowMean, shadowMax) provide the comparison baseline.

Code

# Which variables were confirmed?
Boruta::getConfirmedFormula(boruta1)

really ~ Adjective + FileSpeaker + Function + ConversationType +
    AudienceSize + very + Freq + Emotionality
<environment: 0x0000026049c7f900>

Code

# Full decision table
decision_df1 <- data.frame(
  Variable = names(boruta1$finalDecision),
  Decision = as.character(boruta1$finalDecision),
  MeanImp  = round(apply(boruta1$ImpHistory[, names(boruta1$finalDecision)], 2,
                          mean, na.rm = TRUE), 3)
) |>
  dplyr::arrange(Decision, desc(MeanImp))

decision_df1 |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::color(i = ~ Decision == "Confirmed",  color = "steelblue") |>
  flextable::color(i = ~ Decision == "Tentative",  color = "goldenrod") |>
  flextable::color(i = ~ Decision == "Rejected",   color = "firebrick") |>
  flextable::bold(i = ~ Decision == "Confirmed") |>
  flextable::set_caption("Boruta variable decisions (first run)")

Variable	Decision	MeanImp
very	Confirmed	38.335
Freq	Confirmed	11.392
Adjective	Confirmed	9.163
Function	Confirmed	8.242
FileSpeaker	Confirmed	7.014
ConversationType	Confirmed	5.480
AudienceSize	Confirmed	5.027
Emotionality	Confirmed	4.783
Age	Rejected	-Inf
Priming	Rejected	-Inf
Gender	Rejected	-Inf
Occupation	Rejected	-Inf
SemanticCategory	Rejected	-Inf
Gradabilty	Tentative	3.067

Inspecting the Importance History

Code

Boruta::plotImpHistory(boruta1)

The importance history plot shows each variable’s z-score importance at each iteration. Desirable patterns:

Stable lines clearly above shadowMax (green/blue) → Confirmed
Stable lines clearly below shadowMax (red) → Rejected
Lines fluctuating around shadowMax (yellow) → Tentative — more iterations needed

Upward or downward trends suggest the algorithm has not converged. If this occurs, increase maxRuns.

Removing Rejected Variables and Re-Running

Code

# Identify and remove rejected variables
rejected_vars <- names(boruta1$finalDecision)[boruta1$finalDecision == "Rejected"]
cat("Rejected:", paste(rejected_vars, collapse = ", "), "\n")

Rejected: Age, Priming, Gender, Occupation, SemanticCategory

Code

borutadata2 <- borutadata |>
  dplyr::select(-dplyr::all_of(rejected_vars))

# Re-run on reduced dataset
set.seed(2019120208)
boruta2 <- Boruta::Boruta(really ~ ., data = borutadata2, maxRuns = 150)
print(boruta2)

Boruta performed 149 iterations in 17.79 secs.
 8 attributes confirmed important: Adjective, AudienceSize,
ConversationType, Emotionality, FileSpeaker and 3 more;
 No attributes deemed unimportant.
 1 tentative attributes left: Gradabilty;

Code

Boruta::getConfirmedFormula(boruta2)

really ~ Adjective + FileSpeaker + Function + ConversationType +
    AudienceSize + very + Freq + Emotionality
<environment: 0x000002604b950b60>

Handling Tentative Variables

Code

# Option 1: TentativeRoughFix — classifies tentatives by median importance vs shadowMedian
boruta2_fixed <- Boruta::TentativeRoughFix(boruta2)
print(boruta2_fixed)

Boruta performed 149 iterations in 17.79 secs.
Tentatives roughfixed over the last 149 iterations.
 9 attributes confirmed important: Adjective, AudienceSize,
ConversationType, Emotionality, FileSpeaker and 4 more;
 No attributes deemed unimportant.

Code

# Compare decisions before and after fix
data.frame(
  Variable  = names(boruta2$finalDecision),
  Original  = as.character(boruta2$finalDecision),
  AfterFix  = as.character(boruta2_fixed$finalDecision)
) |>
  dplyr::filter(Original != AfterFix | Original == "Tentative") |>
  flextable() |>
  flextable::set_table_properties(width = .55, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Variables reclassified by TentativeRoughFix")

Variable	Original	AfterFix
Gradabilty	Tentative	Confirmed

Four Strategies for Tentative Variables

More iterations: Boruta(formula, data, maxRuns = 500) — more iterations may resolve the ambiguity
TentativeRoughFix(): Classifies based on median importance relative to shadowMedian — fast but less principled
Include conservatively: If theory suggests the variable should matter, include it in the regression model and let the inferential test decide
Exclude conservatively: For purely predictive models, exclude tentatives to keep the model parsimonious

Visualising Boruta Results

Code

# Base R plot — boxplots of importance distributions
plot(boruta2, las = 2, cex.axis = 0.75,
     xlab = "", ylab = "Importance (z-score, Mean Decrease in Accuracy)",
     main = "Boruta importance distributions (2nd run)")

Code

# ggplot2 version
boruta_df <- as.data.frame(boruta2$ImpHistory) |>
  tidyr::pivot_longer(everything(),
                      names_to  = "Variable",
                      values_to = "Importance") |>
  dplyr::filter(!is.nan(Importance)) |>
  dplyr::mutate(
    Decision = dplyr::case_when(
      stringr::str_detect(Variable, "shadow") ~ "Shadow (control)",
      Variable %in% names(boruta2$finalDecision)[boruta2$finalDecision == "Confirmed"] ~ "Confirmed",
      Variable %in% names(boruta2$finalDecision)[boruta2$finalDecision == "Tentative"] ~ "Tentative",
      TRUE ~ "Rejected"
    ),
    Decision = factor(Decision,
                      levels = c("Confirmed", "Tentative", "Rejected", "Shadow (control)"))
  )

ggplot(boruta_df,
       aes(x = reorder(Variable, Importance, FUN = median, na.rm = TRUE),
           y = Importance, fill = Decision)) +
  geom_boxplot(outlier.size = 0.4, na.rm = TRUE) +
  scale_fill_manual(values = c("Confirmed"       = "#2196F3",
                               "Tentative"       = "#FFC107",
                               "Rejected"        = "#F44336",
                               "Shadow (control)"= "#9E9E9E")) +
  coord_flip() +
  theme_bw() +
  theme(legend.position = "top") +
  labs(title = "Boruta variable importance distributions (2nd run)",
       subtitle = "Blue = Confirmed | Yellow = Tentative | Red = Rejected | Grey = Shadow",
       x = "Variable", y = "Importance z-score", fill = "")

✎ Check Your Understanding — Question 4

In the Boruta output, AdjFrequency is Confirmed, Function is Tentative, and SpeakerID is Rejected. A researcher concludes that SpeakerID has no effect on amplifier choice. Is this interpretation correct?

Yes — Rejected is a definitive proof that the variable has zero effect
No — Rejected means SpeakerID’s importance did not consistently outperform the best shadow feature in these data and conditions. It may still have an effect, may act through interactions Boruta misses, or may be better modelled as a random effect — which Boruta cannot evaluate. The rejection should prompt consideration of whether Speaker-level variation is better handled as a random intercept in a mixed-effects model.
Yes — any predictor with more than 53 levels is automatically rejected by Boruta
No — Boruta never rejects variables; it only Confirms or classifies as Tentative

Answer

b) No — Rejected means the variable’s importance did not outperform shadow features under these conditions

Rejected is a data-driven label, not a logical proof of zero effect. Reasons for caution:

SpeakerID is a grouping/random-effects variable; Boruta evaluates it as a fixed predictor, which is inappropriate
With many levels, SpeakerID may be approaching the 53-level factor limit
Boruta may miss effects that operate only through interactions
The correct next step is to exclude SpeakerID as a fixed predictor (as Boruta suggests) but include it as a random intercept in a mixed-effects logistic regression

Model Evaluation

Section Overview

What you will learn: All the metrics used to evaluate binary classification models — accuracy, sensitivity, specificity, kappa, C-statistic, Somers’ D, and ROC curves — what each measures, how to compute it, and how to interpret it correctly for linguistic data

Why Rigorous Evaluation Matters

Evaluating a model on the same data it was trained on is optimistic — the model has already adapted to the training sample’s idiosyncrasies. Rigorous evaluation requires held-out data (train/test split or cross-validation) and a full set of metrics. A single accuracy figure is rarely sufficient; the relationship between sensitivity, specificity, and the class distribution determines what accuracy actually means.

Confusion Matrix Metrics

For a binary classification outcome, every prediction falls into one of four cells:

	Predicted: Positive	Predicted: Negative
Observed: Positive	True Positive (TP)	False Negative (FN) — Type II error
Observed: Negative	False Positive (FP) — Type I error	True Negative (TN)

Metric	Formula	Interpretation
Accuracy	(TP+TN)/N	Overall proportion correct
No Information Rate (NIR)	max(P,N)/N	Accuracy from always predicting majority class
Sensitivity (Recall)	TP/(TP+FN)	Proportion of true positives correctly identified
Specificity	TN/(TN+FP)	Proportion of true negatives correctly identified
Positive Predictive Value (Precision)	TP/(TP+FP)	Proportion of positive predictions that are correct
Negative Predictive Value	TN/(TN+FN)	Proportion of negative predictions that are correct
F1 Score	2×(Prec×Rec)/(Prec+Rec)	Harmonic mean of precision and recall
Cohen's Kappa	(Obs-Exp)/(1-Exp)	Accuracy corrected for chance

C-Statistic and ROC Curve

The Receiver Operating Characteristic (ROC) curve plots Sensitivity (True Positive Rate) against 1 − Specificity (False Positive Rate) across all possible probability thresholds. The Area Under the Curve (AUC) — equivalent to the C-statistic — summarises discrimination ability across all thresholds.

Code

# Refit cforest for evaluation
rfdata_eval <- read.delim(here::here("tutorials/tree/data/mblrdata.txt"),
                          header = TRUE, sep = "\t") |>
  dplyr::mutate_if(is.character, factor) |>
  dplyr::mutate(SUFlike = as.factor(SUFlike)) |>   # ensure classification outcome
  dplyr::select(-ID)

set.seed(2026)
train_idx  <- sample(seq_len(nrow(rfdata_eval)), floor(0.8 * nrow(rfdata_eval)))
train_eval <- rfdata_eval[train_idx, ]
test_eval  <- rfdata_eval[-train_idx, ]

set.seed(2026)
rf_eval <- randomForest::randomForest(
  SUFlike ~ Age + Gender + ConversationType,
  data = train_eval, ntree = 500, mtry = 2
)

# Predicted probabilities on test set
test_prob_yes <- predict(rf_eval, newdata = test_eval, type = "prob")[, 2]
test_true     <- as.numeric(test_eval$SUFlike) - 1  # 0/1

# C-statistic and Somers' D
eval_stats <- Hmisc::somers2(test_prob_yes, test_true)
cat("C-statistic:", round(eval_stats["C"], 3), "\n")

C-statistic: 0.566

Code

cat("Somers' Dxy:", round(eval_stats["Dxy"], 3), "\n")

Somers' Dxy: 0.133

Code

# Build ROC curve data manually
roc_df <- purrr::map_dfr(seq(0, 1, by = 0.01), function(thresh) {
  pred  <- ifelse(test_prob_yes >= thresh, 1, 0)
  tp    <- sum(pred == 1 & test_true == 1)
  fp    <- sum(pred == 1 & test_true == 0)
  tn    <- sum(pred == 0 & test_true == 0)
  fn_   <- sum(pred == 0 & test_true == 1)
  sens  <- if ((tp + fn_) > 0) tp / (tp + fn_) else NA_real_
  spec  <- if ((tn + fp) > 0) tn / (tn + fp) else NA_real_
  data.frame(threshold = thresh, sensitivity = sens, specificity = spec,
             fpr = 1 - spec)
}) |> dplyr::filter(!is.na(sensitivity))

ggplot(roc_df, aes(x = fpr, y = sensitivity)) +
  geom_line(color = "steelblue", linewidth = 1) +
  geom_abline(slope = 1, intercept = 0, linetype = "dashed", color = "grey50") +
  annotate("text", x = 0.7, y = 0.3,
           label = paste0("AUC = ", round(eval_stats["C"], 3)), size = 4.5) +
  theme_bw() +
  labs(title = "ROC Curve: Random Forest (test set)",
       subtitle = "Dashed line = random classifier (AUC = 0.5)",
       x = "False Positive Rate (1 − Specificity)",
       y = "True Positive Rate (Sensitivity)")

Interpreting the ROC Curve

The ROC curve shows the trade-off between sensitivity and specificity across all possible classification thresholds:

A curve that hugs the top-left corner indicates excellent discrimination (high AUC)
The diagonal line (AUC = 0.5) represents a random classifier
The default classification threshold (0.5) corresponds to one point on the curve

For linguistic data, the default 0.5 threshold may not be optimal — especially with unbalanced classes. The ROC curve lets you visualise the full range of trade-offs and choose a threshold that best fits your research priorities (e.g. maximising sensitivity for rare constructions vs. maximising overall accuracy).

AUC interpretation
AUC	Interpretation
0.50	No better than chance
0.60–0.70	Fair
0.70–0.80	Acceptable
0.80–0.90	Good
> 0.90	Excellent

Full Evaluation Summary

Code

# Confusion matrix on test set
test_pred_class <- predict(rf_eval, newdata = test_eval, type = "class")
cm <- caret::confusionMatrix(as.factor(test_pred_class), as.factor(test_eval$SUFlike))
cm

Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 332  68
         1   0   0

               Accuracy : 0.83
                 95% CI : (0.79, 0.866)
    No Information Rate : 0.83
    P-Value [Acc > NIR] : 0.532

                  Kappa : 0

 Mcnemar's Test P-Value : 0.000000000000000448

            Sensitivity : 1.00
            Specificity : 0.00
         Pos Pred Value : 0.83
         Neg Pred Value :  NaN
             Prevalence : 0.83
         Detection Rate : 0.83
   Detection Prevalence : 1.00
      Balanced Accuracy : 0.50

       'Positive' Class : 0

Code

# OOB accuracy
oob_acc_eval <- 1 - rf_eval$err.rate[nrow(rf_eval$err.rate), "OOB"]

# Summary table
data.frame(
  Metric   = c("Training accuracy", "OOB accuracy",
               "Test accuracy", "Test AUC (C)", "Test Somers' Dxy",
               "Test Sensitivity", "Test Specificity", "Test Kappa"),
  Value    = round(c(
    mean(predict(rf_eval, type = "class") == train_eval$SUFlike),
    oob_acc_eval,
    cm$overall["Accuracy"],
    eval_stats["C"],
    eval_stats["Dxy"],
    cm$byClass["Sensitivity"],
    cm$byClass["Specificity"],
    cm$overall["Kappa"]
  ), 3)
) |>
  flextable() |>
  flextable::set_table_properties(width = .5, layout = "autofit") |>
  flextable::theme_zebra() |>
  flextable::set_caption("Comprehensive model evaluation summary")

Metric	Value
Training accuracy	0.828
OOB accuracy	0.828
Test accuracy	0.830
Test AUC (C)	0.566
Test Somers' Dxy	0.133
Test Sensitivity	1.000
Test Specificity	0.000
Test Kappa	0.000

✎ Check Your Understanding — Question 5

A Random Forest for predicting discourse like usage achieves 80% test-set accuracy. The No Information Rate is 78%. The AUC is 0.71. A reviewer asks whether the model’s discrimination is “good.” How would you respond?

Yes — 80% accuracy is well above 78%, indicating strong predictive performance
The accuracy improvement over baseline is only 2 percentage points, which is marginal. The AUC of 0.71 falls in the “acceptable” range — the model discriminates better than chance but is not a strong predictor. A complete evaluation should report: (1) accuracy vs. NIR with p-value; (2) AUC with the “acceptable” interpretation; (3) sensitivity and specificity to characterise which type of error the model makes more.
No — AUC below 0.80 means the model is unusable
Yes — AUC of 0.71 is equivalent to 71% accuracy, which is good

Answer

b) The accuracy gain is marginal; AUC = 0.71 is acceptable but not strong

Neither accuracy nor AUC alone tells the full story. The accuracy improvement of 2 points over the NIR is small; depending on sample size, this may not even be statistically significant (confusionMatrix() provides this test). The AUC of 0.71 means the model correctly ranks a random like-user above a random non-user about 71% of the time — better than chance but not a strong discriminator. A complete report would present: accuracy vs. NIR (with p-value), AUC, sensitivity, specificity, and kappa. Option (d) is wrong: AUC is not equivalent to accuracy — it is a threshold-independent rank-correlation measure.

Choosing Between Methods

Section Overview

What you will learn: When to use each of the three methods; a comprehensive comparison table; and a recommended four-step analytical workflow integrating tree-based methods with regression modelling

Comparison Table

Dimension	Conditional Inference Tree	Random Forest	Boruta
What it builds	One tree	100–1,000 trees	Hundreds of forests
Output	Visual tree with p-values	Importance ranking + OOB error	Confirmed/Tentative/Rejected
Provides direction?	Partially (majority class per leaf)	No (PDPs needed)	No
Detects interactions?	Yes — visible in tree structure	Yes — captured in importance	Partially
Overfitting risk	High	Low	Low
Built-in variable selection?	Yes — significance threshold	No	Yes — shadow features
Works with small N?	Yes (N ≥ ~50)	Moderate	Moderate
Factor level limit	53	53	53
Computation	Fast	Moderate	Slow
Ideal use case	Visual exploration; presentations; teaching	Prediction; importance ranking; missing-value imputation	Variable selection before regression modelling

Recommended Analytical Workflow

For most linguistic classification or prediction tasks, the following four-step workflow integrates the strengths of each method:

Step 1 — Boruta (variable selection) Run Boruta to identify which predictors show genuine evidence of association with the outcome. Use confirmed predictors as the fixed-effects structure of a subsequent regression model. Treat tentatives with caution (theory-guided decision). Remove rejected predictors from subsequent steps.

Step 2 — Random Forest (importance and prediction) Fit a Random Forest on the Boruta-selected predictors. Report OOB error and C-statistic as model fit. Use conditional = TRUE for importance when predictors may correlate. Generate PDPs to characterise the direction and shape of important predictor effects.

Step 3 — CIT (visualisation) Fit a CIT on the same predictor set for a publication-quality visual summary. Use ggparty for polished output. The CIT is the most interpretable and presentation-friendly product of the analysis.

Step 4 — Mixed-Effects Regression (inference) Use the Boruta-confirmed predictors in a mixed-effects logistic regression. This is the inferential step: it provides estimates of direction, magnitude, standard errors, and p-values. Tree-based methods motivate the predictor set; regression provides the inference.

Tree-Based Methods Do Not Replace Regression

A common misuse of tree-based methods in published linguistic research is treating the CIT or RF as the final analytical step and drawing inferential conclusions from importance values or leaf-node distributions. Tree-based methods do not provide standard errors, confidence intervals, or effect direction. They are powerful exploratory and variable-selection tools that complement — but do not replace — regression-based inference (Gries 2021).

✎ Check Your Understanding — Question 6

A researcher uses a CIT to analyse discourse like and reports: “The CIT shows that Age is the most important predictor of discourse like usage (root node, p < .001). Among young speakers, Status further differentiates users from non-users (Node 2, p = .032). These results suggest that being young and having high status significantly increases the probability of discourse like usage.” What is appropriate in this report, and what needs to be revised?

The entire report is appropriate — CIT output supports all these claims
Reporting the root node predictor and its p-value is appropriate. The claim about “probability” of discourse like being significantly increased is problematic: CIT leaf-node distributions show the proportion of users in each group, but do not quantify effect size, and the p-values at nodes are test statistics for the split selection, not for the relationship between predictor levels and outcome probability. For quantified effect sizes and direction, regression coefficients are needed.
The report should not use p-values from a CIT at all — CIT output cannot be reported
The report is correct but should add that the model has 100% accuracy

Answer

b) Reporting split variables and node p-values is appropriate; claiming “significantly increases probability” is an overstatement without regression evidence

What is appropriate: noting which predictor forms the root (indicating its strongest association), reporting node-level p-values as evidence for the statistical reliability of each split, and describing the direction of the pattern (young high-status speakers show higher proportions of like-users in the leaf node). What needs revision: the phrase “significantly increases the probability” implies a regression coefficient with a standard error and p-value from an inferential test. A CIT node p-value tests whether the split is justified — it does not quantify the magnitude of the effect or provide an inferential test for the probability difference. For that, a logistic regression model is required.

Citation and Session Info

Schweinberger, Martin. 2026. Tree-Based Models in R. Brisbane: The Language Technology and Data Analysis Laboratory (LADAL). url: https://ladal.edu.au/tutorials/tree/tree.html (Version 2026.02.24).

@manual{schweinberger2026tree,
  author       = {Schweinberger, Martin},
  title        = {Tree-Based Models in R},
  note         = {https://ladal.edu.au/tutorials/tree/tree.html},
  year         = {2026},
  organization = {The Language Technology and Data Analysis Laboratory (LADAL)},
  address      = {Brisbane},
  edition      = {2026.02.24}
}

Code

sessionInfo()

R version 4.4.2 (2024-10-31 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26200)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: Australia/Brisbane
tzcode source: internal

attached base packages:
[1] stats4    grid      stats     graphics  grDevices datasets  utils
[8] methods   base

other attached packages:
 [1] here_1.0.2           flextable_0.9.11     vip_0.4.1
 [4] RCurl_1.98-1.16      pdp_0.8.2            randomForest_4.7-1.2
 [7] party_1.3-18         strucchange_1.5-4    sandwich_3.1-1
[10] zoo_1.8-13           modeltools_0.2-23    Hmisc_5.2-2
[13] Gmisc_3.0.3          htmlTable_2.4.3      Rcpp_1.1.1
[16] ggparty_1.0.0        partykit_1.2-23      mvtnorm_1.3-3
[19] libcoin_1.0-10       lubridate_1.9.4      forcats_1.0.0
[22] stringr_1.5.1        purrr_1.0.4          readr_2.1.5
[25] tidyr_1.3.2          tibble_3.2.1         tidyverse_2.0.0
[28] cowplot_1.2.0        caret_7.0-1          lattice_0.22-6
[31] ggplot2_4.0.2        Boruta_8.0.0         dplyr_1.2.0
[34] tree_1.0-44

loaded via a namespace (and not attached):
  [1] RColorBrewer_1.1-3      rstudioapi_0.17.1       jsonlite_1.9.0
  [4] magrittr_2.0.3          TH.data_1.1-3           farver_2.1.2
  [7] rmarkdown_2.30          ragg_1.3.3              vctrs_0.7.1
 [10] askpass_1.2.1           base64enc_0.1-6         htmltools_0.5.9
 [13] Formula_1.2-5           pROC_1.18.5             parallelly_1.42.0
 [16] htmlwidgets_1.6.4       plyr_1.8.9              uuid_1.2-1
 [19] lifecycle_1.0.5         iterators_1.0.14        pkgconfig_2.0.3
 [22] Matrix_1.7-2            R6_2.6.1                fastmap_1.2.0
 [25] future_1.34.0           digest_0.6.39           colorspace_2.1-1
 [28] forestplot_3.1.6        patchwork_1.3.0         rprojroot_2.1.1
 [31] textshaping_1.0.0       labeling_0.4.3          timechange_0.3.0
 [34] abind_1.4-8             compiler_4.4.2          proxy_0.4-27
 [37] fontquiver_0.2.1        withr_3.0.2             S7_0.2.1
 [40] backports_1.5.0         MASS_7.3-61             lava_1.8.1
 [43] openssl_2.3.2           ModelMetrics_1.2.2.2    tools_4.4.2
 [46] ranger_0.17.0           foreign_0.8-87          zip_2.3.2
 [49] future.apply_1.11.3     nnet_7.3-19             glue_1.8.0
 [52] nlme_3.1-166            inum_1.0-5              checkmate_2.3.2
 [55] cluster_2.1.6           reshape2_1.4.4          generics_0.1.3
 [58] recipes_1.1.1           gtable_0.3.6            tzdb_0.4.0
 [61] class_7.3-22            data.table_1.17.0       hms_1.1.3
 [64] xml2_1.3.6              coin_1.4-3              foreach_1.5.2
 [67] pillar_1.10.1           splines_4.4.2           renv_1.1.7
 [70] survival_3.7-0          tidyselect_1.2.1        fontLiberation_0.1.0
 [73] knitr_1.51              fontBitstreamVera_0.1.1 gridExtra_2.3
 [76] xfun_0.56               hardhat_1.4.1           timeDate_4041.110
 [79] matrixStats_1.5.0       stringi_1.8.4           yaml_2.3.10
 [82] evaluate_1.0.3          codetools_0.2-20        officer_0.7.3
 [85] gdtools_0.5.0           cli_3.6.4               rpart_4.1.23
 [88] systemfonts_1.3.1       globals_0.16.3          XML_3.99-0.18
 [91] parallel_4.4.2          gower_1.0.2             bitops_1.0-9
 [94] listenv_0.9.1           ipred_0.9-15            e1071_1.7-16
 [97] scales_1.4.0            prodlim_2024.06.25      rlang_1.1.7
[100] multcomp_1.4-28

AI Transparency Statement

This tutorial was written with the assistance of Claude (claude.ai), a large language model created by Anthropic. Claude was used to substantially expand and restructure a shorter existing LADAL tutorial on tree-based models in R. Contributions include: the expanded conceptual introduction with comparison tables; the CART section with full Gini worked examples, numeric-variable threshold calculation, pruning with cv.tree, and confusion matrix guidance; the CIT section with significance-threshold adjustment examples, programmatic information extraction, and both ggparty visualisation variants; the Random Forest section with bias–variance explanation, OOB error trace plots, tuneRF tuning, k-fold cross-validation via caret, all partial dependence plots (single and two-way), and the accuracy comparison table; the Boruta section with the five-step procedure, the RF vs. Boruta comparison table, TentativeRoughFix demonstration, and the ggplot2 Boruta importance visualisation; the Model Evaluation section with the metrics reference table, ROC curve code, and comprehensive evaluation summary; the Comparison section with the full comparison table and four-step workflow; and all six check-in questions with detailed explanations. All content was reviewed and approved by Martin Schweinberger, who takes full responsibility for its accuracy.

Back to LADAL home

References

Breiman, Leo. 2001a. “Random Forests.” Machine Learning 45 (1): 5–32. https://link.springer.com/article/10.1023/A:1010933404324.

———. 2001b. “Statistical Modeling: The Two Cultures.” Statistical Science 16: 199–231. https://projecteuclid.org/euclid.ss/1009213726.

Gries, Stefan Th. 2021. Statistics for Linguistics Using r: A Practical Introduction. Berlin & New York: Mouton de Gruyter.

Hothorn, Torsten, Kurt Hornik, and Achim Zeileis. 2006. “Unbiased Recursive Partitioning: A Conditional Inference Framework.” Journal of Computational and Graphical Statistics 15 (3): 651–74.

Kursa, Miron B, Witold R Rudnicki, et al. 2010. “Feature Selection with the Boruta Package.” Journal of Statistical Software 36 (11): 1–13.

Prasad, Anantha M, Louis R Iverson, and Andy Liaw. 2006. “Newer Classification and Regression Tree Techniques: Bagging and Random Forests for Ecological Prediction.” Ecosystems 9 (2): 181–99. https://doi.org/https://doi.org/10.1007/s10021-005-0054-1.

Strobl, Carolin, James Malley, and Gerhard Tutz. 2009. “An Introduction to Recursive Partitioning: Rationale,application and Characteristics of Classification and Regression Trees, Bagging and Random Forests.” Psychological Methods 14 (4): 323–48. https://doi.org/https://doi.org/10.1037/a0016973.

Wright, Marvin N., Andreas Ziegler, and Inke R. König. 2016. “Do Little Interactions Get Lost in Dark Random Forests?” 17 (145, 1). https://doi.org/https://doi.org/10.1186/s12859-016-0995-8.

Introduction

Tree-Based Models: Concepts and Context

What Are Tree-Based Models?

Tree-Based Models vs. Regression Models

The Three Methods and When to Use Them

Advantages of Tree-Based Methods

Limitations and Warnings

Setup

Installing Packages

Loading Packages

Classification and Regression Trees

How Decision Trees Work

The Gini Impurity Criterion

Worked Example: Selecting the Root Node

Visualising the Partial Tree After Root Split

Continuing the Split: Within Young Speakers

Splitting Numeric Variables

Pruning a Decision Tree

Evaluating Decision Tree Accuracy

Conditional Inference Trees

CITs vs. CARTs

Fitting a Conditional Inference Tree

Interpreting the CIT Output

Extracting CIT Information Programmatically

Adjusting the Significance Threshold

Publication-Quality CIT with ggparty

Evaluating CIT Accuracy

Limitations of Single Trees

Random Forests

How Random Forests Work

Bootstrapping

Random Variable Selection

Prediction by Majority Vote

Random Forests with party::cforest()

Conditional Variable Importance from cforest

Random Forests with randomForest::randomForest()

Tuning mtry

Evaluating randomForest Performance

Variable Importance Visualisation

Partial Dependence Plots

Two-Way Interaction PDPs

Cross-Validation and Train/Test Split

Simple Train/Test Split

k-Fold Cross-Validation

Comparing OOB, Train, and Test Accuracy

Boruta Variable Selection

What Is Boruta?

Boruta vs. Random Forest

The Boruta Procedure in Detail

Advantages of Boruta

Limitations of Boruta

Loading the Boruta Data

First Boruta Run

Inspecting the Importance History

Removing Rejected Variables and Re-Running

Handling Tentative Variables

Visualising Boruta Results

Model Evaluation

Why Rigorous Evaluation Matters

Confusion Matrix Metrics

C-Statistic and ROC Curve

Full Evaluation Summary

Choosing Between Methods

Comparison Table

Recommended Analytical Workflow

Citation and Session Info

References

Publication-Quality CIT with `ggparty`

Random Forests with `party::cforest()`

Conditional Variable Importance from `cforest`

Random Forests with `randomForest::randomForest()`

Tuning `mtry`

Evaluating `randomForest` Performance
